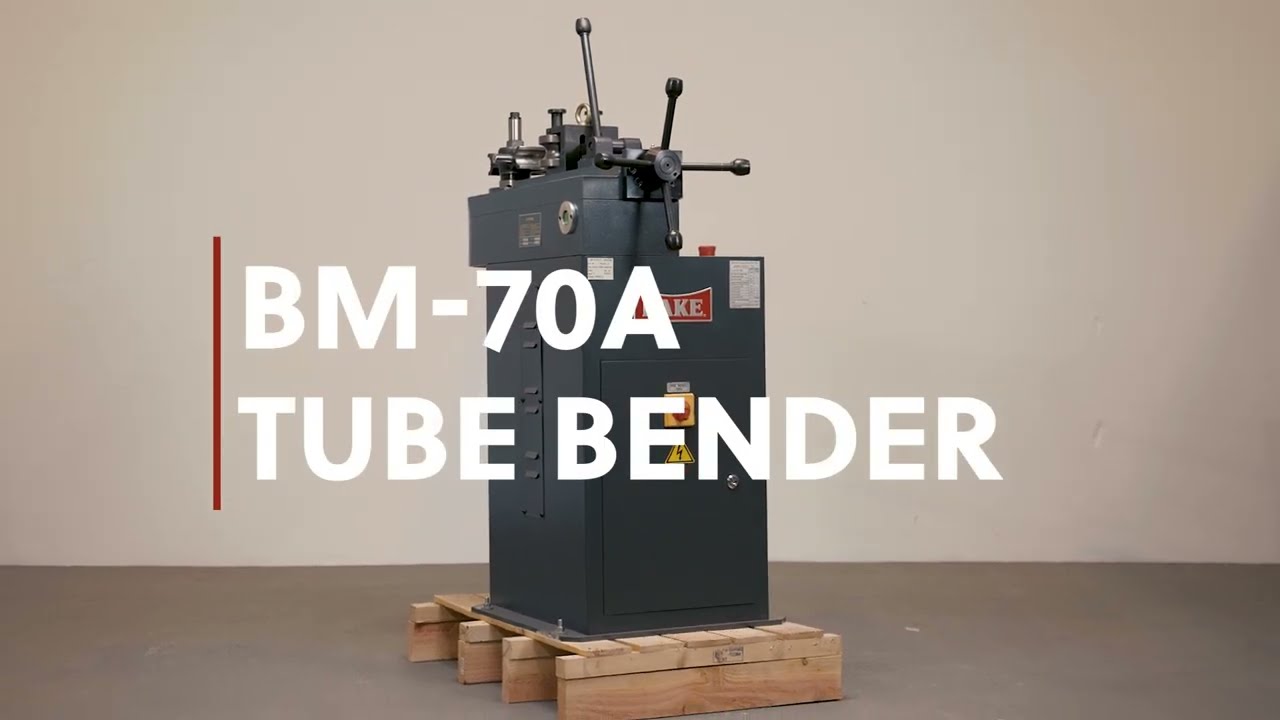

Dake Model BM-70A 220V Three Phase ½”-2” Digital Control Hydraulic Tube Bender 962101

Description

Cast iron body tube bender equipped with a 3HP, 220V, 3-Phase motor. User friendly digital control panel with microprocessor, allowing users to set the required bending angles. Capable of storing 50 programs with 9 bends per program, electric brake, and automatic return to stop. Designed to bend tube and pipe with constant bending radius without deformation.

Features

• Cast iron body for rigidity tube bender
• Powerful 3HP 220V Three Phase motor
• Digital Control Panel with microprocessor, allowing users to set the required bending angles
• Capable of storing 50 programs with 9 bends per program

Standard Equipment

• 1” Die Set

Specifications

• Machine Type: Tube Bending Machine
• Min/Max Material Diameter: ½” – 2”
• Max Bend: 180° (infinitely variable)
• Standard Centerline Bending Radius: .12” or .15”
• Controls: Digital control panel with microprocessor and push button switch with E-stop
• Program Capacity: 50 programs with 9 bends per program
• Operation: 2 handed operation non-adjustable
• Die Set: easy mount for fast change over
• Motor: 3HP
• Electrical Requirements: 220V Three Phase
• Machine Dims: 31.89” x 20.28” x 43.31”
• Approx Weight: 463 lbs

Capacities (without mandrel)

• Hard/soft copper pipe, annealed brass pipes
  • Diameter: ≤ 2.5”
  • Thickness: ≤ 0.15”
• Electrical conduit
  • Diameter: ≤ 2.36”
  • Thickness: ≤ 0.08”
• Stainless Steel AISI 304/316
  • Diameter: ≤ 2.36”
  • Thickness: ≤ 0.12”
• Hydraulic steel pipe ST 35.4 for hydraulic plants
  • Diameter: ≤ 2.36”
  • Thickness: ≤ 0.15”
• Furniture Tube
  • Diameter: ≤ 2.36”
  • Thickness: ≤ 0.12”
• PE Boiler Pipes
  • Diameter: ≤ 2.36”
  • Thickness: ≤ 0.15”
• Gas pipes UNI 5745
  • Diameter: ≤ 2”
  • Thickness: standard

Optional Add-Ons

• ½” G (OD 0.838”) Die Set (sku 716887)
• ¾” G (OD 1.059”) Die Set (sku 716888)
• 1” G (OD 1.326”) Die Set (sku 716886)
• 1¼” G (OD 1.66”) Die Set (sku 716890)
• ¾” W (OD 0.787”) Die Set (sku 716879)
• 1¼” W (OD 1.25”) Die Set (sku 716880)
• 2” W (OD 2.0”) Die Set (sku 716889)
