Carell Industrial Eagle Bending 220V Three Phase 2½” Capacity Hydraulic CNC Direct Radius Input Roll Bender BA50-CNC

Description

The Eagle BA Series full CNC roll bending machines are hydraulic CNC Roll Benders designed for rapid, one pass production rolling or coiling with maximum precision & repeatability.

Using Direct Radius Input from the BA20 for small parts to the BA55 for larger profiles, each unit is standard with full CNC/PC controls, direct radius input, on screen CAD type color graphic part layout, drop-down guided menus, precision MOOG servo-valves, lifetime frame warranties, variable speed movements, unlimited program storage, vertical & horizontal operation and much more!

Features

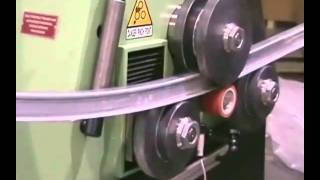

• BA Series Roll Benders can product parts in one pass using the hydraulic powered bending roll(s) to create the desired radius with utmost precision. BA20, BA35, and BA50 are initial pinch designs. All models have all 3 rolls powered in rotation. All can be used in full automatic, semi-automatic, or in manual modes.
• Create programs easily using multiple methods via the HMI Graphic Interface. Input part length, radius, bend degree, arc length, or other information and the CNC automatically creates the 2D graphics and the program. The machine calculates and interpolates blends and variable radius bends. Eagle’s unique mirror image and repeat shape programming features can further reduce programming time by over 75%! All movements are variable speed via digital interfaces and drivers.
• Machines use high precision MOOG servo-valves in a closed feedback loop for immediate response with variable speed micrometric movements. USB 2.0 and RJ-45 ports add flexibility with peripherals and information storage
• Units are also standard with; air-oil heat exchangers to maintain constant oil temperature for higher precision rolling, vertical/horizontal operation, materials library, self-diagnostic software, industrial dust & moisture proof color LCD HMI screen, automatic timed energy saving sleep mode, integrated internal hydraulic unit on slide out rack for ease of access, raspberry micro PC using LINUX platform & 64 bit PLC, pre-loaded programs such as arches, parabolas, spirals, ovals can be quickly modified to match your shape to further reduce programming time, short shafts to accept dedicated optional tooling will eliminate shaft tip interference common to most all other machine brands, and other versatile, leading edge technology and benefits. A wireless keyboard on retractable try, wireless mouse, and built in air compressor for pneumatic actuated encoder mount are standard on all BA models
• BA Series machines offer the highest repeat precision available in an affordable package designed for high volume production environment. Safety features include 24VAC low voltage controls, Dual E-stop palm buttons, flush electrical panels, mobile operator console with trailing lead, ‘anti-pinch’ mill scale covers, and large format pushbuttons and touch screen LED monitors
• Renowned brand name components are non-proprietary and available worldwide

Standard Equipment

• Adjustable Lateral Material Guides
• Service Tools
• Illustrated Manual

Specifications

• Driven Rolls: 3
• Rolling Speed: 0-30 fpm
• Working Plane: Vertical/Horizontal
• Repeat Control: Auto-Repeat
• Shaft Diameters: 2"
• Roll Diameters: 7½”
• Drive Motor: 1.8 kW
• Pump Motor: 4.0 kW
• Working Height: 39"
• Forming Rolls Adjust: Hydraulic
• Forming Roll Travel: 4.133"
• Forming Roll Speed: 0-1.02"/sec
• Length Data Input: SI Units (mm)
• Cylinder Thrust: 13.5 metric tons
• Floor Area: 36" x 58"
  • Control Stand: 26" x 23"
• Electrical Requirements: 220V Three Phase
• Dimensions: 69” x 56” x 74”
• Weight: 1,968 lbs

Capacities (tooling as optional add-on)

• Flats, Hard
  • Max Size: 2¾” x ½”
  • Min ID: Ø20”
• Flats, Easy
  • Max Size: 4“ x 5/8”
  • Min ID: Ø14”
• Square Bar
  • Max Size: 1½”
  • Min ID: Ø24”
• Angle, Leg-Out
  • Max Size: 2¼” x ¼”
  • Min ID: Ø30”
• Angle, Leg-In
  • Max Size:  2¼” x ¼”
  • Min ID: Ø38”
• Tee, Leg-Out
  • Max Size: 2½”
  • Min ID: Ø20”
• Tee, Leg-In
  • Max Size: 2½”
  • Min ID: Ø20”
• C, Legs-Out
  • Max Size: 3¾”
  • Min ID: Ø26”
• C, Legs-In
  • Max Size: 3¾”
  • Min ID: Ø30”
• Round Bar
  • Max Size: 1½”
  • Min ID: Ø24”
• Pipe
  • Max Size: 2”
  • Min ID: Ø36”
• Round Tube
  • Max Size: 2½” x 10Ga
  • Min ID: Ø34”
• Square Tube
  • Max Size: 2¼” x 1/8”
  • Min ID: Ø50”
• Rectangular Tube
  • Max Size: 2¾” x 1½” x 1/8”

Optional Add-Ons

• Rolls for Tube, Pipe, Round and Square
• Custom Rolls for Extrusions & Special Sections
• Special Voltages upon Request
