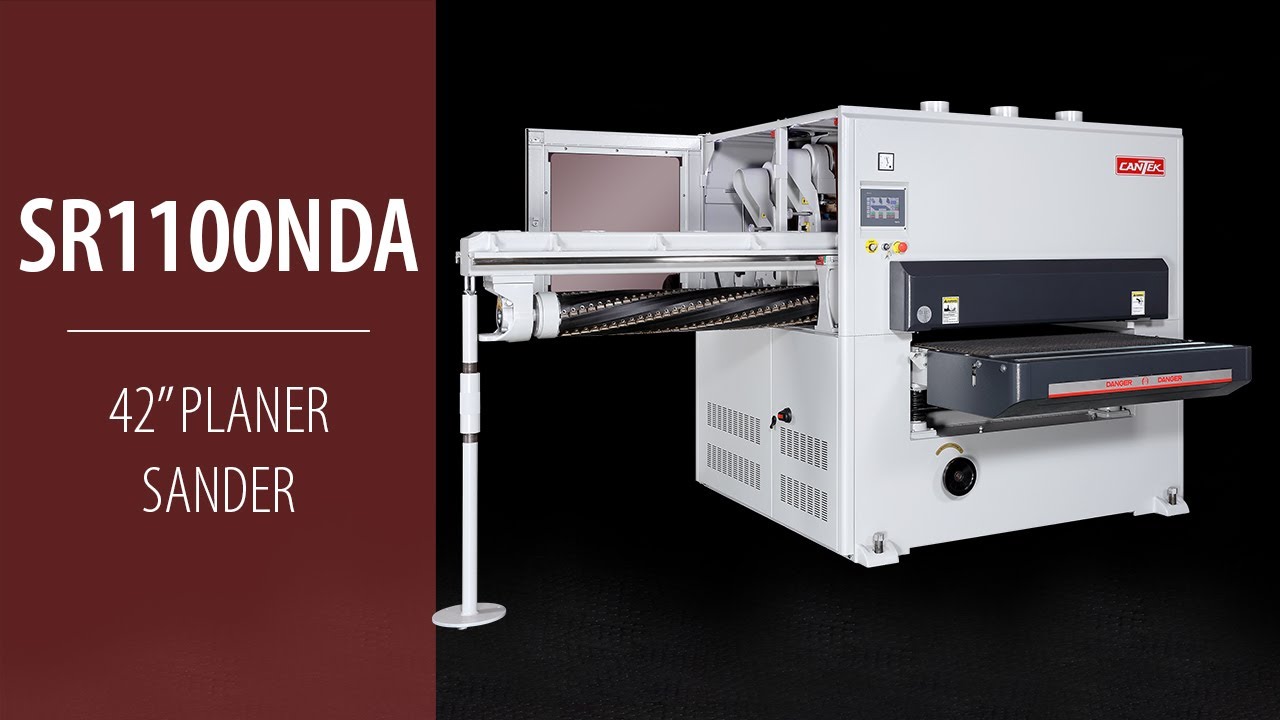

Cantek SRN-Series 460V Three Phase Heavy-Duty 43”x75” Widebelt Planer-Sander with Variable Feed Speed SR1100NDA

Description

Introducing the Cantek SR1100NDA 42” Heavy-Duty wide belt planer sander, engineered for outstanding performance and durability. This versatile sander allows you to plane and sand in a single pass, cutting down on valuable production time by reducing the number of passes required to calibrate and final sand your material. The solid steel 7” helical insert knife cutterhead is powered by a 40HP motor making it capable of planing full width boards with ease. This cutterhead produces a smooth finish with less load and noise than traditional straight planer heads. The second head is a 10” contact drum which can further calibrate your material to its desired thickness prior to final sanding. The third head is a combination unit with contact drum and adjustable platen designed for both calibration and final sanding with finer grits. This setup ensures efficient material removal and impeccable sanding results, with an optimizing workflow.

Why Cantek SR1100NDA 42” Wide Belt Planer Sander?

• Versatile Design: the combination of a planer head and two sanding units reduces the number of passes required to dimension and final sand your components saving both time and money
• Heavy Duty Construction: robust thick welded steel machine frame and industrial sanding units offer increased efficiency while enhancing machine longevity
• Powerful Motors: equipped with high-performance cutterhead and sanding motors for efficient stock removal and precise calibration
• Enhanced Throughput: the powerful combination of a planer head with two sanding heads reduces grit changeovers and maximizes productivity
• Helical Insert Cutterhead: the helical insert knife cutterhead produces a smooth surface and is easily removed from the machine for convenient knife changes
• Industrial Sanding Units: the cast-iron & industrial welded steel sanding units are mounted on a sturdy base to provide exceptional vibration damping for optimal sanding results
• Variable Feed Speed Adjustment: inverter-driven variable speeds allow precise control over the feed rate, adapting to different materials and processing requirements
• User-friendly Touchscreen Control: easily adjust feed speed, thickness settings, monitor the amp load on each head, and log any machine errors for enhanced diagnostics
• Heavy-duty construction for production use
• Powerful horsepower for efficient stock removal, calibration, and final sanding
• Planer head followed by two sanding heads to increase throughput by minimizing grit changeovers
• Spiral insert knife planer cutterhead for superior stock removal with unparalleled finish quality
• Solid cast iron sanding heads and mounting base for superior vibration damping resulting in an optimal sanding result
• Independent motors for each sanding unit

Machine Configuration

“N” Planer Unit: features a 7” diameter solid steel helical insert knife cutterhead driven by a powerful 40HP motor

“D” Contact Drum: the 10” diameter rubber covered contact drum allows for further fine calibration of panels prior to final sanding. Powered by a 25HP motor

“A” Combination Head: the versatile combi-head features a 6” diameter contact drum with a 2” adjustable platen. The adjustable platen allows seamless transitions between calibration and fine sanding, enhancing efficiency and workflow. Powered by a 20HP motor.

Planer Head

The solid steel 7” diameter helical insert knife cutterhead is driven by a powerful 40HP motor performs full width planing with ease. The helical pattern produces a shearing action for a smooth planed surface with greatly reduced noise. The solid carbide insert knives provide superior stock removal, requiring minimal horsepower. Changing and rotating the knives is easily performed by sliding the cutterhead out of the machine, providing full access to speed up this process. The 2-sided indexable insert knives (30 x 12 x 1.5mm) can be easily rotated when they get dull or damaged for a fresh cutting edge.

Planer Head Height Adjustment & Exclusion

The planer head can be quickly adjusted out of position when not required for sanding applications. The head can then be accurately adjusted back in to position by using a graduated scale and locking mechanism. Additionally, this eccentric adjustment allows you to fine tune the height of the planer head for your desired setting.

Sectional Pressure Shoe and Anti-Kickback Safety Fingers

Equipped with safety anti-kickback fingers installed before the cutterhead to prevent material kickbacks. The sectional pressure shoe conforms to the uneven work piece to ensure proper down pressure for optimal feeding and operator safety.

Rubber Contact Drum

Following the planer head is a 10” rubber sanding drum crucial for intermediary sanding and final calibration. This contact drum facilitates finer sanding, resulting in an improved surface finish with reduced risks of over-sanding. The softer surface minimizes the occurrence of chatter marks or swirls on the workpiece, ensuring a smoother and more refined end result.

Combination Head

The last head incorporates a 6” rubber contact drum with a 2.2” wide adjustable platen. The platen can be raised when further calibration is required and lowered for final sanding with finer grits. The platen is configured with a felt strip and covered in friction reducing graphite cloth. This setup allows for fine sanding results and optimal surface finish.

Accurate Adjustment of the Drums and Platen

The first & second contact drum can be micro-adjusted for belt grit compensation through use of a graduated scale and dial indicator. The platen on the combination unit can be raised or lowered depending on whether you are performing calibration or finishing sanding with the guidance of a scale. The quick-release outboard supports allow for fast belt changes to reduce changeover time. The tracking adjustment is also easily performed by adjusting the knob left and right to ensure it is operating optimally.

Air Jet Belt Cleaning Device

Each sanding head is outfitted with an air jet belt cleaning device which sprays air at the sanding belt as it travels over the top idle drum. The belt crests the drum and opens the grit where a blast of air removes the dust build up on the belt. This system provides a longer belt life and improves consistency and overall sanding results. The air jets also help to mitigate streaking lines from debris trapped on the abrasive belt.

Electronic Belt Tracking

An advanced electronic belt tracking system uses a send-and-receive sensor that delivers pinpoint accuracy in detecting the sanding belt. This precision ensures the most reliable belt tracking increasing overall performance. Specially located air nozzles ensure the sensor and reflector remain dust free. Each sanding head is equipped with belt overrun limit switches which are designed to shut down the machine in the event a belt over travels preventing damage to the belt.

Automatic Disc Brakes for Sanding Heads

A pneumatic disc braking system swiftly stops the sanding heads when stopped or when a fault occurs on the machine. This enhances operator safety, machine safety, and reduces changeover time. Additionally, the sanding motors come equipped with Wye-Delta controls which reduce power consumption on startup.

Safety Systems

The SRN series comes equipped with a wide range of features designed for both operator and machine safety. A safety bump bar on the infeed bed allows the operator to quickly shut the machine down even if their hands are in use. A material over height limit switch protects the machine from feeding thicker material than was intended. There are limit switches on the left and right access doors which will not allow the machine to run when left open. An emergency stop button is located in front and at the rear of the machine. The interior LED lighting indicated when the machine is in fault condition or a ready to run state.

User-Friendly Touch Screen Control

The touch screen interface is easy to use and provides the operator with user friendly controls all in one place. This unit allows the operator to enter in the desired thickness to a 0.001” or 0.1mm resolution. The feed speed can be entered precisely and is controlled by a VFD inverter. Each planer and sanding head can be turned off and on individually with a Wye-Delta soft start control. The amperage of each unit is displayed allowing the operator to monitor the amp load during operation to aid in achieving the best overall sanding result and prolong belt lift through proper use. The on board error diagnostics display any machine faults to allow for fast diagnosis of any potential issues.

High-Quality Italian Rubber Conveyor Bed

The reinforced rubber conveyor belt (made in Italy) provides optimum grip while remaining very consistent in thickness for sanding precision. Additionally, there is a vacuum hold down system which allows you to hook up your dust collection system to provide vacuum hold down of the conveyor belt flat on the machined steel table for added precision. (This is not used for part hold down).

Table Elevation Jack Screws

The table is raised and lowered by four industrial jack screws ensuring perfect flatness and added durability. The screws are covered with rubber bellows to prevent dust contamination.

Variable Speed Feed Motor

The feed conveyor is driven by a powerful 5HP motor. The feed speed is controlled using a frequency inverter (VFD) and can be adjusted conveniently on the touch screen control. This feature allows the operator to set the desired feed speed according to the material and sanding operation being performed whether that be heavy planing or final sanding.

Caliper Auto Thickness Setting Device

A caliper auto thickness setting on a wide belt sander offers precise and consistent sanding thickness by automatically detecting the panel thickness. By automating the thickness adjustment process, operators can save time and labor while also promoting machine safety through improper table adjustments.

Panel Cleaning Brush

Includes a 1HP panel cleaning brush with dual dust ports to further clean the panel after the final sanding unit.

Electrical Controls

Cantek uses high quality Schneider electrical controls to operate the sander, ensuring reliable performance. These electrical components are readily available from Cantek or major electrical stores across North America for added convenience when required.

Features

• Helical insert knife cutterhead is capable of superior stock removal and runs extremely quiet
• Accurate touch screen thickness control with 0.001” or 0.1mm resolution
• Cutterhead can be slid from the machine to allow for convenient knife changing
• Table adjustment is made easy and reliable with four heavy-duty jackscrews driven by a robust chain system
• Electronic sanding belt tracking maintains optimal belt alignment throughout the operation, minimizing belt wear and ensuring consistent performance
• Automatic disc brakes for all head allows for rapid belt changeover, minimizing downtime & improving efficiency
• A wide range of safety features to ensure operator safety
• Versatile configuration with spiral insert knife cutterhead followed by a rubber contact drum and then a combination sanding unit with rubber drum and adjustable platen
• Electronic belt tracking for optimum belt lift and sanding results
• Powerful air jet belt cleaning units remove dust build up on sanding heads for better sanding results and promote longer belt life
• Clear plastic windows allow the operator visual access to the sanding heads to ensure proper oscillation and observation of the sanding belts without having to open and shut down the machine
• Heavy-duty fixed base with dual rubber pressure rollers between sanding heads
• Amp meter for load monitoring to ensure the proper amount of material is removed according to selected abrasive belt grit
• Pressure hold-down system consists of sectional infeed pressure shoe before the cutterhead, and dual rubber pressure rollers between and after sanding head
• Anti-kickback safety device before the cutterhead for added operator safety
• High-quality Italian rubber conveyor for belt tracking
• Extended infeed bed with two table rollers
• The automatic maintenance system reminder feature will assist with notifications for maintenance
• Two LED indicators: a blue light for normal operation and a red light that indicates an error. Allows you to monitor the sander at all times
• Caliper thickness setting unit for fast setup to your workpiece
• Disc brakes on the main motors allow for faster belt changes and improved safety
• Pneumatic belt tensioning with quick-release outboard support to facilitate fast belt changes
• Material over-height limit switch on infeed will quickly shut down the machine should the operator feed material that is beyond the thickness setting of the machine
• Safety interlock switches located on all access doors

Specifications

• Abrasive belt size: 43” x 75”
• 1st main motor (planer): 40 HP
• 2nd main motor (drum): 25 HP
• 3rd main motor (combi): 20 HP
• Feed motor: 3 HP
• Table rise/fall motor: 1 HP
• Working width: 42”
• Min part length: 16.9”
• Max thickness opening: 4.7”
• Feed speed (variable): 13 to 59 FPM
• Dust outlet: 11 @ 5”
• Compressed air pressure: PSI 85
• Compressed air volume: 18 CFM
• Dust collection requirements: 8063 CFM
• Electrical Requirements: 460V / Three Phase / 60Hz / 111 amps
• Net weight: 9,259 lbs
• Machine dims: 98” x 71” x 79”
• Shipping weight: 10,031 lbs
• Shipping dims: 115” x 79” x 82”
