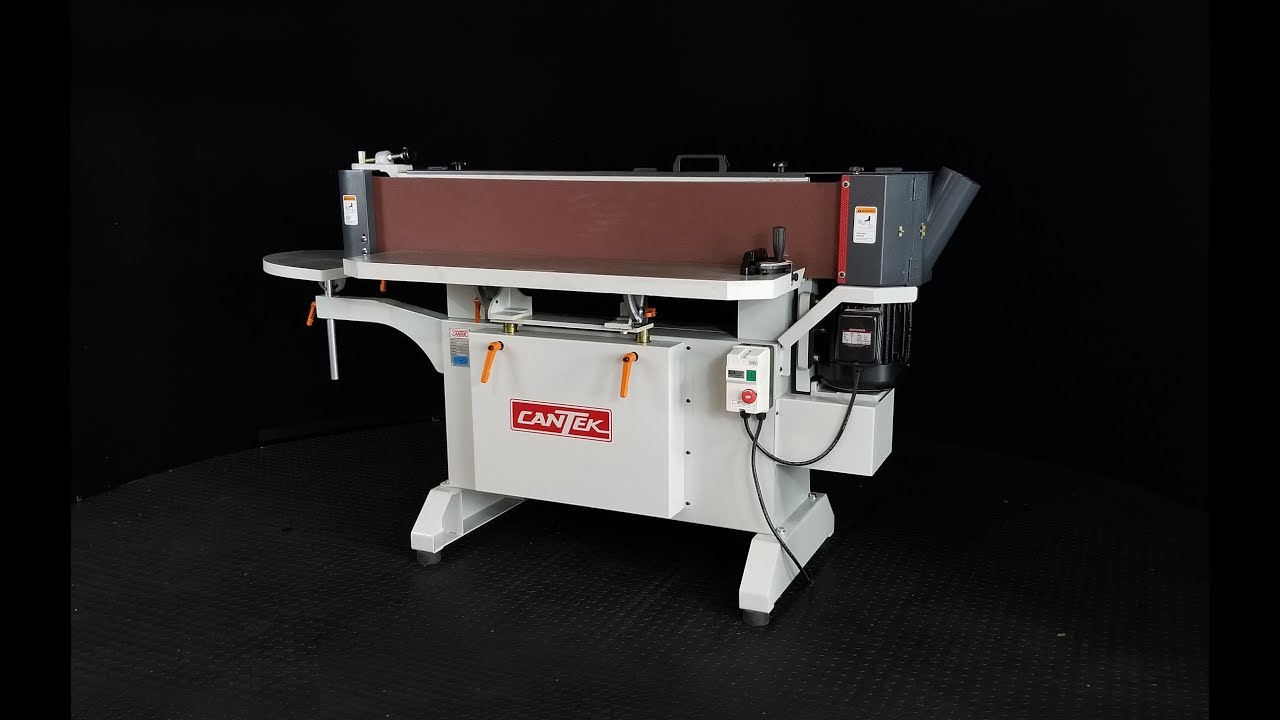

*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
PW-120E
|
13475
|
- Working Capacity (LxH) 47” x 8”
- Belt Size (LxH) 138 ½” x 9”
- Sanding Belt Speed 1080 m/min (3544 FPM)
- Motor 3HP: 230-volt 3 phase
Features
- Tilting main table with a 0° to 45° ruler.
- Tilting corner table, with adjustable height, for curved work piece sanding.
- 120° miter gauge for precise sanding.
- Two (2) parallel shafts mounted on a bushing system assuring a smooth and easy height table adjustment.
- Both rollers are rubber coated which give the ability of the small roller to do a smooth finish on curved pieces. Also, it gives to the large drum a better traction so the belt doesn’t slip.
- Fast and easy belt replacement and belt oscillation adjustment.
- Door that gives you accessibility to sand long timbers.
- Standard magnetic control including overload protection and emergency stop.
- Two (2) 4’’ dust hood
Specifications
- Working Capacity (LxH) 47” x 8” (1200mm x 200mm)
- Belt Size (LxH) 138 ½” x 9”
- Sanding Belt Speed 1080 m/min (3544 FPM)
- Motor 3HP: 230-volt 3 phase
- Machine Dimensions (LxWxH) 82.7” x 24.4” x 40.2” (2100 x 620 x 1020mm)
- Shipping Dimensions (LxWxH) 86.6” x 28.4” x 45.3” (2200 x 720 x 1150mm)
- Net Weight 682 Lbs. (310 kgs.)
- Shipping Weight 792 Lbs. (360 kgs.)
Manufacturer | |
SKU |
PW-120E
|
Shipping Method |
LTL Freight
|
Weight |
792 lb
|
Dimensions |
87 × 29 × 46 in
|
Country of Origin |
Taiwan
|
Warranty |
1 Year
|
