Baker Products 30 HP Blue Streak 20’ Stationary Band Sawmill 3630E

FREE SHIPPING

Manufacturer Part: EMT ID:
3630E
12892

  • 30 HP Electric Motor
  • Log Length: 20 ft. 6 in capacity
  • 36” diameter log cutting capacity
  • Variable-speed drive
Details below

Description

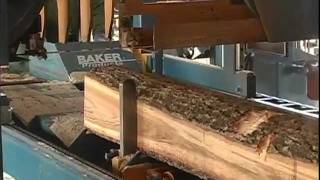

The Baker Blue Streak™ Stationary Band Sawmill is built to handle big logs and big jobs. Powered by your choice of a 30-, 40-, or 50-HP high-torque electric motor, no log stands a chance against this mill.

No other sawmill comes close to the versatility, ease of use, production, and heavy-duty smart design of the Baker Blue Streak Sawmill.There are other outstanding standard features, as well, such as a board dragback mechanism that pulls cut material back to the operator, reducing labor. The head is as stable as a rock, raised and lowered on both sides at the same time with hydraulically-powered ball screw mechanics. The throat height capacity is 13” between the blade and the top of the throat, and the mill is able to cut logs up to 36” diameter. You’ll not find a better one-man band sawmill on the market than the Baker Blue Streak Stationary Band Sawmill.

Features

  • 20’-6” log length capacity
  • 13” X 28” throat provides clearline of sight
  • Large, 28” diameter, machined solid steel band wheels
  • 36”-diameter log cutting capacity
  • Dual hydraulically-powered chain-driven carriage
  • Easy-to-read round measurement dial
  • 1¼” or 1½” band blade
  • Head is raised and lowered equally on both sides with hydraulically-powered ball screw drive system
  • Variable-speed drive
  • Moveable guide opens to 28”
  • Operator’s station features all controls in one convenient spot
  • Hydraulic log loader, log turner, fence arms/clamp, and toe rollers
  • Board drag-back
  • Easy to set up and maintain
  • Hydraulic chain log turner
  • Hydraulic forward and reverse
  • Blade enters clean wood after first rotation
  • 10-HP hydraulic unit

Specifications

  • Production Rate:
    • 1 man: 4,000 - 6,000 bf per day
    • 2 men: 5,000 - 7,000 bf per day
    • 3 men: 6,000 - 9,000 bf per day
  • Band Blades:
    • 17 ft. 4 in. x 1¼ in. (5.28 m x 31.75 mm)
    • 17 ft. 4 in. x 1½ in. (5.28 m x 38.1 mm)
    • Blade Thickness: 0.042 in. (1 mm)
    • Band Wheels: 28 in. (71 cm) diameter; all-steel, with crown
  • Dimensions & Weight:
    • 20 ft. Model
      • Length: 26'-7" (8.1 m)
      • Width: 8 ft. (2.44 m)
      • Height: 114 in. (2.9 m)
      • Weight: 7,800 lbs. (3,538 kg)
    • 24 ft. Model
      • Length: 30'-7" (9.3 m)
      • Width: 8 ft. (2.44 m)
      • Height: 114 in. (2.9 m)
      • Weight: 8,000 lbs. (3,629 kg)
  • For Portable Electric Mills:
    • Tongue Weight (20 ft. model tandem-axle): 450 lbs. (204 kg)
    • Tongue Weight (24 ft. model tandem-axle): 450 lbs. (204 kg)
    • Tongue Length for either model: 41 in. (1 m)
  • Capacities
    • Cutting Capacity: 36 in. (91 cm) diameter maximum;cuts 26 in. (66 cm) through center
    • Log Length: 20 ft. 6 in. or 24 ft. 6 in.; Other lengths only available upon request
  • Power
    • Model 3630E: 30 HP (22.38 kw) Three-phase electric motor, 10 HP (5.6 kw) hydraulic power pack
    • Model 3640E: 40 HP (29.83 kw) Three-phase electric motor, 10 HP (5.6 kw) hydraulic power pack
    • Model 3650E: 50 HP (37.3 kw) Three-phase electric motor, 10 HP (5.6 kw) hydraulic power pack
    • Electric models come complete with control panel, starter(s), disconnect and overload protection.
    • All voltages available: 240v, 480v, or 575v, all 3-phase 60Hz
    • The hydraulic power pack powers all hydraulic log handling functions.
  • Other Features
    • Baker Bullet Guides
    • Heavy-duty construction
    • 5 gallon reservoir for waterdrip system
    • Hydraulically-powered
    • Moving blade guide
    • Variable feed speed
    • Electrical panel
    • Hydraulic tension on blade
    • Easy to maintain

Available Options

  • Computer setworks
  • Debarker
  • Band blade sharpener
  • Band blade setter
  • Portable models
  • Stainless steel bunk caps
  • Diesel Engine Power
  • Additional clamps
  • Powered toe rollers
  • Log Infeed Deck
  • Additional Log Turner
  • Pedestal-mounted controls
  • Operator’s control cab with heat and air-conditioning
  • 32 ft. length model at the time of purchase only
Manufacturer
SKU
3630E
Shipping Method
Flatbed
Weight
7,800 lb
Dimensions
319 × 96 × 114 in
Country of Origin
United States of America
Warranty
1 Year
(Parts)
