Baileigh Abrasive Notcher TN-400

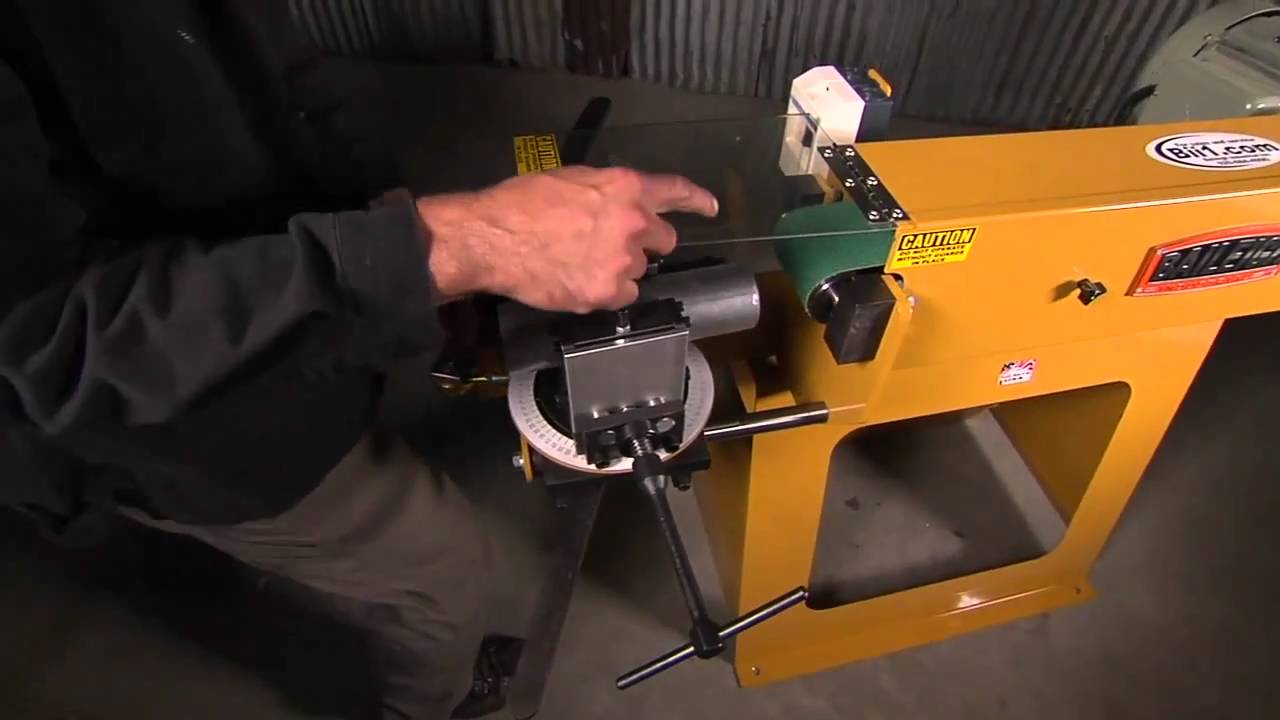

Abrasive style belt notchers have been around for a long time and over that time many have tried, Baileigh Industrial included, coming up with something better. And while the newer machines did do some things better, no one was able to replace the abrasive notcher entirely. They are perfect for thin wall tubing as well as getting the job done fast, really fast with a perfect cope. The TN-400 abrasive notcher from Baileigh Industrial is on the cutting edge of abrasive notching technology and is perfect for coping the ends of 3/4" OD to 2" OD tubing or pipe at almost any angle from 0 to 60 degrees. The TN-400 uses a 3 hp motor running on 220 volt single phase power to spin the 79" x 4" belt at a speed of 5420’ per minute. The TN-400 does require a special mandrel for each size of tube or pipe that you want to notch, but it does feature a quick change mandrel system that allows y the operator to change it in seconds. The vise on the TN-400 abrasive notcher is where the real magic happens. The vise carriage rides on a smooth Thompson shaft assembly during the notching cycle. The control lever is pivoted making the material press into the belt. The vise is self centering for perfect belt positioning every time. The jaws on the vise are of a V-block design to keep the part on center with the notching spindle and to hold the part more securely. The TN-400 has a carriage stop for repeatable notches every time.
