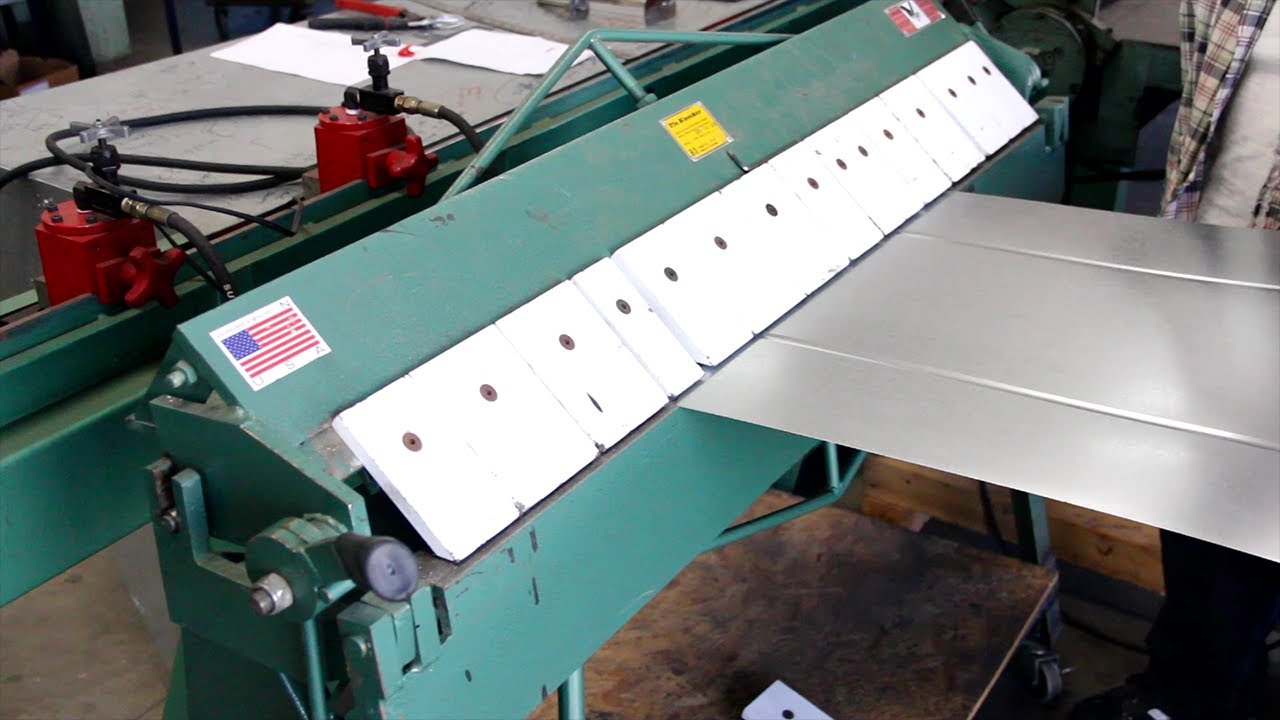

Tin Knocker 22Ga. 48" Box & Pan Brake TK 2248

Description

Durable and dependable! The TK box and pan brakes give you all the features you would expect from quality machines. Of all steel welded construction, with adjustable truss bars and bronze bushings, these brakes are built to last. The brakes come with removable apron angle and apron insert, permitting 1/4" reverse bends in lighter materials. The nose bar is removable as well and the brakes are equipped with a precise stop rod for repeat bends.

Specifications

• Capacity: 22 Ga.
• Bend Length: 48"
• Max Beam Lift: 7/8"
• Max Box Depth: 3"
• Min Reverse Bend: 5/16"
• Min Flange: 3/8"
• Dimensions: 64" x 28" x 32"
• Weight: 356 lbs

Options

• Stand
