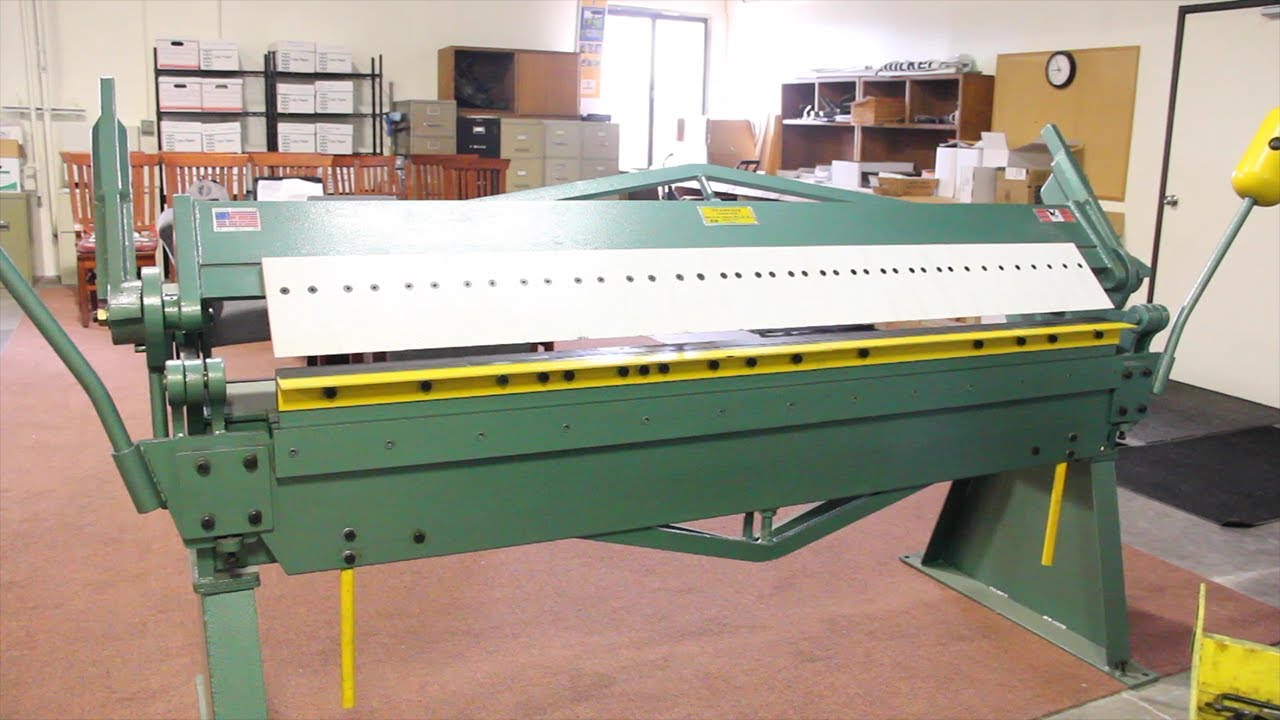

*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
TK616
|
6235
|
- Capacity with lower tooling flanges: 72" x 16Ga
- Capacity without lower tooling flanges: 72" x 20Ga
- Lift of beam: 1.5"
- Min reverse bend: 5/8"
Description
An incredibly universal hand brake. Featuring box & pan fingers up top and segmented, relocatable bend apron tooling below. Perfect for complex parts to include flange down bends, transverse duct forming & much more. With strategically positioned counter weights this brake makes for easy and smooth manual bending.
Specifications
- Capacity with lower tooling flanges: 72" x 16Ga
- Capacity without lower tooling flanges: 72" x 20Ga
- Lift of beam: 1.5"
- Front to back ram adjustment: 1/2"
- Min reverse bend: 5/8"
- Min flange width: 1"
- Finger widths: 1", 3", and 4"
- Lower segment tooling widths: 1", 1.5", 4", 6", 8", 12", and 20"
- Bending beam tooling (segmented) lengths: 1", 1.5", 4", 6", 8", 12", and 20"
- Maximum transverse bend in center of machine: 2"
- Maximum transverse bend at end of machine: 3"
- Footprint with counter weights: 95" x 38" x 54"
- Shipping weight: 1,850 lbs
Manufacturer | |
SKU |
TK616
|
Shipping Method |
LTL Freight
|
Weight |
1,850 lb
|
Dimensions |
96 × 32 × 43 in
|
Country of Origin |
United States of America
|
Warranty |
1 Year
|
