Sparkoz Fully Autonomous Robotic Floor Scrubber with Mission Scheduling TN70

Description

The Sparkoz TN70 Autonomous Cleaning Robot is designed for cleaning solutions in indoor common areas of commercial buildings, capable of autonomously planning work paths and obstacle avoidance, automatic cleaning, and disinfection. Equipped with self-developed intelligent control system, real-time control and real-time display, which greatly improves the efficiency of cleaning work in commercial areas.

What makes Sparkoz Robots Unique?

• Sparkoz delivers a 100% working autonomous cleaning program from day 1. While others only “teach” the customers staff how to deploy their new robot. Sparkoz provides all mapping, and route planning.
• Sparkoz OS is based on a Map of the Facility. All cleaning missions are created on this map. Area coverage mode reduces the need for reprogramming routes in changing environments. Path Learning mode is also unique. It is not your typical “copycat”, instead Sparkoz’s program enables machine learning to continue to optimize the path and increase productivity.
• 100% autonomous functionality means no menus or QR codes to scan. Prescheduled combined cleaning missions require minimal staff involvement. Sparkoz’s robot was built to be a scrubbing robot, not a cobot. With sensors and cameras on all 4 sides of the robot allows it to even back up if needed. It nearly eliminates the need for “staff assists or robot rescues”. No other robot has 3 LiDAR’s, 5 Cameras, and 12 Sonar Sensors positioned on all 4 sides of the robot.

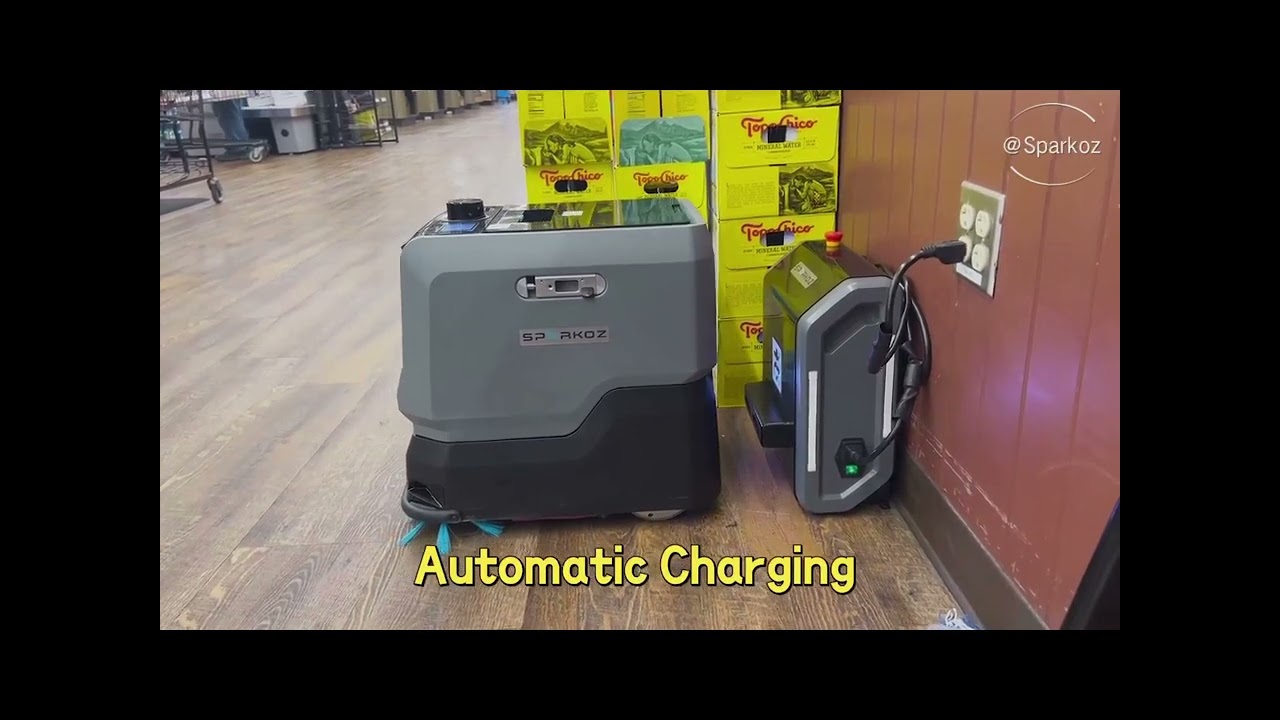

• Automatic battery charging and instant opportunity charging. Provides good charging practice, longer run times and leads to extended battery life.
• Quiet glide dust mopping and disinfectant fogging options. Doubles or triples your ROI. Dust mop missions are silent and is great for schools to operate during class time. The fogger is unique and is ideal for pandemic preparedness plans.

Features

• Different modules can be interchanged to achieve higher levels of ground cleaning and provide disinfection from pathogens in the cleaning environment
• Sparkoz’s autonomous solution operates without staff assistance, freeing them to do other tasks; since staff do not need to operate the machine, this system provides “Zero Cost Learning” for your site
• Cleaning components provide on the ground pressure of up to 60 lbs for a high level of cleanliness. The cleaning system has high levels of efficiency of up to 21,958ft²/h.
• This self-developed, multiple sensor system has safety in mind; intelligent machine recognition, emergency stop switches, obstacle avoidance, are all present to ensure safety is at the forefront
• The digital information management system provides a real-time view of cleaning progress and provides results of cleaning with automated reports
• The TN70 complies with the European safety standards and requirements; the large battery compartment meets the guidelines and standards for safety of lead-acid batteries
• With a 18.5gal clean water tank and battery capacities of 100/120Ah, the TN70 is designed to operate for long and complete cleaning shifts
• Sparkoz Proprietary LiDAR and Vision dual positioning system is paired with world class AI algorithms to allow for the most accurate self-positioning and working area mapping
• Units can relay messages up to 7 seconds in length with multiple language options
• Compatible with Ecolab cleaning solutions
• Free virtual training available

Specifications

• Size (LxWxH): 45.6” x 22.8” x 47.6”
• Weight (without water): 560 lbs
• Scrub Deck Width: 20”
• Squeegee Width: 31”
• Ground Pressure: 60 lbs
• Brush Disc Pressure per Unit Area: 0.187 psi
• Clean Water Tank Volume: 18.5 gal
• Recovery Tank Volume: 13.2 gal
• Max Speed: 2.5 mph (automatic)
• Efficiency: 21,960 ft²/h
• Climbing Ability: 6%
• Voltage: 24V
• Battery Life: 4 hr
• Battery Capacity: 120Ah
• Navigation System: Camera + LiDAR
• Sensor: Panoramic Monocular Camera/LiDAR/ToF Camera/Ultrasonic/IMU/Electronic Crash Strips

Options

• Mop, dust, and squeegee accessories/replacements
• Abrasive brush heads, brush accessories/replacements
• Custom color wrap
• Disinfection Module
• On-Site Deployment/Training
• Service Plans (include parts & labor)
