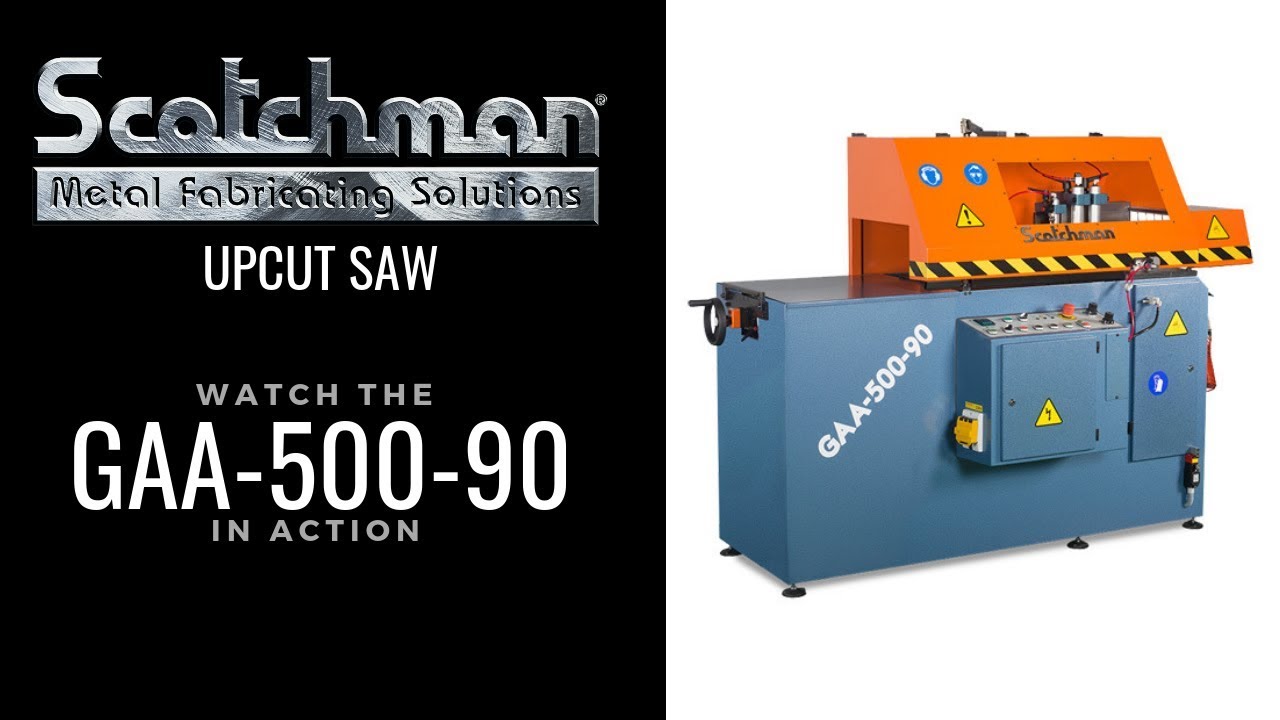

Scotchman GAA-500-90 20" Non-Ferrous 460V Three Phase Fully Automatic Upcut Circular Cold Saw 955

Features

• Large capacity non ferrous saw
• Automatic or Semi-automatic operation
• Shuttle feed design cuts at 90 degrees only
• "Automatic feeder: 20 inches x 2 strokes
• (20"" + 20"" max. double advance)"
• Adjustable length selector from 0.200" to 20"
• Adjustable cutting & feeding speeds
• Drill & Tap and CNC features (optional)
• Three horizontal pneumatic clamps
• Three vertical pneumatic clamps
• Powered hood lift
• LED lighting
• Mist coolant lubrication system
• Emergency stop button
• One gallon coolant
• One 500 mm diameter carbide blade
• One blade wrench
• Air hose
• Base designed as a chip collection with two chip extraction ports
• Adjustable leveling pads
• Meets CE standards
• Warranty: Two years on parts
• Made in Spain

Specifications

• Maximun Cutting Capacities (Non-Ferrous & PVC ):
  • Round 90°: 8"
  • Square 90°: 8" x 8"
  • Rectangle 90°: 14" x 4"
• Length Tolerance: ± 0.006" per index
• Cutting Speed: 3,000 RPM
• Motor Rate: 7.5 hp
• Motor Options: 460 Volt, Three Phase
• Air Pressure: 90 psi
• Maximum Diameter Blade: 600 mm
• Arbor Bore: 50 mm
• Width: 75"
• Depth: 60"
• Height (top of hood): 65"
• Height (floor to table): 38-5/8"
• Shipping Weight (may vary): 1,750 lbs.

Optional Tooling

• Drill & Tap and CNC features
