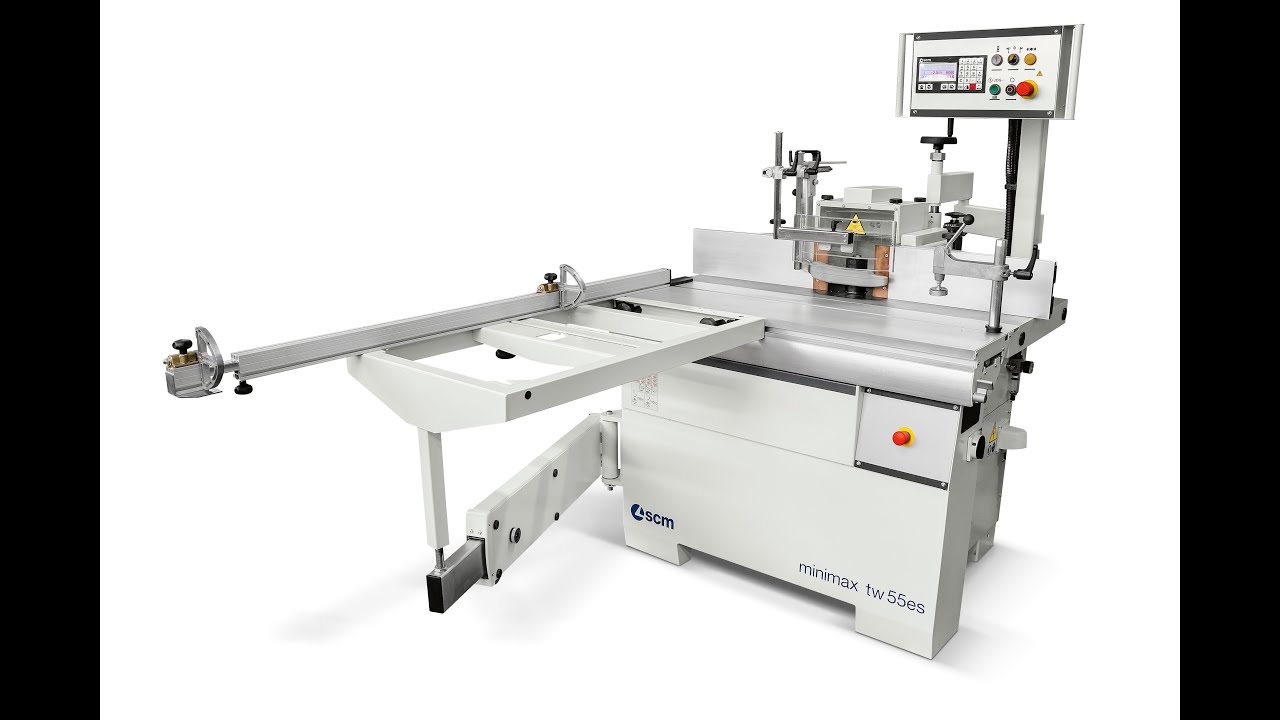

SCM Group Minimax 220V Three Phase 4-Speed Tilting Spindle Shaper with READY 3UP NC Control TW 55ES-Ready3UP

Description

The right spindle moulder for demanding craftsman and carpentries, thanks to its customization and flexibility. The Minimax TW 55ES is the culmination of years of experience in manufacturing quality solid wood SCM products. This 4-speed heavy duty machine is standard with both a sliding table and tilt! The slider has hardened steel guide ways and precision bearings, so it incorporates the exact technology found in SCM’s top selling sliding table saws! The hood has memory pins so it removed, it will go right back into the same position, making this shaper accurate and repeatable.

Maximum stability and rigidity in every working condition thanks to a big cast iron spindle moulder unit and a sturdy base in single-block steel. Great versatility with the spindle moulder with 4 speeds and available in fixed or tilting version. Best support in all machinings, thanks to the 330mm width sliding table.

Features

• Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from moulding to routing and tenoning
• Large sliding table with guideways secured with aluminum riveting
• READY 3UP control: 3NC axes at your fingertips
  • Spindle height
  • Spindle angle
  • Entire fence position

Standard Equipment

• Extruded anodized aluminum sliding table
• Spindle moulder reverse rotation
• Electric pre-setting for feeder
• Device for angular cutting with 2 flip-over stops
• Ready 3 UP control: the programming of the work becomes simple and effective with the electronic mobile control panel with a 4” LCD color screen. Working mode: manual, semi-automatic and automatic with a memory capacity of 99 programs
• “Flex One” spindle moulder fence
• Tiltable spindle moulder 90°/45°
• (1) 1¼” Spindle
• Shaper push handle
• Spare belt
• Toolbox: wrenches, allen wrenches, user manual, spare parts catalog

Specifications

• Main motor power: 8HP – 6kW
• Max useful spindle length: 3.5”
• Capacity, under the nut, with interchangeable spindle: 3.31”
• Spindle moulder speeds: 4,000 – 7,000 – 9,000 – 12,000 rpm
• Max tool diameter when profiling: 8.25”
• Max diameter of tool lowered under the table at 90°: 9.44”
• Spindle moulder available with following diameters: ¾” – 1” - 1¼” / 30 – 32 – 35 – 40 - 50mm
• Diameter of exhaust outlets: 4.69”
• Nominal extraction air consumption: 600 CFM
• Air exhaust speed: 66 ft/s
• Electrical Requirements: 220V Three Phase 60Hz 28A
• Machine Dims: 79” x 47” x 48”
• Approx Weight: 1,065 lbs

Optional Add-Ons

• Eccentric clamp
• Tenoning table and protection hood
• Spindle moulder protection for shaping operation
• Anodized aluminum tables for spindle moulder fence
• Spare spindle for interch spindle 125mm length
• Spare spindle moulder with spare spindle for router bits
• Support frame (1200 x 650mm)
• Swing away support for feeder
• Feeder FEED 48
• Version with 7.4’ slider
• Single phase motor 4.8HP
• Three phase motor 10HP
• Interchangeable spindle
• Profiling version with lateral extensions
• Support device for feeder with electric pre-setting
• Tenoning table with protection hood
