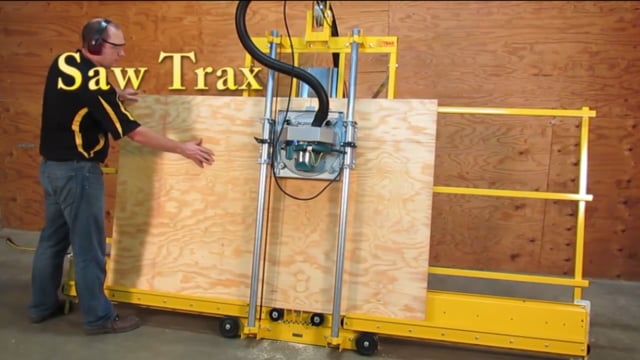

Saw Trax Varsity Series 52” Cross Cut Vertical Panel Saw with Compact Size Frame C52VP

Description

Everyone has seen how fast and easy the vertical panel saws are to use in the Home Center stores.  Imagine having a portable version of that but more accurate and with more capability?  As my old Drill Instructor would tell us, “If a man can conceive it, a man will achieve it”.  The Varsity Series Vertical Panel Saw gives you the capabilities of much larger machines, in a smaller portable package.  The smaller package means lower cost but has more capability than the Home Center machines because of the Unique quick-change carriage that allows other tools like a router, pivoting razor knife, glass cutter and rolling shear.

Basically, the Varsity is a smaller version of the 1000 series vertical panel saw giving you a less expensive and more portable version of a full-size panel saw.  It is ideal for customers that need a vertical panel saw to precision cut sheet goods that are up to 1 ¾ inches thick.

Features

• Saw is always square because of the single factory set-and-forget Accu-Square alignment system.
• The Makita 5007F 15 amp. saw uses easy to find 7.25 inch saw blades.
• The dust collection uses a Dust Brush to surround the blade so that the saw dust is actually contained until the larger 2.5″ vacuum hose evacuates it.
• Quick change carriage allows fast cutting tool changes such as a floating router, pivoting razor knife, aluminum composite rolling shear and glass cutter.
• A lighted viewing port in the dust bonnet of the saw make it easy to align your saw blade with a mark on your material.
• Easy one man folding stand that folds like a ladder.

Standard Equipment

• Accu-Square alignment system
• Accu-Glide sealed bearing system
• Powder coated frame
• Zinc plated 11-gauge steel guide tubes
• Quick Release Carriage
• Retraction Mechanism
• Cord Holder
• Center Material Step

Package Includes

• Makita 5007F Saw
• Spinning Saw Insert Plate
• Dust Hood, Hose, Brush, Hose Coupler
• Compact 60″ Wide Steel Frame
• Folding Stand
• Frame Wheels
• Dual Rip Gauge
• Stop, Bar and Tapes

Specifications

• Arbor: 5/8"
• Amps: 15
• Cross Cut: 52"
• Cut Depth: 1.75"
• Frame Size: 60"
• Blade Size: 7.25
• No Load Speed: 5800 RPM
• Weight: 236 lbs

Optional Accessories

• Full Mid-Fence
• Floating Router Plate
• Builder’s Extensions
• Laser Pointer
• Frame Dust Collection
• Flip Stop
• Universal insert
• Material Dolly
