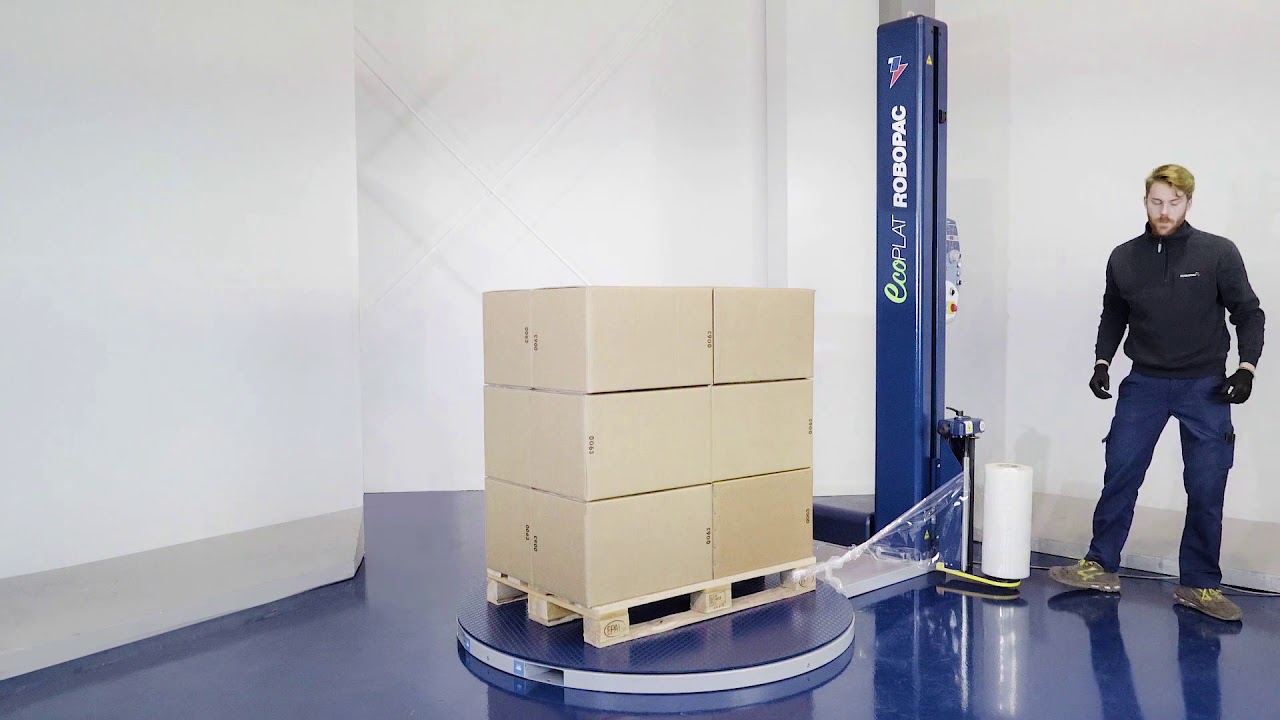

Robopac 25 LPH Semi-Automatic Turntable Stretch Wrapper Ecoplat

FREE SHIPPING

Manufacturer Part: EMT ID:
Ecoplat
13764

  • Production Rate: Up to 25 loads per hour
  • Turntable Weight Capacity: 4,400 lbs (Upgradable to 5,500)
  • Maximum Load Dimension: 40" (L) x 48" (W) x 110" (H)
  • Temperature Operating Range: Between 41°F and 104°F
Details below

Description

The Ecoplat semi-automatic turntable stretch wrapper wraps up to 25 loads per hour and comes standard with a 110″ wrap height. This pallet wrapper is R-connect ready, which allows you to monitor and improve your packaging performance through remote assistance.

Features

  • R-CONNECT READY - R-Connect, available for this machine is our latest innovation was developed to provide usage and performance data via the cloud, enabling you to meet Industry 4.0 demands by putting performance monitoring & optimization at your fingertips. Utilization drastically reduces downtime by giving you informational transparency, allowing you to connect with your machines remotely to investigate alarms, adjust parameters, & respond promptly. This Industry 4.0 innovation empowers you with actionable insight to continuously improve performance, cost savings, & automation.
  • FRD CONTROL PANEL - The Control Panel on the Ecoplat FRD Pallet Wrapper has clear icons to make it easy to program.
  • FRD CARRIAGE - The FRD film carriage with Mechanical Brake is manually adjusted and has an indicator to show the tension setting. There is also a tension on/off lever to allow film to be released for attaching to the pallet without altering the film tension. This system allows tension to be constant and not effected by the size of the film reel.

Specifications

  • Performance
    • Production Rate: Up to 25 loads per hour
    • Turntable Weight Capacity: 4,400 lbs (standard), 5,500 lbs (optional)
    • Maximum Load Dimension: 40" (L) x 48" (W) x 110" (H)
    • Temperature Operating Range: Between 41°F and 104°F
  • Wrapping
    • R-Connect Ready: Remote Machine Monitoring and Film Consumption Tracking. Eliminate Downtime by Troubleshooting your Machines.      Programmed Diagnostic: 24 hours a day, 7 days a Week.
    • Load Height Sensing: Automatic Height Detection via Photocell for Light Loads
  • Operator Interface
    • Control Panel: LED Display and JOG Dial Programmable Selector
    • Wrapping Menus: 3 Fixed Menus and 1 Operator Programmable Menu
    • E-Stop: Emergency Stop on Control Panel
    • Film Carriage Speed and Positioning: Variable Up/Down, with Manual Up/Down Jog Capability
    • Wrap Counters: Top/Bottom separately, and Reinforcement Wraps
    • Turntable Speed: 4-10 rpm
  • Turntable Design
    • Turntable Size: 65"
    • Turntable Top Thickness: 3/8" thick Diamond-Shaped plated Steel
    • Turntable Support: 28 x 1-5/8” UHMW covered support casters
    • Turntable Drive: 1 HP VAC, Heavy Duty Chain and Sprocket Drive
  • Mast
    • Effective Load Wrap Height: 110" (standard), 86” (optional)
  • Film Delivery
    • Film Delivery System: Frictioned Roller Device (FRD) with Core Breaker
    • Banding: Programmable Up to 5 Positions
  • Film Carriage
    • Film Carriage: 20"W (standard), 30"W (optional)
    • Film Threading: Patented S Pattern, with advanced grip
    • Film Thickness: 39 to 138 gauges
  • Warranty
    • Machine Warranty: 3 years
  • Electrical Data
    • Electrical Requirements: 120V, 10A, 50Hz, 1-phase
  • Machine Dimensions
    • Installed Dimensions: 104" (L) x 71" (W) x 127" (H)
    • Shipping Dimensions: 126" (L) x 89" (W) x 28" (H)
    • Shipping Weight: 1,276 lbs
  • Machine Construction
    • Base Fabrication: Cold formed steel frame
    • Fork Truck Portability: Front and rear
    • Mast Construction: Cold formed steel with rounded corners
  • Ecoplat Characteristics
    • NEMA 13: Protection from dirt, spraying water, noncorrosive coolants
    • Chain Safety: Patented Anti-Fall Clamp Device
    • Operator Protection: A safety distance of 23" between fixed and moving parts
    • Safety and Electrical Compliance: CE compliant, UL Ready
    • Manufacturing Certification: ISO 9001

Options

  • 9000300831: Ecoplat - 110” Max Load Height
  • 9020305887: R-Connect – Remote Machine Monitoring and Film Consumption Tracking
  • 9020305888: R-Connect: add 2 years – Extra years of Monitoring and Diagnostic Services/              Load Height 86" Reduction
  • 8000300155: Scale Package - Built-in 5,000 lb capacity scale system allows you to wrap and weigh your loads in one easy step. Integrated design increases the height of the turntable by less than 1"
  • 3430560110: Ramp for 65" Turntable (3" H)
  • 3430560111: 24" (L) Ramp Extension for 65" Turntable (3" H)
  • 3430560114: Ramp for 65” Turntable for Scale Package (4” H)
  • 3430560115: 24" (L) Ramp Extension for 65" Turntable for Scale Package (4" H)
  • 9020303727: Photocell for Dark Color Loads - detects clear, shiny or dark colored loads
  • 9020301100: Pit Mount Package for 65" Turntable Machine-Floor Level – Kit allows wrapper to be mounted flush with floor. Customer needs to install.
  • 3430560137: Turntable Guards – protect the loading side of machine from damage by forklifts during the loading/unloading of pallets (requires 6 anchor bolts)
Manufacturer
SKU
Ecoplat
Shipping Method
LTL Freight
Weight
1,276 lb
Dimensions
126 × 89 × 28 in
Country of Origin
Italy
Warranty
3 Years
(Parts)
