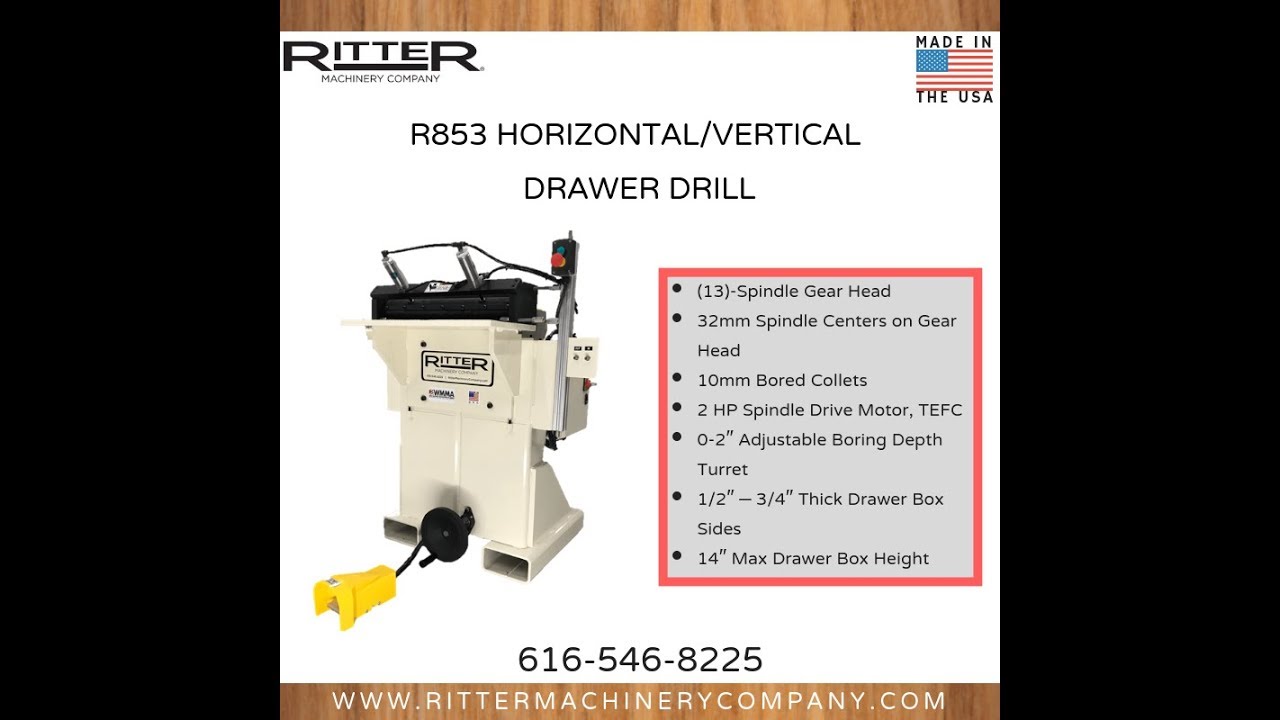

Ritter Machinery 230V 2HP Three Phase 13 Spindle Horizontal/Vertical Drawer Boring Drill R853

FREE SHIPPING

Manufacturer Part: EMT ID:
R853
14931

  • 1.26” Spindle Centers on Gear Head
  • 0-2″ Adjustable Boring Depth Turret
  • 0.50″ – 0.75″ Thick Drawer Box Sides
  • 14″ Maximum Drawer Box Height
Details below

Description

The Ritter R853 is a robust 13 spindle horizontal borer designed to provide for fast and accurate horizontal and vertical boring for drawer boxes. The operation sequence helps eliminate costly mistakes and rejected parts, and it helps increase production and efficiency. Ideal for drawer assembly and other functions for the clean and accurate drilling of wood components. The machine is equipped with a universal clamping system requiring no set-up change from horizontal to vertical boring. The workpiece is held firmly against the table by pneumatic clamps, and there is full adjustability of the index stops, bed height, and depth of cut.

Benefits of the R853 System

  • Back fence allows for vertical and horizontal boring positions without added machine set-up
  • Boring depth is controlled by the quick-change turret for different boring depth as required
  • Chip clearance is provided for by the back fence design to eliminate dust and chip build-up
  • Boring bits are guarded for operator safety
  • Unlimited drawer box width and depth
  • Maximum drawer box height is 14″
  • Capacity for 5mm to 8mm dowels

Features

  • Foot Actuated Drilling and Clamping Cycle
  • (13)-Spindle Gear Head
  • 32mm Spindle Centers on Gear Head
  • (7) Right Hand, (6) Left Hand
  • 10mm Bored Collets
  • 2 HP Spindle Drive Motor, TEFC
  • 0-2″ Adjustable Boring Depth Turret
  • 1/2″ – 3/4″ Thick Drawer Box Sides
  • 14″ Maximum Drawer Box Height
  • 12″ X 24″ Machined Steel Work Table
  • 34″ Work Height
  • Horizontal / Vertical Boring Fence System
  • Horizontal / Vertical Material Clamp System
  • Wired 3-Phase 230 Volt, 60 Hz.
  • Tooling Not Included
  • Designed and Manufactured in the USA

Options

  • E55 – 1.5 HP 1-Phase Motor, 220V
Manufacturer
SKU
R853
Shipping Method
LTL Freight
Weight
1,005 lb
Dimensions
55 × 46 × 57 in
Country of Origin
United States of America
