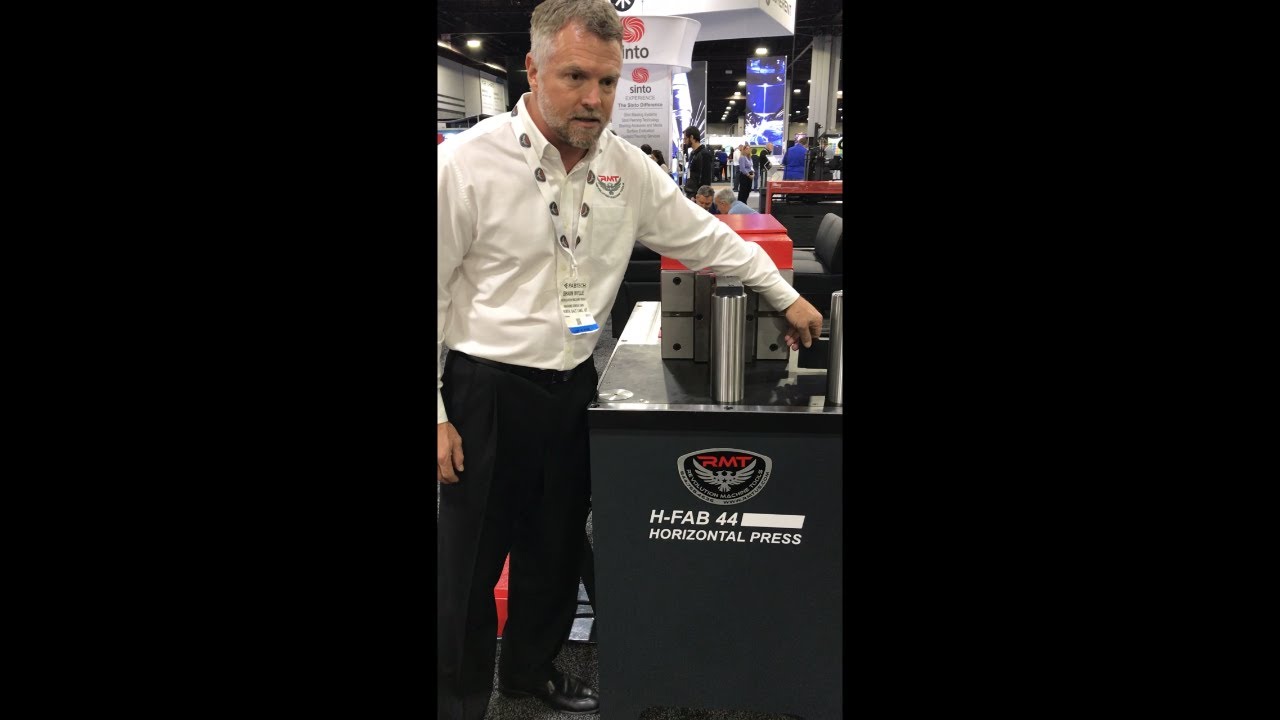

Revolution Machine Tools 5.5HP 44 Ton Horizontal Press HZ-FAB 44
*Image may display optional items not included with purchase.
You might also be interested in...
$61,919.98
$25,895
| Manufacturer Part: | EMT ID: |
|
HZ-FAB 44
|
14972
|
- Max Pressure at 200 Bar: 44 Ton
- Oil Tank Capacity: 10 Gal
- Max Stroke: 11.25"
- Bolt Diameter: 3"
Features
- All steel frame
- Stroke adjustment by DRO
- Manual working system
- All tooling and pins are induction hardened and ground
- Foot pedal operated
- Comes with 1 set of press brake tooling
- Brake gauge
- NC controller
Specifications
- Max Pressure at 200 Bar: 44 Ton
- Oil Tank Capacity: 10 Gal
- Bending Capacity
- Flat Material: 8" x 1"
- Round Tubes: 2.36" x 0.19"
- Max Stroke: 11.25"
- Bolt Diameter: 3"
- Tooling Height: 9.75"
- Operation Speed: 0.39 in/s
- Return Speed: 0.39 in/s
- Motor Power: 5.5 HP
- Net Weight: 2,425 lbs.
- Table Size (L x W): 25" x 49"
- Working Height: 43.3”
- Machine Length: 49"
- Machine Height: 49"
Options
- Automatic working system – including CNC back gauge
- Cutting, punching, straightening, pipe bending tools
| Manufacturer | |
| SKU |
HZ-FAB 44
|
| Shipping Method |
LTL Freight
|
| Weight |
2,625 lb
|
| Dimensions |
54 × 54 × 54 in
|
| Country of Origin |
Turkey
|
| Warranty |
1 Year
|
