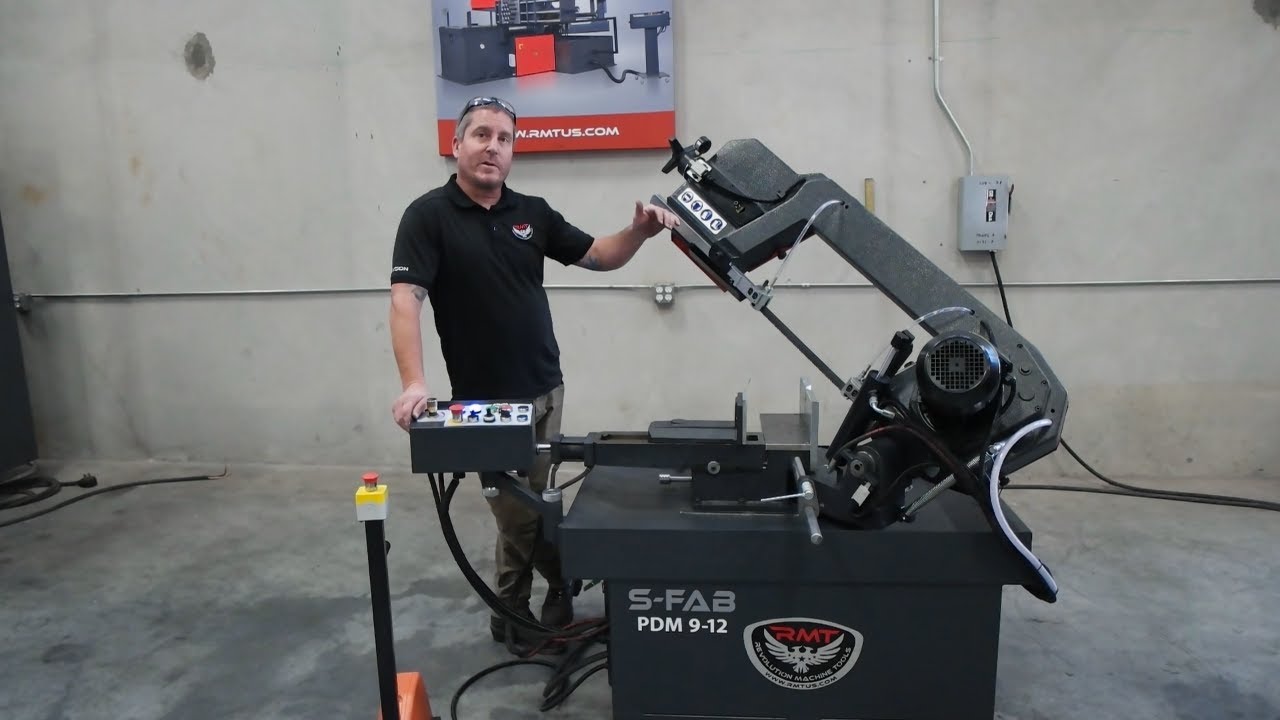

Revolution Machine Tools 1.75HP Semi-Automatic Pivoting Double Miter Band Saw S-FAB PDM 9-12

Description

The Revolution Machine Tools S-FAB PDM 9-12 Semi-Automatic Pivot Type Double Miter Bandsaw is a popular sawing machine which is heavy duty and is favorable in price and performance ratio. It comes equipped with adjustable cutting pressure and coolant pump with tank. It also performs with electric-mechanical blade tension and is ideal for large and small production workshops. It drives with hardened and ground worm shaft, saw exit by means of switch, pivoting control panel, and is supplied with fixed base.

Features

• Control panel
• Blade brush
• Material length stop
• Security switch
• Siti heavy duty gearbox
• Infinite variable speed inverter
• Hydromechanical blade tension
• Coolant pump
• 4ft roller table

Specifications

• Capacity at 0°
  • Round: 9.1" (230 mm)
  • Flat (H x W): 9" x 12.5" (130 x 320 mm)
  • Square: 9.1" (230 mm)
• Capacity at 45°
  • Round: 8.3" (210 mm)
  • Flat (H x W): 6.2" x 9" (160 x 230 mm)
  • Square: 7.1" (180 mm)
• Capacity at 60°
  • Round: 4.7" (120 mm)
  • Flat (H x W): 3.9" x 4.7" (100 x 120 mm)
  • Square: 3.9" (100 mm)
• Capacity at -45°
  • Round: 8.3" (180 mm)
  • Flat (H x W): 6.2" x 9" (160 x 230 mm)
  • Square: 7.1" (150 mm)
• Cutting Speeds: 114- 229 ft/min (35- 70 m/min)
• Band Dims.: 8' 11" x 1" x 0.035" (2730 x 27 x 0.9 mm)
• Main Motor: 1.75 HP (1.3 kW)
• Hydraulic Motor: -
• Weight: 915 lbs. (415 kg)
• Machine Dims. (L x W x H): 54” x 28” x 52” (1350 mm x 700 mm x 1300 mm)

Options

• Dropsa air/oil clean lubrication system
• Micro spray cooling
• 10ft roller table
• 10ft motorized roller table
