Quantum Machinery 14.50" 480V Three Phase Fully-Auto Double-Column Cold Saw with Auto Head Rotation NTA 370 GA
| Manufacturer Part: | EMT ID: |
|
NTA 370 GA(480V)
|
19252
|
- Blade Size (Bore HSS): 370mm x 2.5mm x 32mm
- Maximum vice opening: 4.9" (125mm)
- 2 Speeds: 15 - 90 RPM
- Additional Vice
Description

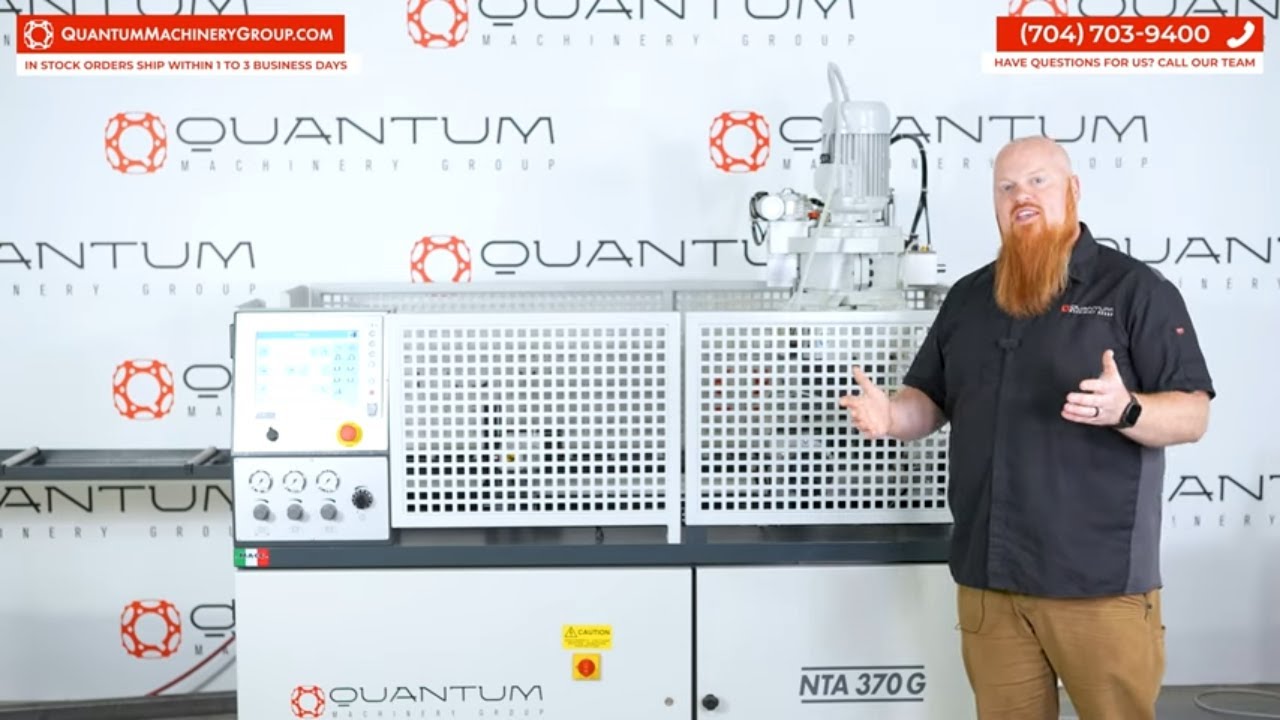

The Quantum Macc NTA 370 GA Vertical Double-Column, Fully-Automatic Cold Saw is the end-all-solution for most of your metal cutting needs! The NTA 370 GA has a fully-programmable, moveable head that can automatically miter up to 45 degrees right and can automatically miter up to 45 degrees left via the mounted CNC Touchscreen Control; which allows you to have complete control over the cutting lengths, mitering points, and much more! The NTA 370 GA sports a vice that is complete with an anti-burr device, and a high-quality, Italian motor pump for smooth blade lubrication. The quality, build, and innovation of this unit make it unique to the market, to help further advance any shop with their metal cutting needs, allowing you to get miles ahead of the competition!
Features
- Automatic CNC hydraulic circular cold saw performing cuts from 0° to 45° to the right and left produced according to the current safety standards
- Additional Vice
- Stroke feeder material 39”
- Overall dimensions: 11.5’ x 4’ x 6.3’
- Motor pump
- Vice pressure regulator
- Tempered and ground vertical slider
- Tempered and ground vice jaws
- Head lowering adjustment
- Service tools
- Instruction manual and exploded view of spare parts
- The NTA 370 GA is to be equipped with a 370mm blade
Operation
1. Material feeding.
2. Fixed vice lock.
3. Rotation of the blade and delivery of the coolant, head down-feed until the finishing of the cut, feeding carriage return until the fixed measure.
4. Head return, blade and coolant delivery stopping.
5. Vice opening.
6. Cycle repetition.
Maximum Cutting Capacities
- Round Tube Cutting at 90° (Straight Cut) - 3"
- Round Tube Cutting at 45° - 3"
- Square Tube Cutting at 90° (Straight Cut) - 3"
- Square Tube Cutting at 45° - 3"
- Rectangular Tube Cutting at 90° (Straight Cut) - 2.5" Height x 3" Width
- Rectangular Tube Cutting at 45° - 2.5" Height x 3" Width
Specifications
- Blade Size (Bore HSS): 370mm x 2.5mm x 32mm
- Maximum vice opening: 4.9" (125mm)
- 2 Speeds: 15 - 90 RPM
- Electrical Requirements: 480V / Three Phase / 60Hz
- Overall dimensions: 11.5’ x 4’ x 6.3’
- Machine Weight: 2,140 lbs
Optional Add-Ons
- Variable Speed Inverter
| Manufacturer | |
| SKU |
NTA 370 GA(480V)
|
| Shipping Method |
LTL Freight
|
| Weight |
2,150 lb
|
| Dimensions |
138 × 75 × 47 in
|
