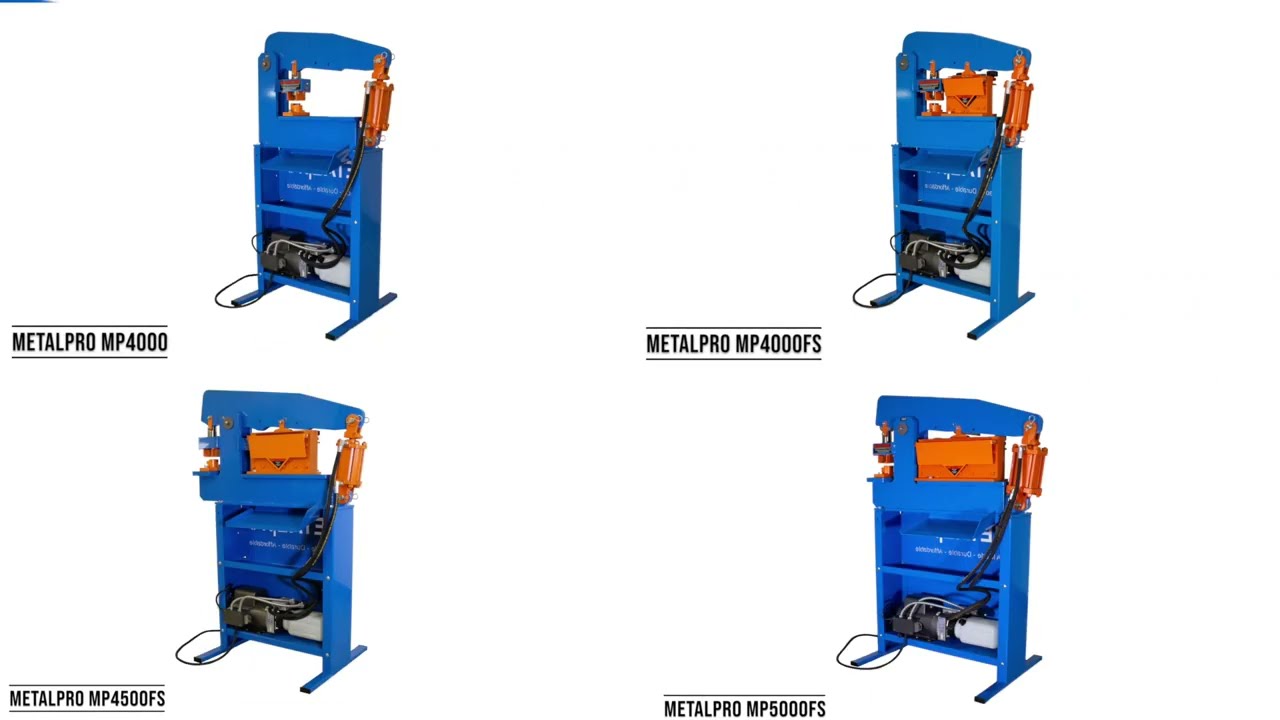

MetalPro 40 Ton 110V Single Phase Foot Switch Controlled Ironworker MP4000FS
| Manufacturer Part: | EMT ID: |
|
MP4000FS
|
10073
|
- 40 Ton Capacity
- 3/8" material shear capacity
- 1/2" material punch capacity
- 3 Year Warranty
Description
The MP4000FS is a 40-ton ironworker, powered by a 110V, single phase standard wall outlet or generator. Its compact, sturdy design boasts 40 tons of pressure at the punch station and 20 tons of pressure at the central workstation. This allows the user to punch a 1” round hole through 3/8” mild steel (capable of larger holes through thinner mild steel). Metalpro’s footswitch design controls a hydraulic power system.
This machine comes standard equipped with Metalpro’s 6 inch, 3 in 1 combination shear. The shear consists of a flat bar shear, angle iron shear and round/square rod shear, built into one singular unit. Metalpro stands behind their machines with a one-year limited manufacturing warranty. All Metalpro machines and accessories are proudly made in the USA and built to last.
Benefits
- Lower cost alternative to higher priced equipment
- More fabricating capabilities per dollar spent on equipment
- Just as fast and accurate as expensive machines
- Works in any shop – plugs into standard 110V 20 amp outlet
- True Blue Guarantee - 3 Year Warranty
Standard Features
- Punch capacity of 40 tons
- 3 3⁄4" throat depth
- 2" die holder, punch retaining nut and stripper
- Power cavity with 3-in-1 shear
- Guarding complies with ANSI B11-8 standards
- Meets American National Safety Standards for ironworkers
- Optional brakes and custom tooling sold separately
Specifications – Rated on 65,000 PSI Tensile
Frame Dimensions
- Width: 24"
- Height: 58"
- Length: 30 1⁄2"
- Weight: 435 pounds
Speed
- Strokes per minute: approximately 6-8
- Motor: 110V 1 1⁄2 horsepower
- Capacity: 40 tons
- Throat Depth: 3 3⁄4"
- Punch: 40 ton max capacity
Shear
- Flat bar: 3/8"x 4" and 1⁄4"x 6"
- Angle: 1⁄4"x 3"x 3"
- Rod: 3⁄4"
- Square: 5/8"
- Hydraulics: 2900 PSI
- Oil capacity: 1.5 US gallons
- Product Weight: 475 lbs
- Product Dimensions: 30" x 24" x 55 1⁄4"
Optional Accessories (sold separately)
- Brake: 20 tons
- Notcher: optional 1⁄2, 3⁄4, 1,1 1⁄4, 1 1⁄2, 2 inch sch. 40
- Picket tool: optional 1⁄2, 5/8, 3⁄4 inch
- Pressing: custom tooling available
- Round, square, oblong, and custom shaped punches and dies
- Wheel kit
| Manufacturer | |
| SKU |
MP4000FS
|
| Shipping Method |
LTL Freight
|
| Weight |
510 lb
|
| Dimensions |
40 × 30 × 60 in
|
| Country of Origin |
United States of America
|
| Warranty |
3 Years
|
