Laguna Tools Turner Series 60” 220V Single Phase CNC with 3HP Spindle MCNC Turner 60 1500-0233
*Image may display optional items not included with purchase.
You might also be interested in...
$18,995
| Manufacturer Part: | EMT ID: |
|
MCNC Turner 60 1500-0233
|
10782
|
- 6,000 – 24,000 RPM Spindle
- Maximum spindle length 60″
- Maximum diameter 8″
- Motor: 220V, Single Phase
Description

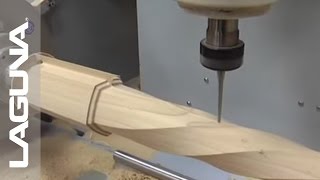

The CNC 3 Axis Turner is able to make incredibly detailed spindles. The resolution is 0.0003. The machine is powered by a Liquid-Cooled 3HP spindle capable of running very long run times without overheating. The Turners use Laguna’s Hand Held Controller. The design software is not included. Laguna likes to use Rhino Cad and Rhino Cam.
Features
- 220v 1 Phase /30 Amp
- 3 HP Very Quiet Liquid Cooled Spindle
- 3 Phase Industrial Induction Spindle, Water Cooled (Can Be Wired Single Or 3 Phase)
- 5,000 – 24,000 RPM Spindle
- Laguna HHC (Hand Held Controller)
- Maximum Diameter: 8″
- Spindle Length: 60"
Specifications
- Spindle Motor: 3HP 3 Phase Industrial Induction Spindle, Liquid Cooled
- Spindle RPM: 5,000 - 24,000
- Controller: Laguna HHC (Hand Held Controller)
- Volts: Single Phase Machine 220V / 30 amp
- Ball Screw on Vertical Axis: Yes
- Rack and Pinion on Horizontal Axis: Yes
- Max Diameter: 8"
- Max Travel Length: 46" or 72"
- Machine Foot Print: 73"L x 24"D x 65"H
| Manufacturer | |
| SKU |
MCNC Turner 60 1500-0233
|
| UPC |
195444260407
|
| Shipping Method |
Flatbed
|
| Weight |
2,200 lb
|
| Dimensions |
83 × 34 × 75 in
|
| Warranty |
1 Year
|
