Laguna Tools U|15 110V Single Phase 490 CFM Metal Dust Collector with 4.4 Gallon Collection Drawer MDC502L11015

Description

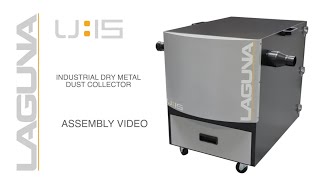

The Laguna Tools U|15 Metal Dust Collector combines power and efficiency in a compact design, perfect for smaller shops. Its 1.5 HP motor delivers up to 490 CFM, effectively capturing metal dust and shavings from multiple machines through two 3-inch inlets (+2-inch adapter).

Built with a durable steel cabinet and aluminum impeller, the U|15 is designed for consistent performance. The 4.4-gallon metal collection drawer is easy to empty, while the fire-resistant micro mesh filter ensures cleaner air. With low noise output at 71.5 dB and smooth-rolling casters, this dust collect provides reliable dust control without disrupting your workspace.

Specifications

• Motor: 1.5 HP
• Motor speed: 3450 rpm
• Amps: 10 FLA
• Switch: magnetic
• Power cord: 6 ft
• Plug: 5-15P
• Inlet size: 3” x 2 (+2” adapter)
• Noise volume: 71.5 dB
• Max air flow: 490 CFM
• Static pressure: 9.4” H2O
• Impeller size: 11” diameter
• Collection volume: 4.4 gallons
• Filter material: galvanized micromesh
• Filter size: 19.25” x 9.5” x 1.8”
• Construction: steel cabinet-aluminum impeller
• Start capacitor: 200F/125V
• Run capacitor: 300F/250V
• Wheels: 2.5” swiveling
• Electrical Requirements: 110V Single Phase 60Hz
• Machine Dims: 35.5” x 32” x 30”
• Approx Weight: 165 lbs

Optional Add-Ons

• D|Flux Remote Control
• Cyclones caster wheel (no brakes)
• Cyclones caster wheel with brake
• Drum bags
• Cabinet filter bags
