Laguna Tools P12|5 5HP 220V Single Phase Panelsaw with 63" Sliding Table MPSP12-5-0135
| Manufacturer Part: | EMT ID: |
|
MPSP12-5-0135
|
14200
|
- Sliding Table: 63″
- Rip Fence: 51″
- Main Blade Speed: 4000 RPM
- Motor: 5HP, 220V, Single Phase
Description

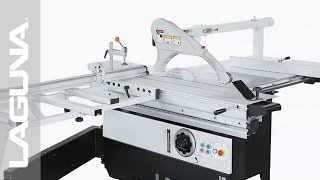

The P12|5 was designed as a more compact version of our popular P12|8 and P12|10 panelsaws. The P12|5 features a 63″ sliding table design, 5HP main motor, 3/4 HP scoring motor and has a swing-away overhead guard. The telescoping cut-off fence extends to 134″ and has a 51″ rip capacity.
The 63 sliding table is constructed of anodized aluminum. The dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly.
The European style 51 rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar. On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally.
The overhead guard comes standard with quick-change 90° and 45° guards; you can switch from one to the other in a matter of seconds. A nice detail is the swing-away function that allows you to quickly move the guard out of the way. Dust collection hookup is out of the way at the end of gantry (5 ).
The heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 108 ), 45° miter and is ergonomically designed to make it easier to read the tape.
Inside the P12|5 you will find heavy castings, solid gears and precision-machined trunnions mounted onto the solid steel frame. The Heavy Duty motor is equipped with soft start to minimize initial amperage draw.
The P12|5 comes standard with hold-down clamp, rip shoe and push handle.
Features
- Motor: 5HP Main
- Motor: 3/4 HP Scoring
- Volt: 220, 1 phase, 60 Hz.
- Blade Capacity: 12″, 14″/300mm, 355mm
- Max. Blade: 14″/355mm (minimum height when lowered: 1 /25mm)
- Max Scoring Blade: 4-3/4″ /120mm
Specifications
- Motor: 5HP Main
- Motor: 3/4 HP Scoring
- Volt: 220, 1 Phase, 60 Hz
- Blade Capacity: 12″, 14″ (300mm, 355mm)
- Max Blade: 14″ (355mm)(Minimum Height When Lowered: 1″/25mm)
- Max Scoring Blade: 4 3/4″ (120mm)
- Scoring Adjusting: T-Handle Through Cast Top
- Arbor: 30mm (Main), 20mm (Scoring)
- Max Cutting Height 90° 14″/35mm Blade: 4 1/2″ (155mm)
- Max Cutting Height 90° 12″/305mm Blade: 3 1/2″ (90mm)
- Max Cutting Height 45° 14″/355mm Blade: 2 3/4″ (70mm)
- Max Cutting Height 45° 12″/305mm Blade: 2 3/8″ (62mm)
- Main Blade Speed: 4000 RPM
- Scoring Blade Speed: 8000 RPM
- Dust Collection Port Saw: 4″ (100mm)
- Sliding Table: 63″ (1600mm)
- Sliding Table Width: 12″ (305mm)
- Main Cast Table: 21 1/2″ x 35 1/4″
- Rip Fence: 51″ (1300mm)
- Rip Fence Micro Adjust: Included
- Rip Fence Bar: 1 5/8″ (40mm) Solid Steel Micro Polished
- Push Handle: Included
- Rip Shoe: Included
- Hold Down Clamp: Included
- 32″ x 12″ Steel Extension Table: Included
- Crosscut Fence: Flip-Stops
- Crosscut Fence Readout: Inch/Metric
- Crosscut Max Collapsed: 73″
- Crosscut Fence Max Extended: 134″
- Shipping Dimensions: 83″ x 46″ x 46″
- Weight (Net/Ship): 1405/1525 lbs
| Manufacturer | |
| SKU |
MPSP12-5-0135
|
| UPC |
195444075681
|
| Shipping Method |
LTL Freight
|
| Weight |
1,525 lb
|
| Dimensions |
70 × 50 × 66 in
|
| Country of Origin |
Taiwan
|
| Warranty |
2 Years
|
| Warranty Details |
Must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty.
|
