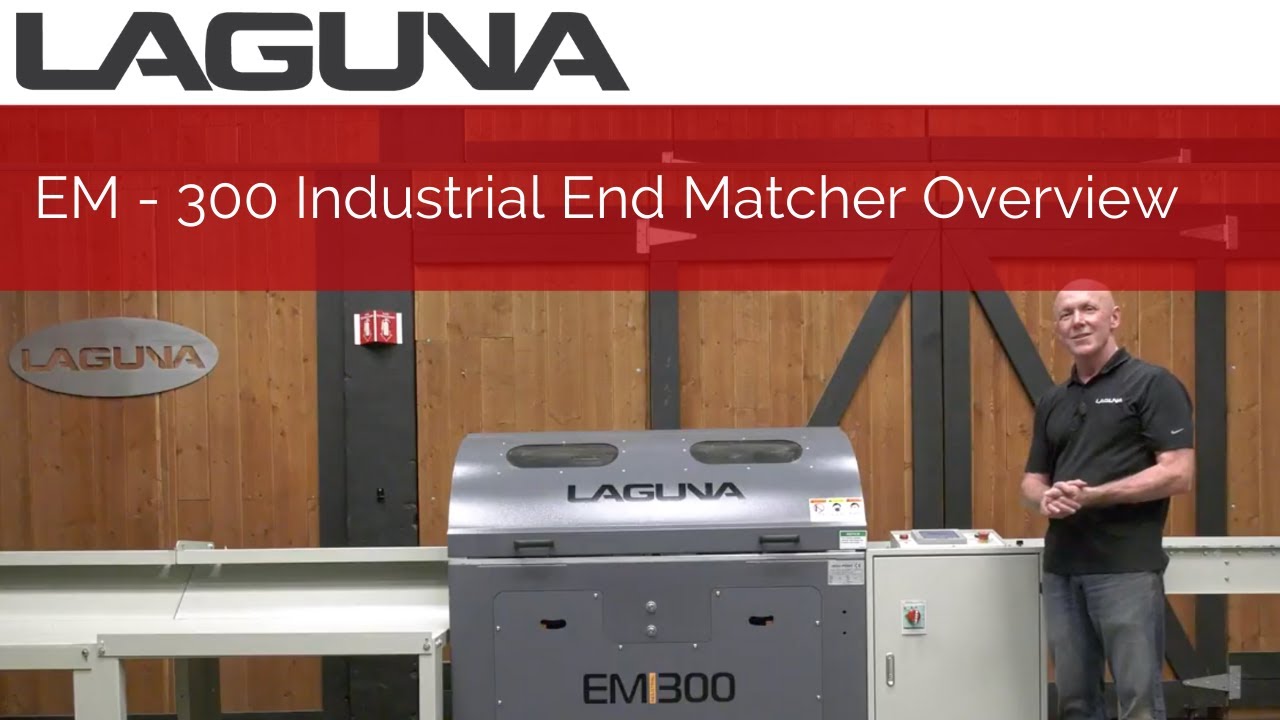

Laguna Tools EM-300 460V Three Phase 12” Industrial End Matcher with Variable Feed Speed EM-300

Description

Laguna’s new through-feed end matcher is the perfect solution to produce end matched tongue and groove joints for hardwood flooring and paneling. The EM is equipped with a continuous feed conveyor that handles any random length (min 11”) and utilizes 2 powerful 10HP motors to cut tongue and groove simultaneously. PLC control touch screen can keep track of total linear feet cut as well as piece count.

Features

• Cutterhead type: TCT disposable inserts
• Cutterhead travel system: mechanical actuator
• Clamping: clamps on top and side
• Controls: manual or automatic
• CSA Standard

Specifications

• Material Width
  • Min: 1½”
  • Max: 12”
• Material Thickness
  • Min: ¼”
  • Max: 1”
• Board Length
  • Min: 11”
  • Max: Unlimited
• Max Boad Weight: 35 lbs
• Feeding pressure roller motor: 1HP w/1HP inverter
• Infeed conveyor table motor: Variable feed 1HP inverter
• Cutterhead feeding motor (forward & backward): ½HP w/1HP inverter
• Cutterhead spindle diameter: 1½”
• Variable feed speed: 0-295’
• Cutterhead speed: 7000 rpm
• Cutterhead spindle motors: 10HP x 2
• Electrical Requirements: 460V Three Phase
• Machine Dims: 59” x 48” x 54”
  • 10ft Infeed Conveyor
  • 8ft Outfeed Table
• Approx Weight: 2420 lbs
