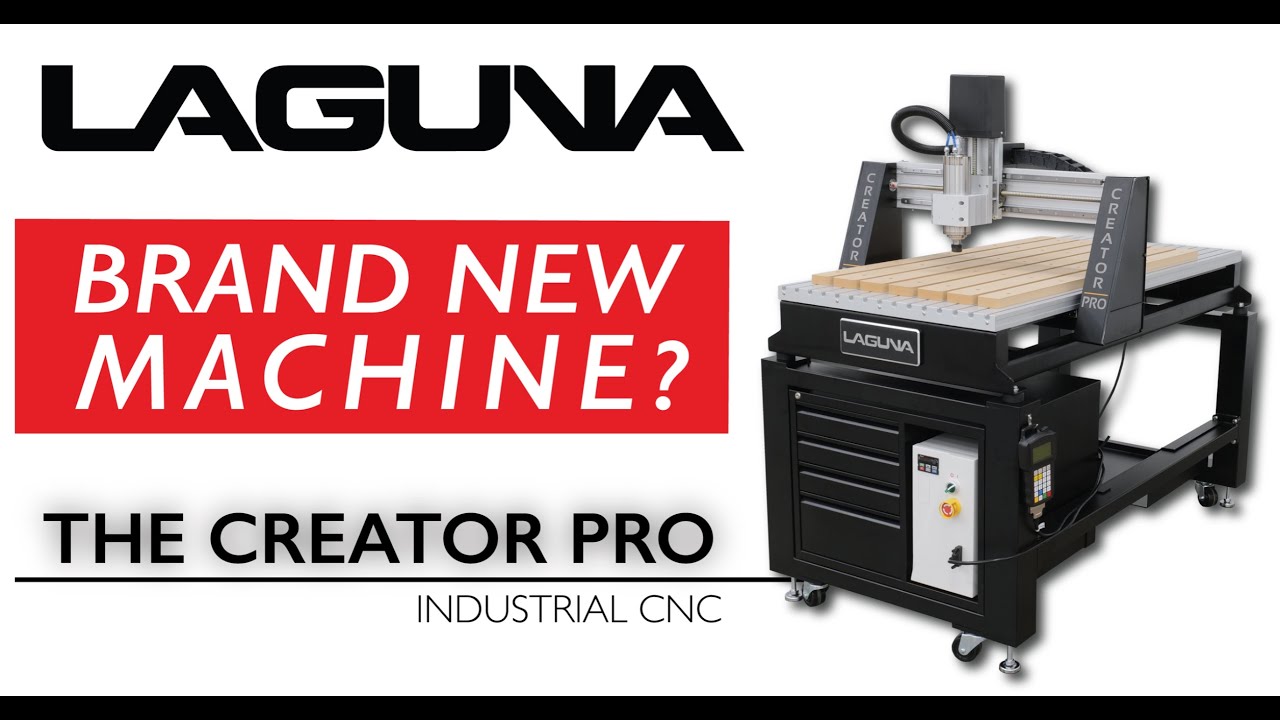

Laguna Tools Creator Pro 220V Single Phase 24” x 48” Desktop CNC Router I-24P
NEW
*Image may display optional items not included with purchase.
You might also be interested in...
| Manufacturer Part: | EMT ID: |
|
MCNC Creator I-24P
|
19715
|
- X Axis Travel: 24”
- Table Work Area: 28.4” x 63”
- Spindle Speed: 0-24,000 rpm
- Max Gantry Clearance: 6½”
Description
The Laguna Creator Pro offers all of the great features you’ve come to know and love but add increased holding torque with 48V stepper motors, an improved cooling system, and higher spindle performance thanks to an upgraded VFD.
The updated Creator Pro offers 4-axis capability, powerful electro-spindle performance, and rotary machining capability in a compact industrial machine.
This machine provides a full 6.5” gantry clearance and a quiet yet powerful 3HP electro-spindle with an integrated liquid cooling system.
The Laguna Creator Pro also offers precision ball screws, prismatic guides, a robust steel frame, and interlocking aluminum table.
Features
- CSA Standard
- 3HP Liquid Cool Spindle/ ER-20 Collet
- Prismatic Guides in all axes
- Precision Ball Screws in all axes
- Tool Touch Off Puck included
- Controller
- RichAuto B18 DSP 4-Axis Controller
- CNC Motion Control System
- USB Port for easy file transfer (no PC required)
- Liquid cooled onboard cooling system
- Tool touch-off device
- Gantry bridge: high rigidity aluminum extrusion
- Working table: high rigidity aluminum extrusion
- Gantry Supports: steel
- 4th Axis Ready
- Parts included:
- Dust shoe
- Hold down clamp set (4 total clamps)
- ½” & ¼” collets
- Collet wrenches
- Integrated MDF spoil board
Specifications
- Table Size: 2’ x 4’
- X Axis Travel: 24”
- Y Axis Travel: 47.63”
- Z Axis Travel: 5.9”
- C Axis Travel: 360°
- Table Work Area: 28.4” x 63”
- Spindle Configuration: EP20
- Electro Spindle: 3HP / 2.2kW
- Spindle Speed: 0-24,000 rpm
- Rapid Shuttle Rate: 300 IPM
- Precision Linear Guideway: X/Y/Z
- Precision Ball Screw: X/Y/Z
- Ball Screw Diameter: 16mm
- Positional Accuracy: +/- 0.00393”
- Max Gantry Clearance: 6½”
- Electrical Requirements: 220V Single Phase 50-60Hz 10A
- Machine Dims: 63” x 38” x 31”
- Approx Weight: 405 lbs
Optional Add-Ons
- UCCNC PC Control
- Stand
- Toolbox
- 8pc Bit Set
- 4th Axis Rotary Kit
- LED Lamp Kit
- Overhead Dust Collection Arm
- Vacuum Hold Down Kit
| Manufacturer | |
| SKU |
MCNC Creator I-24P
|
| UPC |
195444293771
|
| Shipping Method |
LTL Freight
|
| Weight |
450 lb
|
| Dimensions |
70 × 48 × 40 in
|
