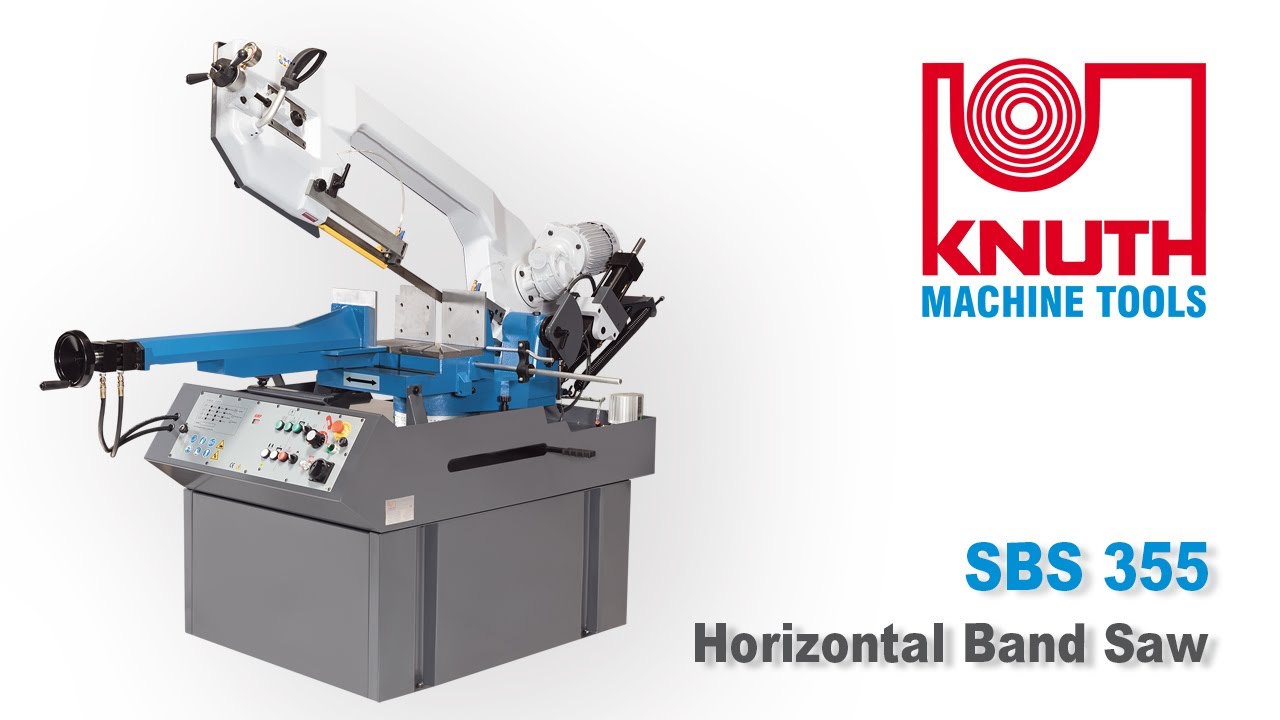

Knuth 3HP SBS 355 Dual Miter Band Saw 152788

Description

The SBS Series Universal Workshop Band Saws are compact machines with swiveling saw frames. The saw frame swivels to right and to the left. The user can guide the saw frame by hand or via the hydraulic valve controlled hydraulic feed. Their design and equipment make these machines very suitable for efficient machining of small batches.

Features

• Rigid vise with lateral slide, long stroke and long guideways in the movable jaw segments
• The one-piece cast-iron saw frame is torsion-proof and swivels 60° to the right, and 45° to the left
• Rigid saw blade guides offer a wide adjustment range for workpieces with small and large cross-sections
• The combination of carbide jaws and adjustable ball bearing guides ensure precision cuts
• A wide bi-metallic saw blade ensures additional stability during heavy machining operations
• Saw frame features manual feed for sensitive workpiece characteristics
• Hardened, polished helical gear with large bronze drive wheel for long service life
• Quiet operation, short machining times and easy handling ensure increased productivity
• Powerful motor for continuous operation
• High-capacity coolant system is included
• Includes base
• Hydraulic quick-action clamping fixture with proven performance in series production ensures constant tension to the last cut
• Infinitely variable saw blade speed for optimum machining of a wide range of materials and profiles
• Easy handling - at the end of the cut, the integrated hydraulics lift the saw frame to the home position
• One-piece cast-iron saw frame
• Rigid vise with long stroke
• High cutting capacity
• Compact design
• Quick-action angle adjustment left and right

Standard Equipment

• 1 saw blade
• Coolant system
• Base
• Pressure gauge for saw blade tension
• Hydraulic cylinder for saw frame
• Inverter for infinitely variable saw blade speed
• Hydraulic workpiece clamping
• Operator instructions

Specifications

• Cutting Capacities
  • Cutting capacity 0°
    • Round: 14”
    • Square: 12”
    • Flat (length x width): 12” x 21”
  • Cutting capacity 45° L
    • Round: 12”
    • Square: 11”
    • Flat (length x width): 11” x 11”
  • Cutting capacity 45° R
    • Round: 14”
    • Square: 11”
    • Flat (length x width): 11” x 14”
  • Cutting capacity 60° R
    • Round: 9”
    • Square: 7”
    • Flat (length x width): 7” x 9”
  • Cutting speed: 66 / 262 (infinitely variable) fpm
• Drive Capacity
  • Motor rating main drive: 3 Hp
  • Supply voltage: 400 V
• Measure and Weights
  • Overall dimensions (length x width x height): 86” x 39” x 45”
  • Weight: 1,771 lbs.
  • Saw blade dimensions: 148” x 1” x 0.9 mm

Options

• 119155 – Bi-Metal Bandsaw blade (3/0.1 T/")
• 119156 – Bi-Metal Bandsaw blade (4/0.2 T/")
• 119157 – Bi-Metal Bandsaw blade (5/0.3 T/")
• 170360 – Feed roller table, 3 ft, for HB-A/SBS
• 170361 – Feed roller table, 6 ft, for HB-A/SBS
• 170362 – Feed roller table, 9 ft, for HB-A/SBS
• 170363 – Discharge roller table, 3 ft, with rod stop for HB-A/SBS
• 170364 – Discharge roller table, 6 ft, with rod stop for HB-A/SBS
• 170365 – Discharge roller table, 9 ft, with rod stop for HB-A/SBS
