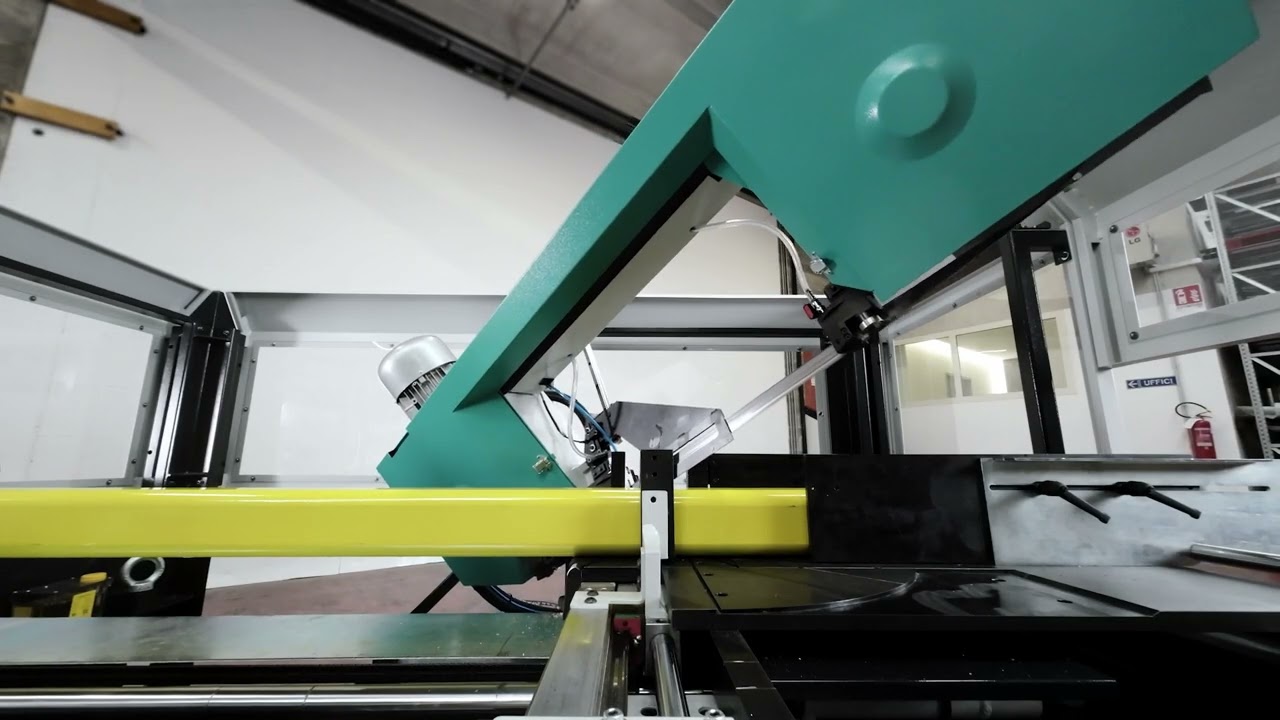

Kalamazoo Machine Tools 460V Three Phase 12” Round Capacity Automatic Mitering Bandsaw Ktech352

Description

Kalamazoo Machine Tool’s Ktech 352 is a fully automatic bandsaw with NC controlled mitering. Featuring an intuitive 10” touch screen display. All miters are input to the controller and the saw feeds and miters as needed. Flood and spray mist coolant included.

Features

• Fully automatic, fully hydraulic heavy one-piece unified construction for superb alignment and accuracy
• Fully hydraulic
• Automatic mitering up to 60 degrees to the right and 45 to the left
• Feeder stroke 45” w/unlimited indexes
• Scrap end 6”
• Carbide guides w/rollers
• Time saving material sensor
• Easy setup
• Job memory
• Ball screw feeder +/- 0.005” per index

Standard Equipment

• (1) bi-metal sawblade
• Low voltage control
• TEFC 3 phase drive motor
• Totally enclosed worm gear transmission
• Full coolant system
• Full blade guarding
• Operators manual parts list/schematics
• Tool kit

Specifications

• Blade: 11’ 1”x1”
• Blade Speeds: 60-360 fpm
• Blade Drive: 3HP
• Electrical Requirements: 460V Three Phase
• Machine Dims: 116” x 95” x 75”
• Approx Weight: 4,700 lbs

Capacities

• Round
  • 90°: 12”
  • 45° left/right: 8.75”
  • 60° right: 6.5”
• Square
  • 90°: 9.75”
  • 45° left/right: 7.75”
  • 60° right: 5.75”
• Rectangle
  • 90°: 13.5” x 7.75”
  • 45° left/right: 7.75” x 7.75”
  • 60° right: 6.5” x 3.75”

Optional Add-Ons

• AC200 5’ x 15” wide freestanding conveyor
• AC102 6’ Worktable conveyor infeed/outfeed mounted to machine w/coolant tray
• AC103 additional 6’ connecting to AC102
