Jet JWBS-18SFX 115V Single Phase 18” Bandsaw with Versatile Cutting Angles JT1-549
| Manufacturer Part: | EMT ID: |
|
JT1-549
|
19698
|
- Wheel speed: 6400 rpm
- Max saw blade width: 1¼”
- Table size: 27¼” x 20”
- Table tilt: Left 5°, Right 45°
Description

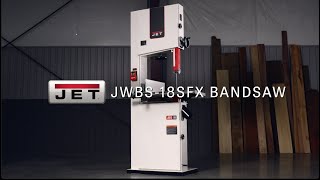

The JET JWBS-18SFX is a versatile and reliable 18” bandsaw designed to meet the needs of both amateur and professional woodworkers. It features a 1.75HP motor powered by a standard 115V outlet, providing ample power for a wide range of woodworking tasks. This bandsaw shares many of the premium features found in the 3HP model, including the safety foot brake for blade stoppage, ergonomically designed knobs for smooth adjustments, and a clear view window for precise blade tracking. Its dual 4” dust collection ports ensure efficient removal of sawdust and chips, promoting a cleaner working environment. The bandsaw’s table can tilt from 5° left to 45° right, allowing for versatile cutting angles. With a sturdy cast iron trunnion for maximum stability and a heavy-duty fence system, the JET JWBS-18SFX is designed to deliver consistent and accurate cuts, making it an excellent addition to any woodworking shop.
Features
- Efficient 1.75HP motor: provides ample power for a variety of woodworking tasks, ideal for home and professional use
- Safety foot brake: ensures immediate blade stoppage for enhanced safety
- User-friendly adjustments: ergonomically designed knobs and handwheels for smooth and precise modifications
- Blade tracking window: offers a clear view for accurate blade tracking
- Effective dust collections: dual 4” ports collect dust and chips at the source, keeping your workspace clean
- Quick blade tensioning: heavy-duty system with a visible scale for quick and easy blade tension adjustments
- Superior blade support: rigid, four-sided guide post with rack and pinion adjustment for optimal stability
- Durable cast iron trunnion: ensures maximum support and stability during cutting operations
Specifications
- Blade wheel diameter: 18½”
- Wheel speed: 6400 rpm
- Max saw blade width: 1¼”
- Min saw blade width: 1/8”
- Cutting capacity height: 16”
- Cutting capacity width: 18”
- Dust port min CFM required: 600 CFM
- Table size: 27¼” x 20” x 1-5/8”
- Table tilt: Left 5°, Right 45°
- Recommended circuit size: 20Amps
- Table height from floor: 37”
- Prop 65: Cancer and reproductive harm
- Table T-slot: ¾”
- Base footprint: 28¾” x 18-3/8”
- Electrical Requirements: 115V Single Phase 1.75HP 12Amps
- Machine Dims: 31-7/8” x 38” x 79¼”
- Approx Weight: 383 lbs
| Manufacturer | |
| SKU |
JT1-549
|
| UPC |
731325263824
|
| Shipping Method |
LTL Freight
|
| Weight |
470 lb
|
| Dimensions |
40 × 45 × 85 in
|
