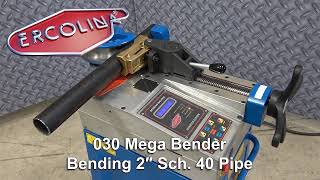

Ercolina 220V Three Phase Non-Mandrel Mega Bender Rotary Draw Bender with 2½” Tube Bending Capacity 030

Description

Ercolina 030 Mega Bender is ideal for producing consistent quality bends in pipe, tubes, squares, rectangular, solids, and other profiles.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, Ercolina machines will increase your profit, as well as improve product quality and finish.

Features

• Ideal for producing consistent quality bends in large diameter pipe, tube, squares, rectangular, solids, and other profiles
• Bend to CLR as small as 2D
• Touch screen programming of bend angle with system diagnostics in multiple languages
• Quick-change tooling system with multiple radii available
• Digital display of bend angle
• Bend any angle to 180° with independent material spring-back compensation for each bend
• Foot pedal control for hands-free operation
• Swing away counterbending die vise for easy material handling
• Counterbending die vise position monitored electronically for accuracy and repeatability
• Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
• 030 machine mandrel ready; optional tables available
• Compact design with base wheels and lift handle
• Heavy-duty gear case
• No hydraulic components

Specifications

• Tube Capacity (min): ¼”
• Tube Capacity (max): 2½”
• Pipe Capacity (max): 2” Sch. 40
• Centerline Radius (min): 2 x Ø
• Centerline Radius (max): 15”
• Degree of Bend: 0-210°
• Bending Speed: Variable  0.6 to 2.2 RPM
• Programming: NC with Touchpad / (30) programs / (9) bends per program
• Material Positioning Table: Available
•  Voltage: 220V Three Phase
• Dimensions (LxWxH): 27” x 15” x 36”
• Weight: 480 lbs

Bending Capacities

• Pipe
  • Max Diameter: 2.000
  • Max Wall Thickness: Sch. 40
• Mild Steel Tube
  • Max Diameter: 2.500
  • Max Wall Thickness: 0.120
• Soft Brass
  • Max Diameter: 2.875
  • Max Wall Thickness: 0.203
• Stainless Steel:
  • Max Diameter: 3.000
  • Max Wall Thickness: 0.083
• Hydraulic Tube
  • Max Diameter: 2.750
  • Max Wall Thickness: 0.120
• Hard Copper & Aluminum
  • Max Diameter: 3.000
  • Max Wall Thickness: 0.236
• Round Solids
  • Max Diameter: 1.50
• Rectangular Solids
  • Max Diameter: 0.750 x 2.375
• Rectangular Tube
  • Max Diameter: 1.000 x 2.500
  • Max Wall Thickness: 0.120
• Square Tube
  • Max Diameter: 2.000 x 2.000
  • Max Wall Thickness: 0.120
• Solid Square
  • Max Diameter: 1.250 x 1.250

Options

• 5’, 10’, or 20’ tables available
• Individual tooling available
• 220V Single Phase available
