Ercolina 8HP 480V Three Phase 60 Ton Era Horizontal Hydraulic Press EP50H1
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
EP50H1
|
16825
|
- Hydraulic Force: 60 tons
- Tube Diameter Max. Expansion / Reduction: 3-1/2” – 4-1/2” x 0.120
- Folding Capacity – Steel Flat Bar: 7-7/8” x 3/4”
- Working Speed: Variable programmable
Description

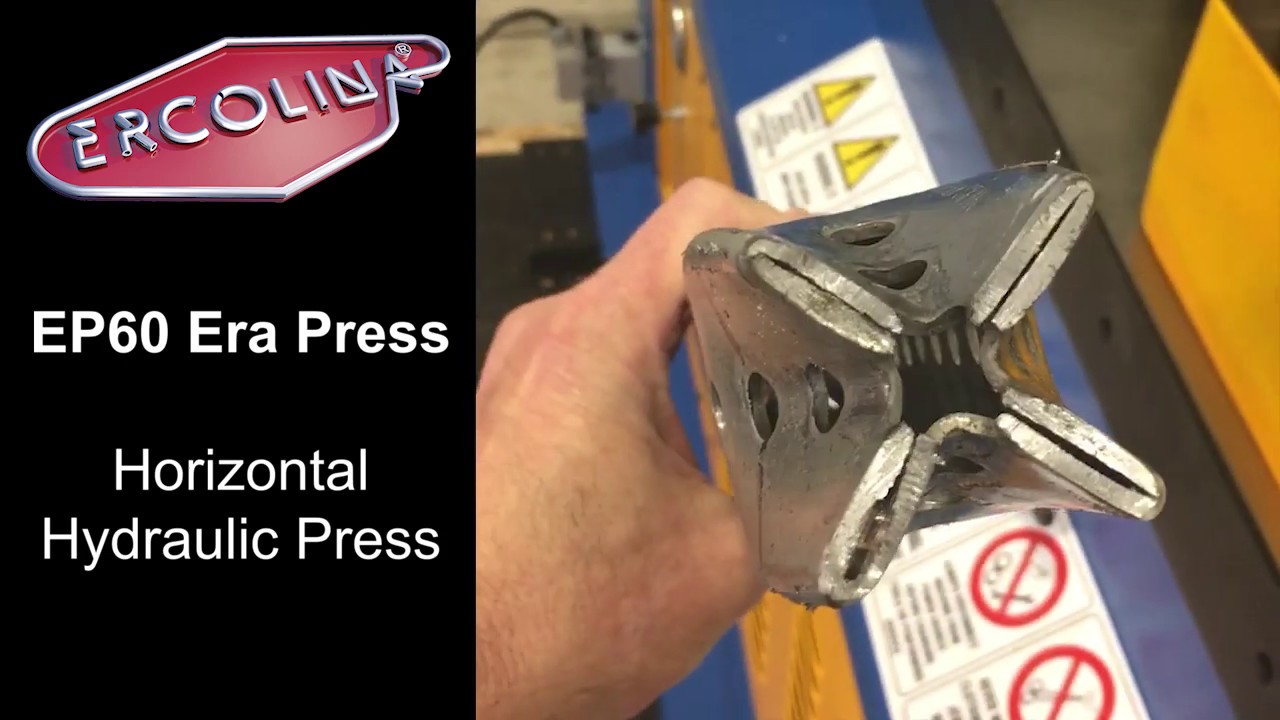

Ercolina’s EP60 (60 ton hydraulic force) Era Press metalworking machine is a programmable tube and pipe swaging machine and metalworking press.
Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, their machines will increase profit, as well as improve product quality and finish.
Features
- Expands and reduces tube and pipe ends
- Performs metalworking press operations
- Tooling available for tube flaring & flanging
- Square and rectangular tooling available
- Programmable touchpad control with backlit LCD display
- Heavy duty structure and rigid components
- Adjustable working speed and hydraulic force
- Quick change modular tooling
- Remote pendent with low voltage controls
- Programmable cylinder positioning
- Hydraulic material clamping system
- Hand-held remote control certified class three safety
- Unlimited program storage with USB
- Punch or finger-style swage tooling
- Energy saving motor shuts off when not in use
- Swage square and rectangular tube
- LCD touch screen control
- Utilizes punch or finger-style swage tooling
Standard Equipment
- Tube Expansion Tie Bar
- Prism Holder
Specifications
- Tube Diameter Max. Expansion / Reduction: 3-1/2” – 4-1/2” x 0.120
- Square Tube: 2-1/2”
- Folding Capacity – Steel Flat Bar: 7-7/8” x 3/4”
- Working Speed: Variable programmable
- Programming: LCD touch screen
- Hydraulic Force: 60 tons
- Horizontal Press: Yes
- Maximum Stroke of Cylinder: 11-1/2”
- Maximum Swage Depth*: 8”
- Voltage Requirement: 480V 3ph
- Motor: 8 HP 50-60Hz
- Motor Speed: 3650 RPM
- Dimensions (L x W x H): 48” x 26” x 44”
- Shipping Weight: 2,300 lbs.
Options
- Side shift feature reduces tooling changeover
*Swage depth dependent on finger-style tools or standard reduction style – must be specified at time of order.
Manufacturer | |
SKU |
EP50H1
|
Shipping Method |
LTL Freight
|
Weight |
2,400 lb
|
Dimensions |
53 × 31 × 49 in
|
Country of Origin |
Italy
|
Warranty |
1 Year
|
