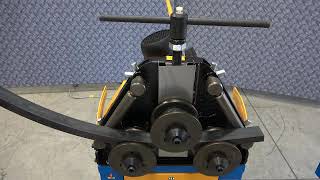

Ercolina 220V Single Phase Manual Angle Roll Bender with 1½” Pipe Bending Capacity and Universal Tooling CE35
*Image may display optional items not included with purchase.
You might also be interested in...
| Manufacturer Part: | EMT ID: |
|
CE35
|
4734
|
- Pipe Capacity (max): 1½” Sch. 40
- Angle Capacity (max): 1½” x 1½” x ¼”
- Roll Shaft Diameter: 40mm
- Operating Voltage: 220V Single Phase
Description
Ercolina’s CE35 angle roll models offer convenient single-phase power and manual center roll positioning. Vertical or horizontal operating position available.
Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, Ercolina machines will increase profit, as well as improve product quality and finish.
Features
- 40mm roll shaft diameter
- Bending speeds 20% faster than competitive machines
- Universal tooling set included with each machine
- Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
- Roll shafts supported with conical steel bearings on each side of A Frame
- Heavy duty structure and rigid components for high section modulus ratings
- Two bending speeds
- Reinforced engineered mainframe design proven to outperform competitive models
- Heavy duty gearbox drives lower roll shafts
- Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
- Control tower with foot pedal operation of roll movement
- All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity
Specifications
- Pipe Capacity (max): 1½” Sch. 40
- Angle Capacity (max): 1½” x 1½” x ¼”
- Tube Capacity (max): 2” (0.156 wall)
- Roll Shaft Diameter: 40mm
- Center Roll Positioning: Manual
- Shaft Speed: 6 or 12 RPM
- Universal Tooling (included): 6⅝” O.D.
- Programming: Not available
- Distance between shafts: 11⅜″
- Operating Voltage: 220V Single Phase
- Dimensions (LxWxH): 27½” x 25½” x 59”
- Weight: 480 lbs
Options
- Anti-twist correction system required for angle iron “Leg In” applications
- Small Radius Tooling (C4RR)
- Fabricator's measuring set (KARC)
| Manufacturer | |
| SKU |
CE35
|
| Shipping Method |
LTL Freight
|
| Weight |
480 lb
|
| Dimensions |
48 × 48 × 65 in
|
| Country of Origin |
Italy
|
