Dyna-Cut 480V Three Phase Metal Soffit and Siding Electric Power Shear PRB-18

Description

Are you tired of cutting metal siding by hand? Dyna-Cut has the perfect solution!

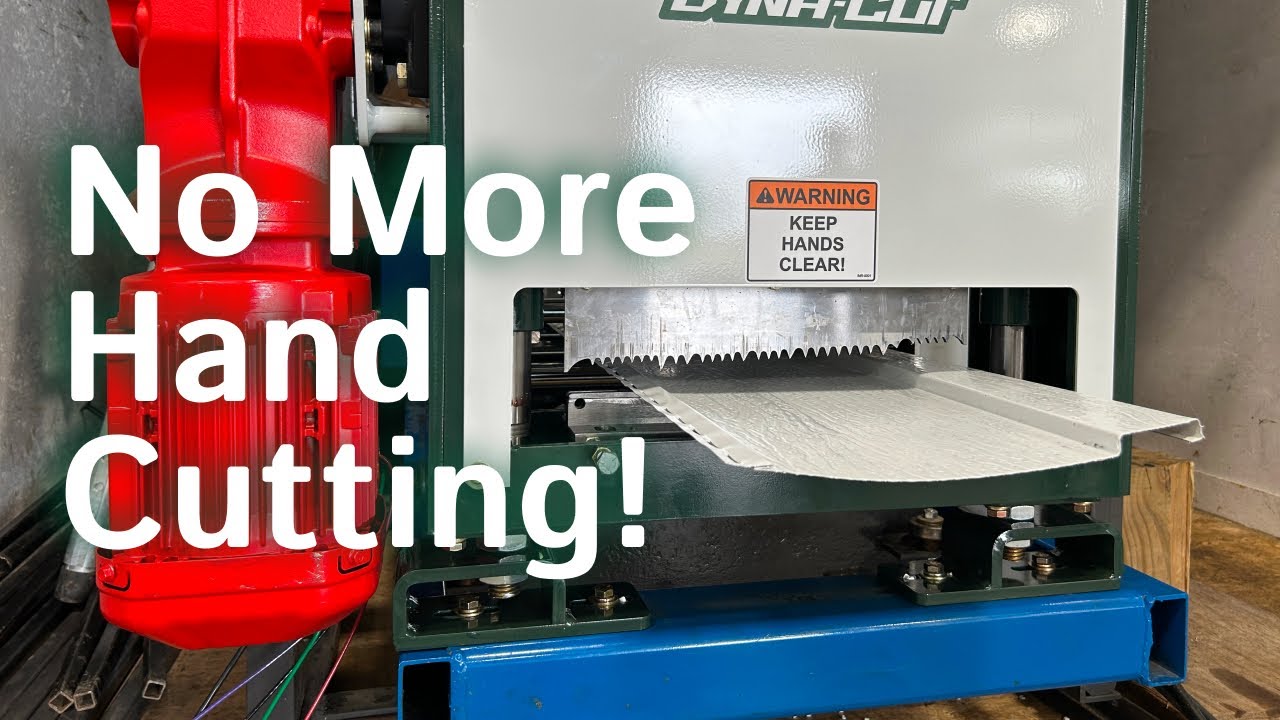

Introducing the PRB-18, the ultimate tool for cutting specialty siding. Engineered for versatility, the PRB-18 effortlessly handles various siding types, including board and batten, lap siding, and soffit. Whether you use a mobile reformer or require a shear for pre-cutting soffit, the PRB-18 is designed to meet your needs with precision and efficiency.

Why Choose the PRB-18?

• Precision and Efficiency: achieve clean, accurate cuts with minimal effort
• Robust and Reliable: designed for longevity, ensuring your investment is protected
• Enhanced Productivity: fast cutting action

Features

• Cuts specialty siding profiles
• Available as either a stand-alone model or integrated WITH roll former
• Gives you the ability to cut soffit to length
• Fast cutting – 1.5 second cycle time
• Durable Construction: built with heavy-duty materials and hardened tool steel blades for long-lasting performance and minimal downtime
• Included Blade Sets: comes with 3 blade sets, with the profiles of your choice

Profiles the PRB-18 Shear Will Cut

• 6, 8, and 10” Board & Batten
• 6, 8, and 10” Plank
• 3, 4, and 5” Double Lap Siding
• Single Lap Siding
• 12, 16” Soffit

Specifications

• Electrical Requirements: 480V Three Phase
• Cutting Cycle: 1.5 second
• Machine Dimensions (LxWxH): 41” x 40” x 31”
• Machine Weight: 390 lbs

 Optional Add-Ons

• Have the Machine Integrated with your Roll-Former
• Standing Seam Profile Options
• Stationary Base
• Infeed and Outfeed Tables
• Back-gauge Stop with Measuring Tape
