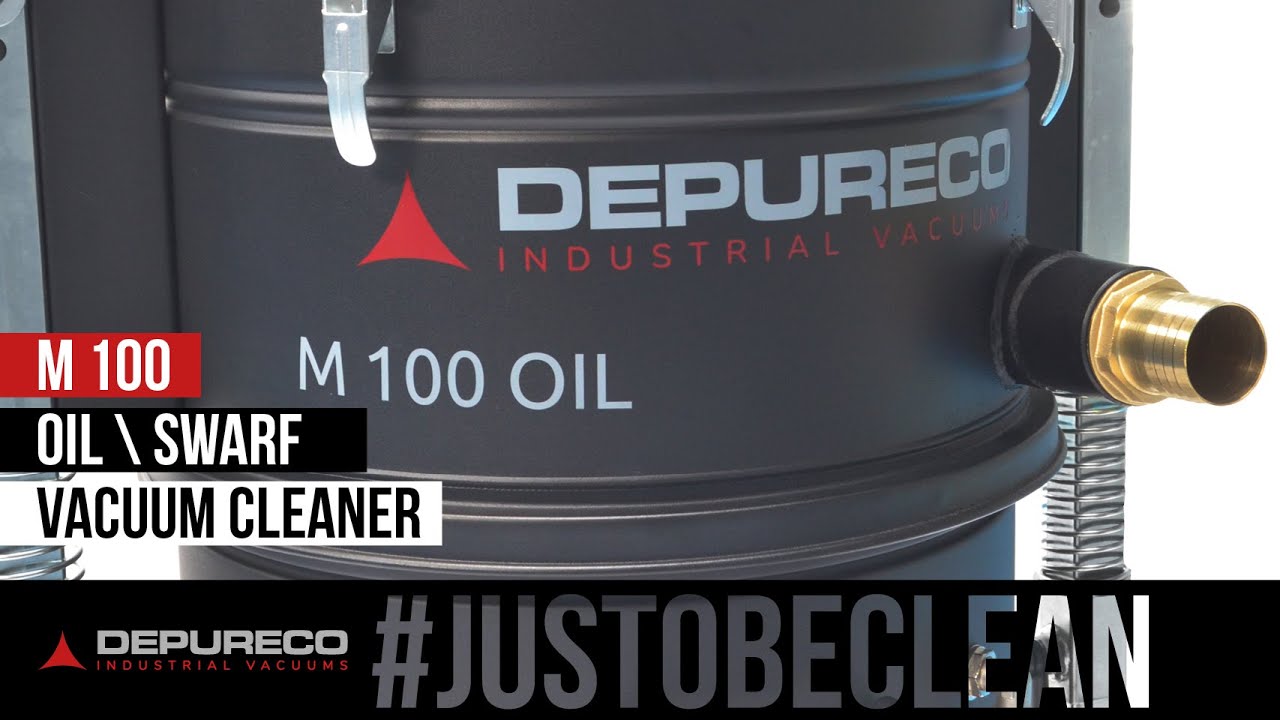

Depureco 100 Liter Industrial Vacuum Cleaner with Gravity Discharge M100 OIL
| Manufacturer Part: | EMT ID: |
|
M100 OIL
|
19115
|
- Noise level: 72dB
- Suction time: 100 Liters/26 Seconds
- Maximum vacuum: 250mBar
- Maximum air flow: 570 m3/h
Description
The M100 OIL industrial vacuum is designed to vacuum and separate oil and swarf from the tanks, on the tables, and guides of tooling machines. Suction is generated by three motors that work in parallel and ensure an excellent suction speed. The container of this vacuum cleaner is equipped with a metal basket that is used to separate the solid part from the liquid part and a 150-micron nylon filter for more effective filtration. The floating level switch automatically stops the vacuum upon reaching maximum capacity in the container (100 lt of emulsified oil vacuumed). There is a level indicator on the outside of the container that indicates the amount of liquid inside the machine. Discharge takes place by gravity thanks to a 1” manual ball valve situated at the bottom of the container. The M100 OIL industrial vacuum container is mounted on wheels, and can be lifted with a forklift, to allow the operator to empty the vacuumed material easily; this way the liquid can be poured into a collection of sediment bins.
Features
Suction Unit
The vacuum is generated by 3 by-pass motors. Each motor is managed by an independent switch, permitting the operator to control the intake performance. The motors are located in a sturdy casing, with an insulating sponge to maintain a low noise level.
Filtering Element
The collected liquid goes through a PPL filter with a 150µ efficiency. Thanks to it it's possible to separate even the smallest solid particles, making the filtered liquid suitable for reuse. The filter can be washed and reused easily. An disposable TNT filter (efficiency 100µ) is also available.
Specifications
- Motor
- Type: by-pass
- Voltage: 230 V
- Maximum vacuum: 250 mBar
- Maximum air flow: 570 m3/h
- Noise level: 72 dB(A)
- Engines: 3
- Frequency: 50/60 Hz
- Power: 5.2 HP
- Suction time: 100/26
- Primary Filter
- Media: Nylon
- Machine
- Suction inlet: 50 Ø mm
- Dimensions: 700 x 450 mm
- Height: 1400 mm
- Weight: 90 Kg
- Liquid capacity: 100
- Solid capabilities: 50
- Oil filter: Included
- Filtration efficiency: 150
- Type of discharge: By gravity
Options
- Oil & Swarf Kit
- Oil & Swarf Pro Kit
| Manufacturer | |
| SKU |
M100 OIL
|
| Shipping Method |
LTL Freight
|
| Weight |
220 lb
|
| Dimensions |
30 × 41 × 77 in
|
| Country of Origin |
Italy
|
| Warranty |
1 Year
|
