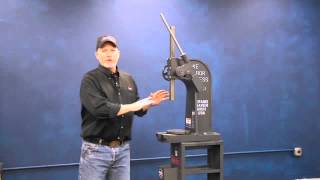

Dake Model 1½B Ratchet-Lever 3Ton 7” Throat Bench-Model Broaching Arbor Press 902002

Description

3 ton ratchet lever arbor press that is designed for broaching. An optional pedestal is available.

Nobody in the industry offers a wider range of tonnage and sizes in arbor presses than Dake. They manufacture 17 different standard single leverage, ratchet leverage, and compound leverage arbor presses. For strength and durability, all frames are cast iron and incorporate a flanged spine design which adds rigidity to the press body. Arbor press bases are machined for maximum stability and drilled to permit side mount, bench, or pedestal mounting. Dake has been manufacturing their line of arbor presses since the 1940’s and are proud to say that you will find one of these machines in just about every job shop in the USA.

Features

• Ratchet device permits lever to be used in most convenient position
• Counterweight returns lever quickly after downstroke
• Handwheel advanced ram to work quickly

Standard Equipment

• Cast Iron Base
• Handwheel
• Ram
• Notched Table Plate
• Counter Weight

Specifications

• Capacity: 3 Tons
• Leverage: 48:1
• Ram Size: 1¼” x 1¼” x 24½”
• Max Diameter Work: 14”
• Throat: 7”
• Largest Arbor: 2”
• Capacity Over Table: 18¼”
• Capacity Over Table Plate: 17½”
• Base Length: 21”
• Base Width: 8¼”
• Height: 28”
• Weight: 196 lbs

 Optional Add-Ons

• Pedestal (903002)
• Speed Handle (87182)
