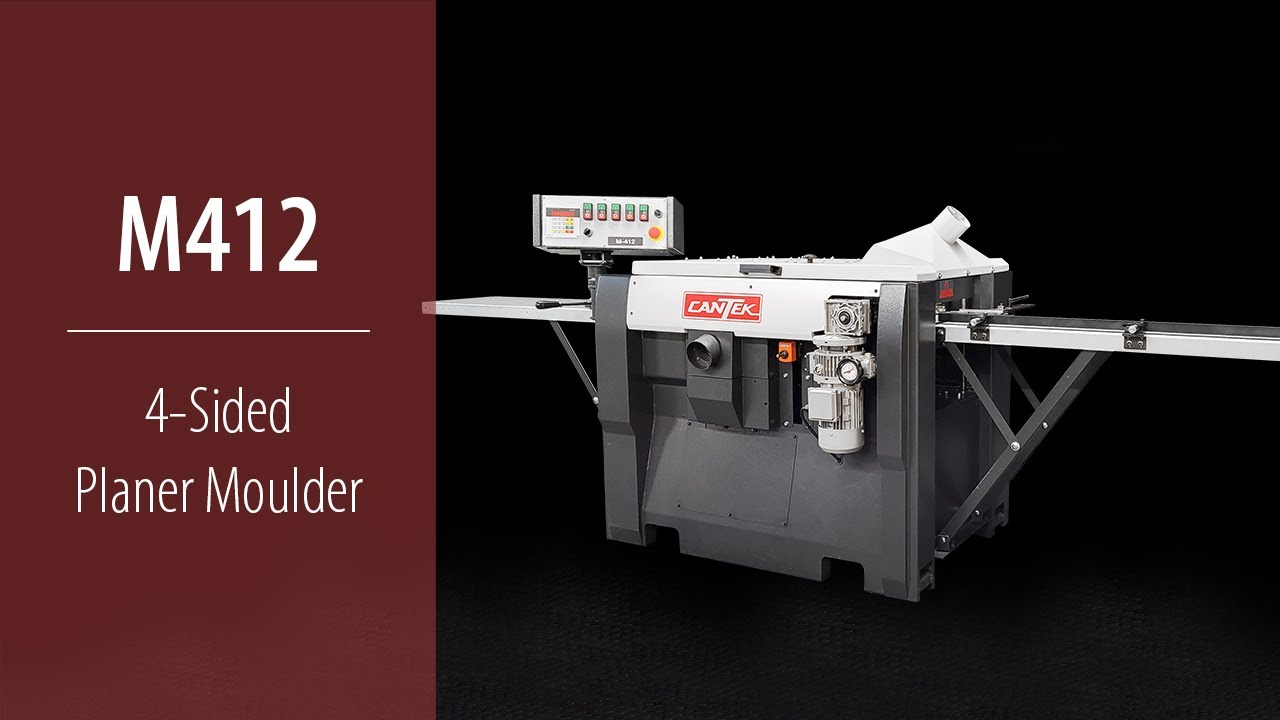

Cantek Three Phase 4 Side Planer Moulder M412

FREE SHIPPING

Manufacturer Part: EMT ID:
M412
13232

  • Allows for 4 cutting modes: single two, three and 4-side planing and moulding.
  • Individual powerful motor drive for each spindle.
  • Equipped with 3 depth of cut control plates for bottom cutterhead.
  • Automatic machine stop when top guard is opened.
Details below

Features

Centralized Control Panel

  • All motion controls of the machine are centralized on the control panel, located at the left side of the machine for easy access and operation convenience.
  • Each cutterhead is individually controlled on the control panel

Top Horizontal Spindle

  • Equipped with two planer knives and two pattern knives for planing and moulding operations at a time.

Left Vertical Spindle Adjustment

  • The left vertical spindle can be adjusted in forward and backward direction to suit workpiece width. A mechanical meter is equipped for accurate reading of the spindle adjustment amount.

Table Adjustment

  • The entire table can be raised or lowered by turning a handwheel, equipped with a mechanical meter for accurate reading of the table adjustment.

Variable Feed Speed

  • Variable feed speed is achieved through a disco type variable speed unit speed combined with gear reducer, making this moulder ideal for cutting soft and hard wood material.
  • Variable feed speed range is 11-52 feet per minute

Other Highlights

  • Allows for 4 cutting modes: single two, three and 4-side planning and moulding.
  • Individual powerful motor drive for each spindle.
  • High quality disco type variable feed speed unit.
  • Automatic machine stop when top guard is opened.
  • In feed & outfeed table extensions (optional) for firm support of large word.
  • Equipped with 3 depth of cut control plates for bottom cutterhead.
  • Sea-thru top guard for viewing cutterheads.
  • Comes with a set of cutterheads (top/bottom/side/side)

Specifications

  • Planing:
    • Width: 13” (330MM)
    • Depth: 7/16” – 9” (12 – 230mm)
  • 2-Side Planing/Moulding:
    • Width: 13-5/8″” (346mm)
    • Depth: 7/16” – 9” (12 – 230mm)
  • 4-Side Planing/Moulding:
    • Width: 0 – 12” (0 – 305mm)
    • Depth: 7/16” – 4” (12 – 100mm)
  • Top Horizontal Spindle:
    • Width: 17-15/16” (455mm)
    • Max. planing depth: 5/16” (8mm)
    • Max. moulding depth: 3/4” (19mm)
    • Speed: 7000 RPM
    • Cutterhead diameter: 2-7/8” (72mm)
    • Motor: 7-1/2HP (5.5Kw)
  • Bottom Horizontal Spindle:
    • Width: 13-5/8” (346mm)
    • Max. planing depth: 1/4” (6mm)
    • Max. moulding depth: 3/16″ (5mm)
    • Speed: 7000 RPM
    • Cutterhead diameter: 2-7/8” (72mm)
    • Motor: 5HP (3.7Kw)
  • Right & Left Vertical Spindles:
    • Max. cutting height: 4” (100mm)
    • Max. cutting depth: 13/16” (21mm)
    • Spindle diameter: 1-1/4″ (31.75mm)
    • Speed: 7000 RPM
    • Max. cutterhead diameter: 3-1/2” (90mm)
    • Motor: 4.1HP (3Kw)
  • Table:
    • Area: 1125 x 685 mm
    • Elevation: 230mm
    • Power Table (Raise): 120w
  • Dust Hood Outlet: 101.6mm (4″)
  • Feed System:
    • Speed (Variable): 11-52 ft/min.
    • Motor: 1/2HP (0.375Kw)
  • Machine Dimensions (LxWxH): 1485 x 1265 x 1216 mm (58.5” x 50” x 48”)
  • Packing Dimensions (LxWxH): 1350 x 1140 x 1130 mm (53.5” x 45” x 44.5”)
  • Net Weight: 635kgs (1400bs)
  • Gross Weight: 730kgs (1610lbs)
Manufacturer
SKU
M412
Shipping Method
LTL Freight
Weight
1,610 lb
Dimensions
59 × 50 × 48 in
Country of Origin
Taiwan
Warranty
1 Year
(Parts)
