Cantek 32" Three Phase 20 HP Band Resaw with Feeder HB800

Description

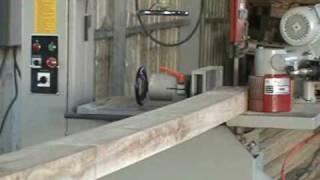

The Cantek HB800 32″ Band Resaw with Feeder is built to last.  A 4” wide blade is driven by a powerful 20HP motor for precision straight resawing.  Equipped with a 1HP power variable speed feed unit which is pneumatically actuated to provide consistent feeding of the workpiece.  The feed speed can be variably adjusted from 3 to 56 FPM in accordance with the material type and thickness.

Why the Cantek HB800?

• Cast iron upper and lower saw wheels are precision machined and dynamically balanced
• Powerful 20HP saw motor
• 4” wide resaw blade for precise straight resaw cutting
• Specially designed Bakelite guide blocks provide rigid side blade support for straight cutting
• 1HP infinitely variable speed feeder with feed speeds from 3~56 FPM ensures consistent feeding of work pieces during resawing operations
• Feeder is pneumatically actuated by a foot pedal for operator convenience
• Adjustable roller infeed fence to facilitate with feeding of the workpiece
• Upper and lower Bakelite guides ensure blade stability for optimum cutting results

Features

• Heavy fabricated steel machine frame
• Large cast iron worktable is precision ground and can tilt to a maximum of 45o
• Convenient spring blade tension adjustment by means of a handwheel and gauge
• Foot brake for braking wheels and blade
• Rack & pinion blade guide adjustment
• Band wheel is crowned for proper blade tracking and added stability of the blade
• Blade lubrication system and reservoir for lubricant keeps blades cool
• Auto Start-Delta control for main motor with emergency stop switch
• Feed pressure is adjustable
• Feed roller opening and closing is controlled by a foot switch for operator convenience
• Knurled steel feed roller for maximum grip

Specifications

RESAW SPECIFICATIONS

• Saw wheel diameter: 32”
• Motor: 20HP
• Table size: 45 ¼” x 31 ½”
• Table tilting: 0 – 45o
• Throat capacity: 30-5/8”
• Height capacity: 15-3/8”
• Blade width: 4”
• Width of wheel: 3.543”
• Blade speed: 5024 FPM
• Blade length: 216” to 217-1/8”
• Dust hood diameter: 4” x 2
• Machine weight only: 1470 lbs.
• Electrics (complete with feeder): 230/3/60 = 54 Amps or 460/3/60 = 27 Amps

FEEDER SPECIFICATIONS

• Length of roller: 6″
• Diameter of roller: 8″
• Feed speed: 3 – 56 FPM
• Motor: 1HP
• Air pressure: 72 PSI
• Fence adjustment: 4.72″
• Feed opening: 6″
• Net weight: 286 lbs.

RESAW & FEEDER DIMENSIONS

• Machine & feeder net weight: 1756 lbs.
• Shipping weight: 2266 lbs.
• Shipping dimensions: 100” x 33 ½” x 55 ½”
