Baker Products 16’ End Dogging Scragg Mill

Description

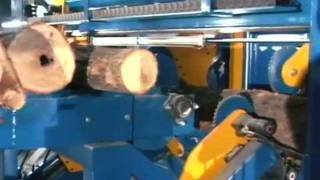

The Baker End-Dogging Scragg Mill can cut logs between 4 and 16 feet long with diameters as small as 6 inches. Use it to cut squares and boards. The end-dogging mill uses a hydraulic cylinder to hold the log on both ends during the cut. This ensures maximum accuracy for each board or square.

The system can also rotate the log 90° before the second cut and allows the removal of as many boards as you desire before dropping the square. An optional operator-controlled log centering system eliminates the guessing to position the log.

The Baker End-Dogging Scragg Mill comes either with thin-kerf bandsaws or circular saw blades.

Features

• Diesel or electric power
• End-dogging hydraulic cylinder holds log at both ends during cut
• Two (2) thin-kerf band saws or two (2) circular blades
• Length of cut varies from minimum of 48” up to 16’ maximum (overhead enddogging cylinder has a range of 4’)
• Remote command center with control console
• 90° log rotation
• Tailing belt
• Hydraulic log loader
• Heavy-duty construction
• High Production

Specifications

• Production Rate: Varies according to diameter of log, thickness of cut, feed speed and number of passes per log
• Band Blades:
  • Lengths: 13’-2” and 14’- 2” (401 cm and 432 cm)
  • Blade Widths: 1“(25 mm) and 1-1/4“ (32 mm)
  • Blade Thicknesses: 0.035“ and 0.042“
  • (0.89 mm and 1 mm)
  • Kerf is variable depending on set and teeth.
• Power
  • Electric Motor: 20 HP (15 kw) on each band blade
  • Hydraulic power is derived from a self-contained hydraulic power pack with varies from 7.5 up to 15 HP (6 kw -11 kw) depending upon size required
• Capacities
  • Log Diameter:
  • 6” (15.24 cm) min.
  • 12” (31 cm) max. using 13’-2” (401 cm) blade
  • 16” (41 cm) max. using 14’-2” (432 cm) blade
• Log Length: 48” (122 cm) min. and up to 16’ (488 cm) max. Note: A Baker End-Dogging Scragg mill designed to accommodate 48”-long (122-cm-long) logs cannot accept logs longer than 8’ (2.44 m).
• Material Thickness:
  • 3-1/2” (89 mm) min. and up to 12” (30 cm) max. using a 13' - 2" (401 cm) blade
  • 3-1/2” (89 mm) min. and up to 16” (41 cm) max. using a 14’- 2” (432 cm) blade

Options

• 10-point programmable electronic setworks
• Log infeed deck
• Material handling conveyor
