Manufacturer Part: | EMT ID: |
BA9-1001095
|
104
|
- 1/2" Blade
- 5" Round Capacity
- Swivel Head Single Miter
- Hydraulic & Manual Descent
Description

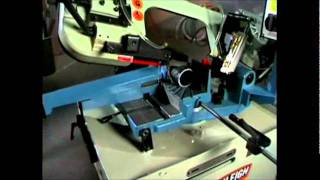

This Baileigh BS-128M horizontal bandsaw is perfect for the home shop or hobbyist. Although this horizontal bandsaw is economical, it doesn’t mean it is short on features. This saw can either be run as a standard horizontal pivot style bandsaw or as a vertical bandsaw, by lifting the head 90 degrees and locking it into that position. This becomes helpful when trying to do intricate designs and the best part you only need one machine to do it. Hydraulically controlled descent, 60 degree mitering head, bearing blade guides and an easily portable working stand are also included.
The BS-128M horizontal band saw delivers nice cutting capacities - it can cut up to 5" round stock at 90 degrees and up to 6" rectangle, plus a number of other profiles and shapes. It also allows for the choice of three blade speeds via a step pulley a feature not seen on other saws in this price range.
- Ideal for home shops and hobbyists.
- Cuts up to 5” round stock at 90° and up to 6” rectangle.
- Similar to our BS-127, but adds hydraulic descent.
- Tackles a number of other profiles and shapes.
- Head miters 60° left and right.
- Cast iron saw head and bow reduce vibrations and maintain accuracy.
- Choose from 3 blade speeds (78, 154, and 200 fpm) via a step pulley—something you won’t find on other saws in this price range.
- Accepts standard .5” blades.
- Hydraulically-controlled descent makes clean cuts and reduces operator effort.
- Stop rod helps you make repeatable cuts for small runs.
- Adjustable bearing blade guides move as close as possible to the material to produce accurate cuts.
- Fully-welded steel plate framework provides stability and helps this metal band saw last for many years.
- Includes a steel work stand with wheels for portability.
- Baileigh covers this saw with a 1-year parts warranty.
- Comes with lifetime technical support by phone. You can call a Baileigh rep whenever you need machine help or project advice.
- Both the metal band saw and all replacement parts are typically in stock for quick shipments.
Return | Manual |
Miter Adjustment | Swivel Head |
Miter Angle | 0-45º |
Motor | .75HP |
Capacity Rectangular 90x60x45 | 5"x6"x1.75"x2.19"x3"x3.7" |
Capacity Round 90ºx60ºx45º | 5"x1.75"x3.75" |
Blade Size (HxWxL) | .50"x.023"x64.48" |
Descent Control | Hydraulic |
Drive | Belt |
Power | Pneumatic/Manual |
Shipping Weight | 319lbs |
Shipping Dimensions | 38"x22"x25" |
Manufacturer | |
SKU |
BA9-1001095
|
UPC |
731325395716
|
Shipping Method |
LTL Freight
|
Weight |
230 lb
|
Country of Origin |
China
|
