Baileigh English Wheel EW-40

Description

Not all English wheels are the same. A 37 ¾” throat depth and box tubing frame make our EW-40 stand out from competing models. We include 9 bottom anvils and 3 upper wheels.

• 16 gauge mild steel capacity.
• 37 ¾” throat depth can handle almost any project.
• Comes with 3 upper wheels (6” x 2.75”).
• 9 hardened bottom anvils:
• ⅛”, ½”, and ¾” edge radii.
• 6” crown radius.
• 2 flat rolls.
• 5/16” x ¼” step roll.
• 1½ ” and ⅝” round bead rolls.

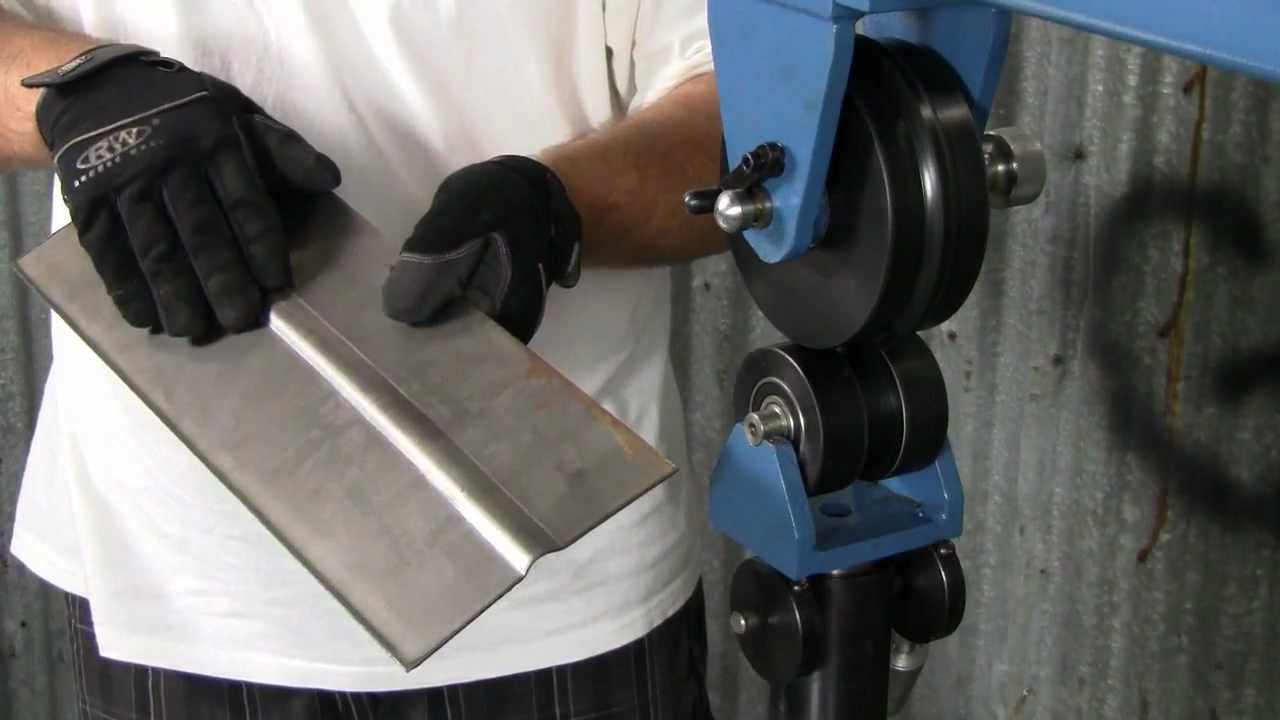

• You can roll beads as well as form metal on this English wheel.
• All upper wheels and lower anvils use sealed bearings.
• Swivel head lets you either push material directly into the throat or at a 90° to it.
• Quick-release cam allows you to release the panel without changing tension.
• Adjust the tension via the kick tensioner, made of real rubber.
• Fully welded 5” x 5” x .250” box tubing framework prevents flex when rolling at full capacity.
• Tooling holder on the side of the machine gives you a convenient place to put your rolls.
• Covered by a 1-year parts warranty.
• We offer lifetime technical support by phone from a team of service reps with hands-on machine experience.

Recommended for: Restoration or bodywork on autos, planes, cycles, and much more.

Specifications

• Item Number EW-40
• Mild Steel Capacity 18 ga.
• Throat Depth 40"
• Aluminum Capacity 14 ga.
• Lower Die Radius 1.85", 2.165", 4.85,40"
• Power Manual
• Shipping Weight 388 lbs.
• Shipping Dimensions 72" x 36" x 15"
• Top Wheel Dimensions 6” x 2 ¼”
