| Manufacturer Part: | EMT ID: |
|
BA9-1002426
|
120
|
- 10" Blade
- Manual Feed
- Mieters up to 45º left and right
- 110V, 1PH

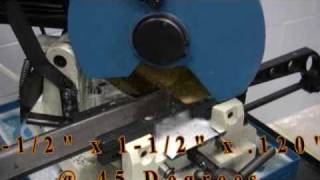

The Baileigh CS-250EU is a great all around, general purpose cold saw that won’t break the bank. The CS-250EU cold saw is a manually operated 10" circular cold saw that is built for medium grade production seen in most small fabrication shops, but what makes the CS-250EU unique is that is also portable. Powered by 110 volts that is readily available anywhere, the base of the CS-250EU is removable and what is left is a self contained unit that includes everything needed to make great cuts anywhere.
The ridged fully cast iron head of the CS-250EU has a self contained coolant tray that holds the flood coolant system that is standard on this model. The CS-250EU has a 10" blade that runs at 54 rpm, perfect for most metals. The maximum capacity of the CS-250EU is 3" round at both 90 degrees and 45 degrees. The vise features a cam lock device that makes for fast loading and unloading of material. The vise also supports the material on both sides of the blade, ensuring a nice burr free cut.
Specifications
| Max Blade Diameter | 10" |
| Operation | Manual |
| Head Miter | 45º Left/ 45º Right |
| Round Solid at 45º | 1.2" |
| Square Tube at 45º | 2.2" x 2.2" |
| Round Tube at 45º | 3" |
| Rectangle Tube at 45º | 2.4" x 2" |
| Round Solid at 90º | 1.2" |
| Rectangle Tube at 90º | 2.5" x 2" |
| Square Tube at 90º | 2.5" x 2" |
| Round Tube at 90º | 3" |
| Coolant System | Yes |
| Vice Style | Single action with cam lock |
| Max. Vice Opening | 4" |
| Head Style | Pivot |
| Arbor Size | 1.26" |
| Blade Speed | 54 rpm |
| Power | 110V, 1PH |
| Shipping Weight | 425Ibs |
| Shipping Dimensions | 60"x44"x48" |
| Manufacturer | |
| SKU |
BA9-1002426
|
| UPC |
731325401875
|
| Shipping Method |
LTL Freight
|
| Weight |
345 lb
|
| Dimensions |
48 × 31 × 42 in
|
| Country of Origin |
Taiwan
|
