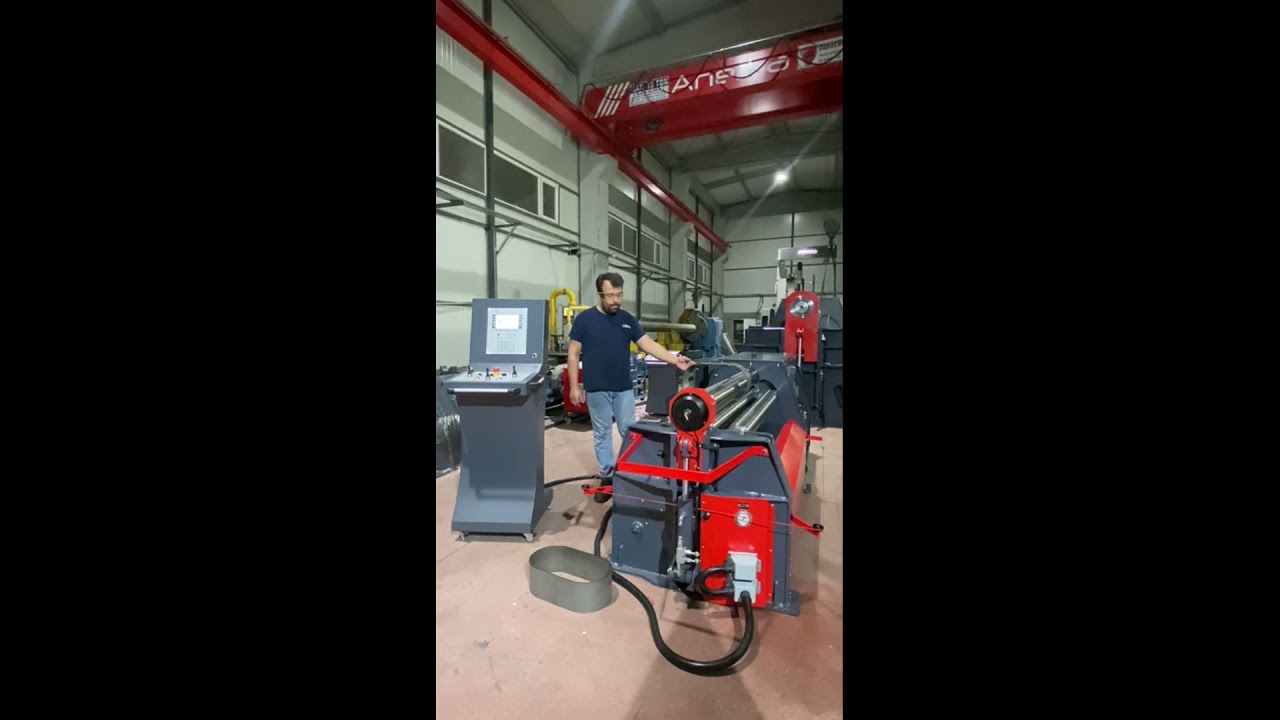

Revolution Machine Tools 7.5HP Hydraulic Planetary Type Four Roll Bending Machine R-SMART 05-591

Description

The R-SMART Series 4 roll plate rolls are developed specifically for the most demanding applications. Achieve obtainable production speeds that have never been realized before. Available with NC and CNC applications.

Specifications

• Bending Length: 61”
• Minimum Internal Diameter
  • Ødx1,5
    • Pre-Bending Capacity: 5/32”
  • Ødx3
    • Bending Capacity: 3/16”
  • Ødx5
    • Bending Capacity: 1/4”
• Top Roll: 5.91”
• Bottom Roll: 5.91”
• Side Rolls: 5.12”
• Max. Pass Through: 1/2”
• Machine Dims. (L x W x H): 123” x 39” x 45”
• Working Height: 35”
• Width of Side Support: 22”
• Weight: 5,490 lbs.
• Motor Power: 7.5 HP
• Hydraulic Tank Capacity: 24 Gal

Options

• Min. Additional Top Roll Diameter: 5.51”
