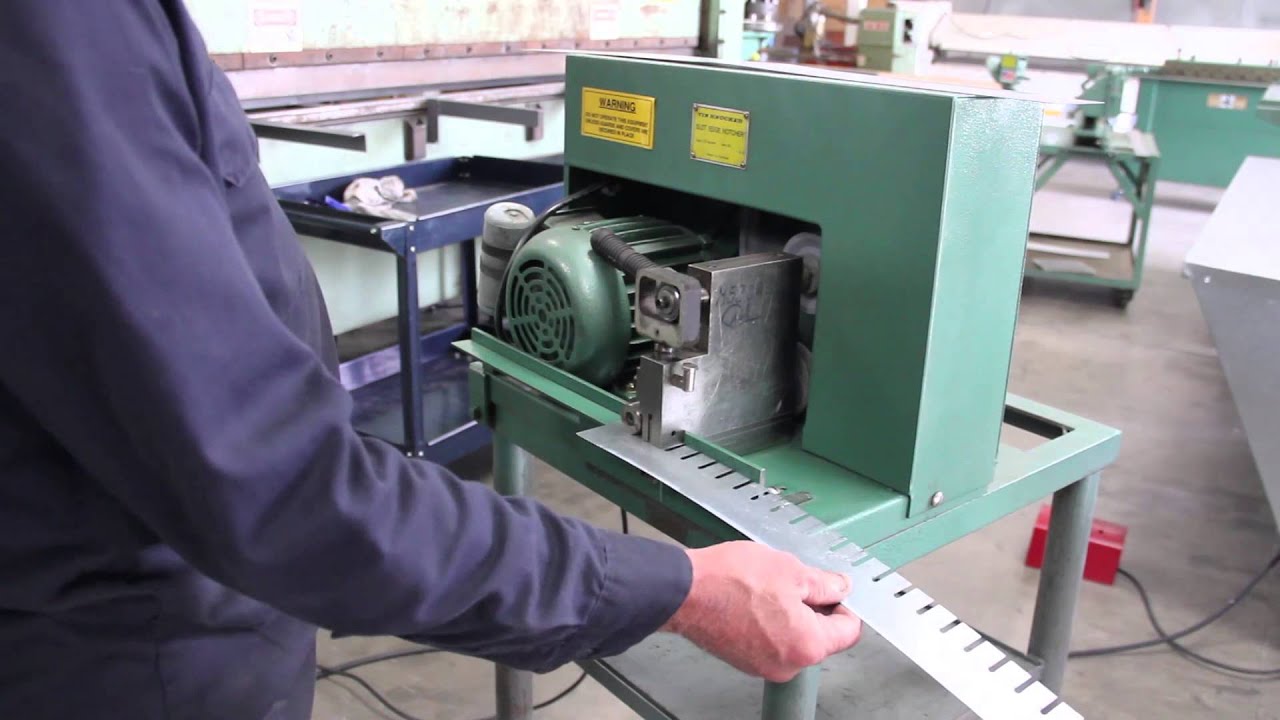

Tin Knocker 110V Single Phase 20 Ga. Variable Speed TK Edge Notcher
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
TkEdgeNotcher
|
4146
|
- Capacity: 20 Ga. Mild Steel
- Depth of Notch: 0 to 3/4"
- Width of Notch: 3/16"
- Speed: Variable Minimum 18 FPM
Description
The TK Edge Notcher can now be order with either: Slot Notch or "V" Notch. Includes both sets of tooling 1 machine to 2 notches.
Machine Specifications
- Motor: 1/3 HP, 110v, Single Phase, 60Hz AC
- Capacity: 20 Gauge Mild Steel
- Speed: Variable Minimum 18 FPM
- Overall Dimensions: 21" Long, 16 1/2" High, 13" Deep
- Approx. Shipping Weight: 290 Lbs.
Specifications V Notch
- Depth of notch range: 0 to 3/4"
- V is at 15 degrees
- Spacing: 3/4" to 1 7/16"
Specifications Slot Notch
- Depth of Notch: 0 to 3/4"
- Width of Notch: 3/16"
- Spacing: 3/4" to 1 7/16"
Manufacturer | |
SKU |
TkEdgeNotcher
|
Shipping Method |
LTL Freight
|
Weight |
290 lb
|
Dimensions |
21 × 13 × 17 in
|
