Manufacturer Part: | EMT ID: |
HR-400PB
|
13252
|
- Max. working capacity (W x H): 15 3/4″ x 9.8″
- Saw wheel diameter: 28″
- Feed speed: variable: 13~90 FPM
- Conveyor belt size: 15.16″ x 215.4″
Features
- Extra heavy duty welded tubular frame
- Solid steel bandwheels are precision machined and dynamically balanced
- Bandmill Tensioning by air over oil system
- Digital thickness control in Metric and Inch for precise adjustment of the band height
- Saw assembly is raised and lowered by anti-backlash re-circulating ballscrews
- Heavy duty hydraulic feed system with variable speed control

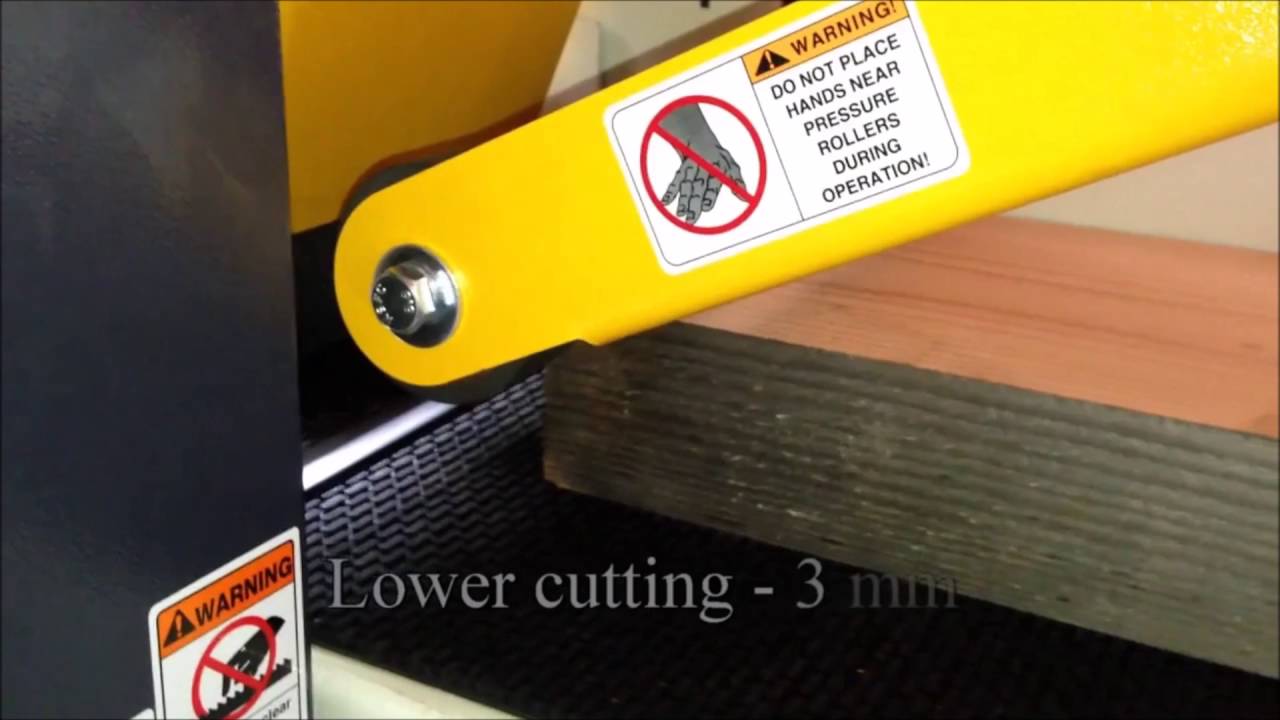

- Pneumatic top pressure roller automatically adjusts to the workpiece thickness
- New Low Friction sandwich type saw guide system with adjustable left guide to minimize the distance between the guides for higher cutting precision
- Mist Bandsaw Blade Lube & Cooling System included –increasing feed seeds, accuracy and life of the blade
- Hydraulically driven return conveyor for returning material to the operator requiring additional resawing
- Centralized control panel for operator convenience
- An amp meter is located on the control panel for load monitoring
- Hinged blade covers allow for full access to the band wheels for convenient blade changing
- Y Delta – Low amperage Starters on the Bandmill motor
- Stock Machine Electrics 460/3/60 to UL/CSA Standards (Other voltages available on request)
Specifications
- Max. working capacity (W x H): 15 3/4″ x 9.8″
- Distance from blade to conveyor: 0.157″ ~ 9.8″
- Saw wheel diameter: 28″
- Saw wheel width: 2”
- Feed speed: variable: 13~90 FPM
- Saw wheel motor: 30 HP – Voltage 460/3/60 (Other voltages on request)
- Dust hood outlet: 4″ x 2
- Saw blade size: 180″ x 2″
- Conveyor belt size: 15.16″ x 215.4″
- Elevation motor: 1/4 HP
- Machine dimensions (LxWxH): 110″ x 85″ x 74″
- Shipping dimensions (LxWxH): 113″ x 89″ x 81″
- Machine weight: 3960 Lbs.
- Shipping weight: 4400 Lbs.
Manufacturer | |
SKU |
HR-400PB
|
Weight |
4,400 lb
|
Dimensions |
113 × 89 × 81 in
|
Country of Origin |
Taiwan
|
Warranty |
1 Year
|
