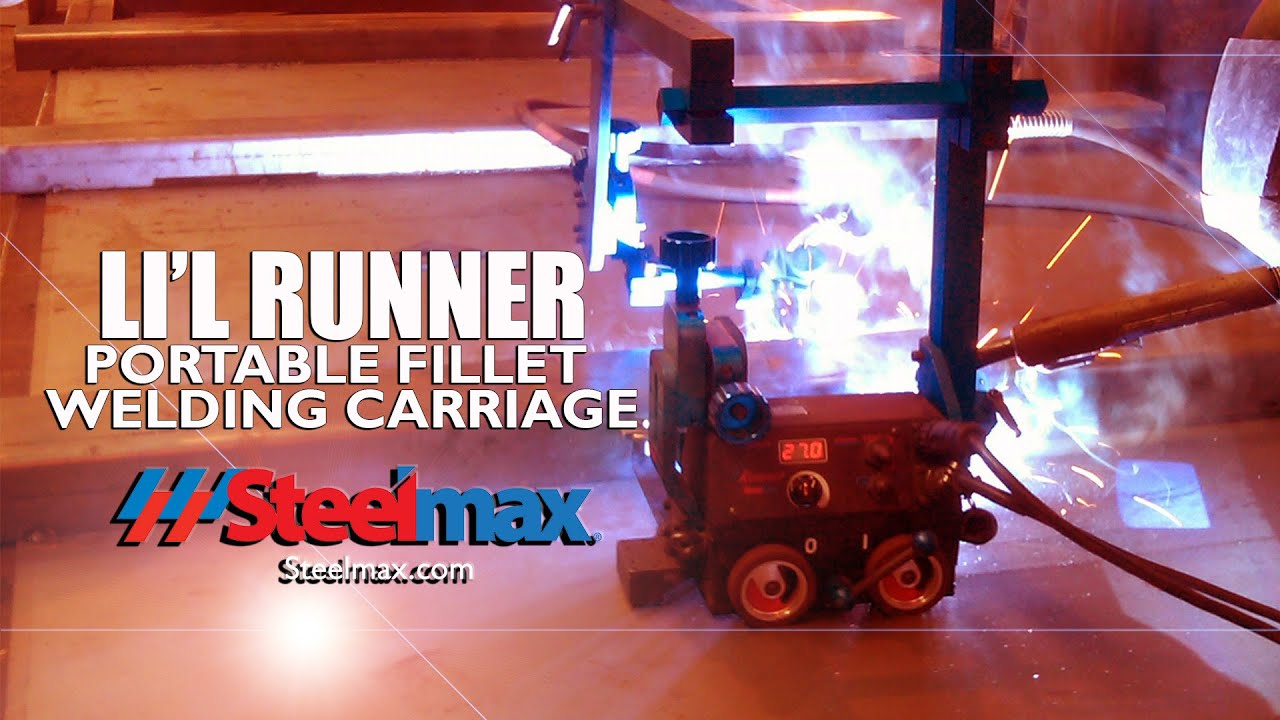

Steelmax Li’l Runner High-Speed 230V Single Phase Portable Trackless Fillet Welding Carriage SM-WC-LR-HS

Description

Increase your production and reduce your welding costs with the Li’l Runner Automatic Fillet Welding Carriage. By providing constant, non-stop travel at a regulated speed, Li’l Runner produces consistent high-quality welds in a fraction of the time required by hand welding. The regulated travel speed creates weld bead geometry which is exact to your specifications, reducing costly over welding and decreasing filler metal usage by as much as 60%. Li’l Runner will produce quality welds faster and with less cost than hand welding. At just over 17 lbs, this compact, portable tractor can be carried anywhere.

The high-speed version of the Li’l Runner Welding Carriage can be used for cutting and welding applications. The Li’l Runner family of carriages offer a broad range of capabilities in one of the smallest welders on the market today.

Features

• Compact, lightweight design with durable cast aluminum housing
• Positive magnetic traction permits out of position use
• Magnetic adhesion on/off lever permits easy set up and adjustment on work piece
• Maintenance-free, 4-wheel planetary gear drive system
• Digital LED display for presetting of travel speed
• Rapid clamp torch holder mechanism for different types of MIG/MAG torches
• Precise cross-slide torch adjustment
• Integrated automatic arc initiation
• Self-guiding roller arms eliminate the need for track

Primary Benefits

• Increased arc time – no starts and stops
• Reduce wasted filler metal – eliminate over welding
• Consistent heat input reduces distortion
• Precise travel speed and torch angle reduces weld defects and costly rework
• Improves work environment – reduces fatigue and repetitive stress – removes operator from heat and fumes

Standard Set Includes

• Li’l Runner driver unit
• Power cord
• Arc control cable
• Guide arm assembly with brass roller wheels

Specifications

• Power Supply: 230V Single Phase
• Welding Position: Vertical/Horizontal
• Min Material Thickness: 5/32”
• Chassis to material clearance: 5/32”
• Travel Mechanism:
  • Friction drive with worm gear reduction
  • Four wheel drive, heat resistant silicone wheels
• Tracking Method: 2 guide rollers
• Pulling Power: 22 lbs Vertical / 33 lbs Horizontal
• Cross slide adjustment (up-down, left-right): 1.4” / 1.4”
• Guide Roller Adjustment: 4”
• Control Panel
  • Arc Ignition Switch: Power supply On/Off
  • Travel Direction Switch: Start Left, Stop, Start Right
  • Li’l Runner HS Speed (IPM) Range: Horizontal 0-86.6” /min
• Dimensions (LxWxH): 9.6” x 10” x 9.5”
• Weight: 17.5 lbs

Optional Accessories

• Dual Torch Mount
• Torch Extension Arm
• Edge Following Guide Arms
• Adjustable Guide Arms
• Auxiliary Magnet Blocks
• Flexible Guide Rail
• Flexible Guide Rail Alignment Tool
• Rail Guide Arms for Li’l Runner
• Magnet for Flex Roll
• Quick Connect Torch Holder
• Magnet Guide Arms for Li’l Runner (set of 2)
• Low Guide Arms for Li’l Runner (set of 2)
• High Guide Arms for Li’l Runner (set of 2)
