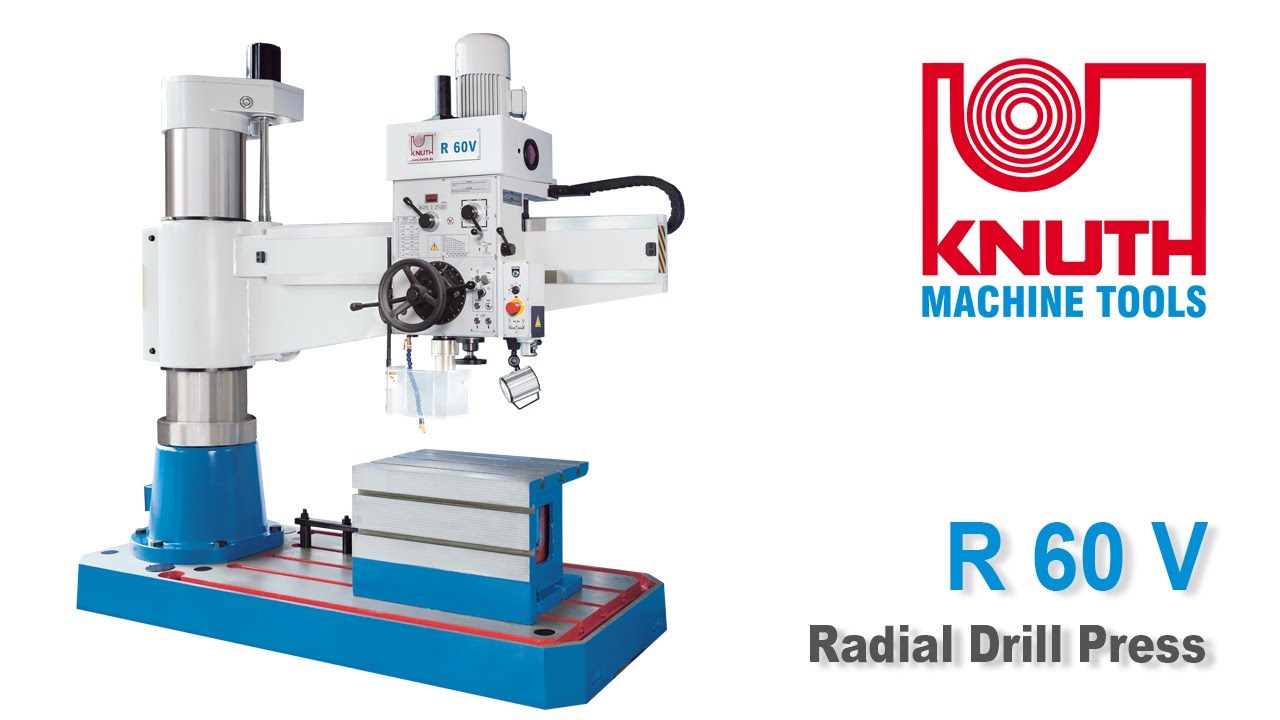

Knuth 5.4HP 12” R 60 V Radial Drill Press 101649

FREE SHIPPING

Manufacturer Part: EMT ID:
101649
15089

  • Drilling depth (max.): 12”
  • Drilling capacity: 2.44”
  • Motor rating main drive: 5.4 Hp
  • Speed range: 38 rpm - 2000 rpm
Details below

Description

Knuth's range of radial drilling machines is one of the most versatile and powerful drilling solutions for drilling, reaming, and countersinking in steel or cast iron. These models impress with their easy handling, even of large and heavy workpieces. The long projection arm makes it extremely flexible for use in many production and construction companies. The RV series is the modern, further developed version of the classic radial drilling machine and has been one of the most requested Knuth models for more than 15 years.

Features

  • Infinitely variable spindle speed with digital display
  • Standard cube table for extended application possibilities
  • Robust construction for constant high accuracy
  • Modern design for easy and comfortable operation
  • Base, column, boom, and gear head are made of premium high-quality cast
  • Major design features include a large column and a highly torsion-resistant boom
  • Boom height adjustment via a powerful motorized drive and vertical spindle
  • The boom lifting gears run in an oil-bath for maximum reliability and minimum wear
  • Advanced column swivel design with optimized clamping features maximum rigidity and minimum clamping offset
  • Swivel axis and travel axis feature extremely smooth operation to make the operator's everyday production work easier
  • The gears feature hardened and precision-ground chrome-nickel steel for smooth and low-noise operation
  • All gear parts are lubricated reliably via oil pump
  • The main spindle runs on precision bearings and features an automatic spindle brake

Proven performance, quality, and cost-effectiveness

  • Quill teeth are precision-ground for a smooth feed and minimum wear
  • The drill head moves on hardened and ground guideways
  • All models feature adjustable overload clutches in the feeds
  • Adjustable boring depth stop with large, easy to read scale
  • All operator controls are placed within reach for convenient and practical handling and quick learning
  • Powerful coolant system with coolant reservoir integrated into the machine foot
  • Optimum size/performance ratio and a new drive technology make this a bestseller
  • Infinitely variable spindle speed and easy to read digital display
  • The quills of the R 60 V feature guided counterweights for easy handling and increased safety
  • Manually shiftable feed gears with 8 steps
  • Independent hydraulic clamping: boom can be moved vertically without losing the spindle-to-bore alignment
  • Drill head and column can be clamped/released together or separately with the push of a button
  • A central lubrication system ensures reliable lubrication of the column

Standard Equipment

  • Coolant system
  • Cube table
  • LED work lamp
  • Operator instructions

Specifications

  • Working Area
    • Drilling capacity: 2.44”
    • Tapping capacity, cast-iron: M 52
    • Tapping capacity, steel: M 46
    • Drilling depth (max.): 12”
    • Throat: 14” - 63”
    • Spindle nose-to-table surface distance: 14” - 49”
    • Column diameter: 14”
    • Machine table dimensions: 94” x 39” x 8”
    • Cube table dimensions: 30” x 20” x 20”
    • Arm stroke (vertical): 23”
  • Travels
    • Drill head travel (horizontal): 49”
  • Headstock
    • Speed range: 38 rpm - 2000 rpm
    • Spindle mount: MT 5
  • Feed
    • Feeds: 0”/R - 0.04”/R
  • Drive Capacity
    • Motor rating main drive: 5.4 Hp
    • Stroke motor: 2 Hp
  • Measures and Weights
    • Overall dimensions (length x width x height): 99” x 42” x 110”
    • Weight: 8,360 lbs.

Options

  • 250615 – Swivel Table 16" x 24"
  • 103184 – Coolant Concentrate 5 Ltr.
  • 104750 – Tool Holder Bit MT4 / B18
  • 106017 – Compound Sliding Tables 33.7 x 11.6
  • 123040 – Power Worker Metal Cutter
  • 125007 – Drill Press quick-action machine vise with V-guides PBS 200
  • 125032 – UMS 200 Universal Machine Vise
  • 129345 – Swivel table ST 380
Manufacturer
SKU
101649
Shipping Method
Flatbed
Weight
8,560 lb
Dimensions
104 × 47 × 115 in
Country of Origin
China
