Manufacturer Part: | EMT ID: |
162335
|
15231
|
- Drilling capacity: 1.57”
- Table set up area: 21” x 17”
- Tapping capacity, steel: M 24 null
- 5 Year Parts Warranty
Description

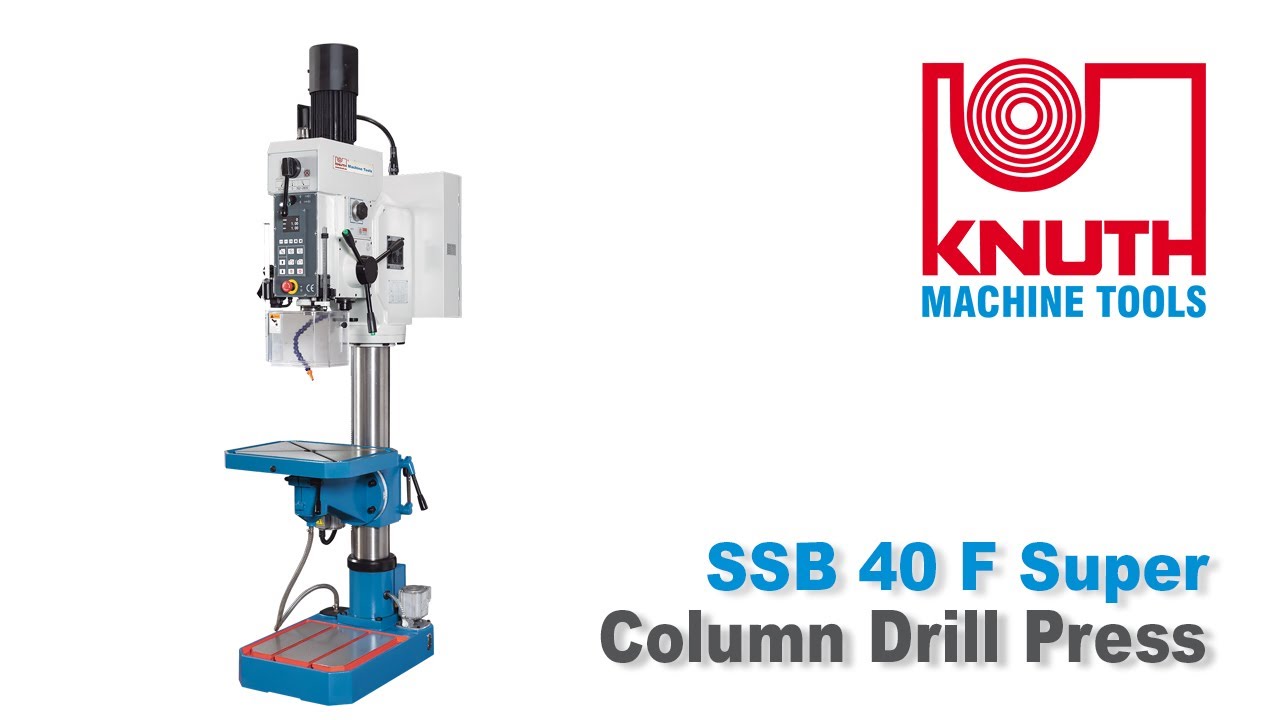

The drilling machines of the SSB F Super series are the right choice for every workshop, from maintenance to production. The sturdy drilling machines are constructed with a thick-walled column and powerful drives. The spindle speed is infinitely variable and the quill feed has a robust gearbox. Whether via the control panel or touchscreen, all functions are clearly displayed and are easy to use. The clamping table can be moved in height using a motor and facilitates the handling of heavy parts.
Features
- Ideal for drilling, countersinking, reaming, and tapping
- Very rigid construction with thick-walled column and large throat
- Infinitely variable speed adjustment and digital speed display
- 4 automatic drill feeds with electromagnetic clutch control and automatic shut-off when reaching the limit stop
- Motorized table height adjustments
- Digital boring depth display
- Large drilling table with circumferential coolant groove, height adjustment, and ± 45° swivel range
- Tapping unit is Standard equipment
Standard Equipment
- Tapping unit
- Protective shield
- LED work lamp
- Coolant system
- Operating tools
- Operator manual
Specifications
- Working Area
- Drilling capacity: 1.57”
- Table set up area: 21” x 17”
- Tapping capacity, steel: M 24 null
- Throat: 13”
- Spindle nose-to-table surface distance: 26”
- Table swivel range (max.): ± 45° null
- Quill stroke: 7”
- Manual table travel: 22.44”
- Powered table travel: 16.93”
- Column diameter: 6”
- Spindle nose-to-foot distance: 47”
- Headstock
- Speed range: 60 rpm - 2600 rpm
- Spindle mount: MT 4 null
- Feed
- Quill feeds: 0.004; 0.008; 0.012; 0.016 (4)”/R
- Drive Capacity
- Motor rating main drive: 2.7 Hp
- Measures and Weights
- Overall dimensions (length x width x height): 40” x 26” x 88”
- Weight: 1,100 lbs.
Options
- 103184 – Coolant Concentrate 5 Ltr.
- 103330 – Pivoted Mounts LK 3
- 104594 – Accessory-Set MT 4 8-pc.
- 103402 – Universal Facing / Lathe Bore Head ADA / MT 4
- 104840 – PB 100
- 103820 – Reduction Sleeve MT 4/1
- 104845 – Vise PB 120
- 103825 – Reduction Sleeve MT 4/2
- 103830 – Reduction Sleeve MT 4/3
- 105295 – Clamping Tool Set De Luxe 14/M12
- 108633 – Lathe Bore Head with Boring Bar Set 3” 12 pcs.
- 108641 – Mounting Shaft MT 4
- 104670 – Extension Sleeve MT 4/5
- 104695 – Taper Drift MT 4/5
- 104745 – Tool Holder Bit MT4 / B16
- 104750 – Tool Holder Bit MT4 / B18
- 104765 – Keyless Drill Chuck 0.04-0.5” B 16
- 104770 – Keyless Drill Chuck 0.12-0.63” B 18
- 106035 – Tapping Attachment M5 - M12 (MT3 + MT4)
- 106037 – Tapping Attachment M8 - M20 (MT3 + MT4)
- 107615 – HSS Form Countersing Set round 0.08 - 0.47”
- 107617 – HSS Form Countersing Set round 0.24 - 0.79”
- 108631 – Lathe Bore Head with Boring Bar Set 2” 9 pcs.
- 108655 – Combo Flat Counter Sink
- 108665 – Counter-Sink 90°
- 123040 – Power Worker Metal Cutter
- 125006 – Drill Press quick-action machine vise with V-guides PBS 140
- 125007 – Drill Press quick-action machine vise with V-guides PBS 200
- 125031 – UMS 140
- 125032 – UMS 200 Universal Machine Vise
Manufacturer | |
SKU |
162335
|
Shipping Method |
LTL Freight
|
Weight |
1,300 lb
|
Dimensions |
45 × 31 × 93 in
|
Country of Origin |
China
|
Warranty |
5 Years
|
