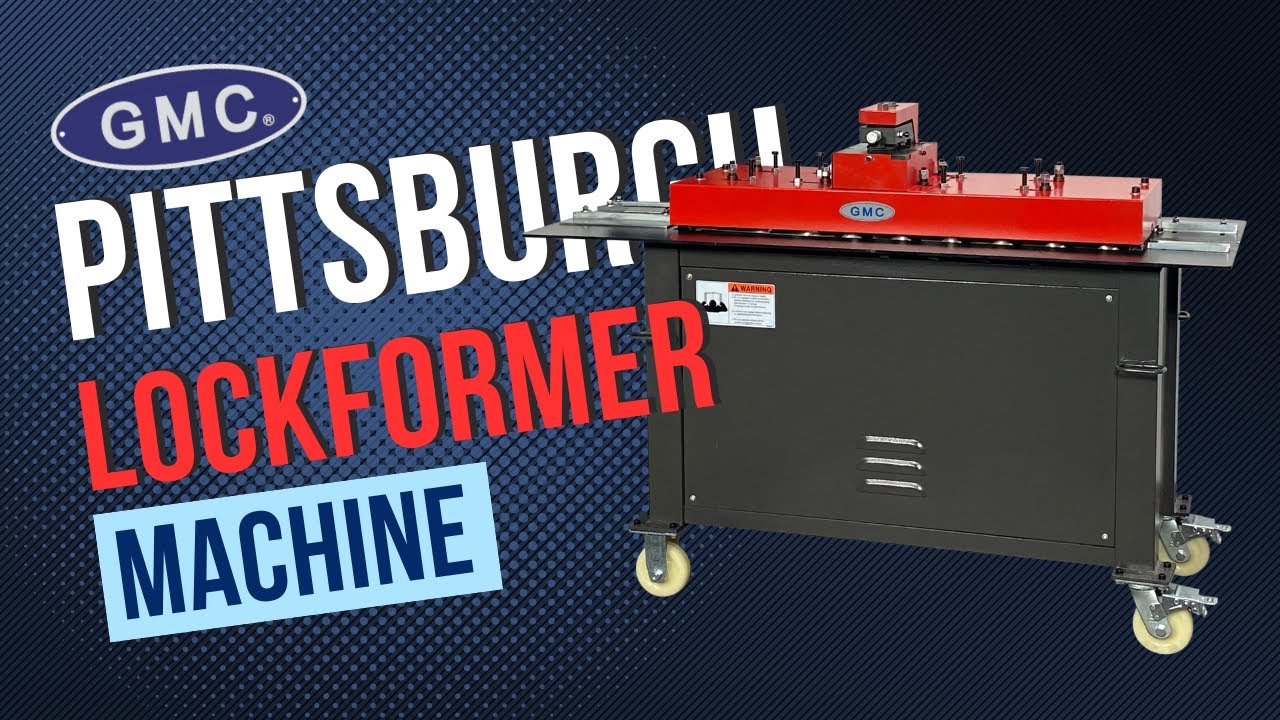

GMC Machinery 18 GA to 24 GA Pittsburgh Type Locking Forming Machine PL-18E
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
PL-18E
|
14662
|
- Capacity: 18 Ga to 24 Ga
- Depth of Pocket: 1/2"
- Feeding Speed: 23 FPM
- Main Motor: 4HP, 220V, 3PH
Standard Features
- ISO 9001 certified
- 4HP Heavy Duty AC main motor, 220V, 3 phase
- Heavy welded all steel construction for maximum rigidity
- It’s a Triplex, standard rolls include S & Drive (Slip & Drive Cleat, or button lock), Drive Cleat, Double Seam, Pittsburgh Lock, Power Flanger, 5 in 1, all rolls are installed.
- Heavy welded all steel construction for maximum rigidity
- ACME side can be operated at same time
- One year warranty for parts
Included Equipment
- Standard Pittsburgh Attachment # PA-18E, installed
- Slip & Drive Roll (S&Drive or called button lock) # SDR-18E , installed
- Drive Cleat Roll # DCR-18E, installed
- Double Seam Roll # DSR-18E, installed
- Power Flanger # PF-18E, installed
Specifications
- Capacity:
- Pittsburgh Lock: 26 Ga. - 18 Ga.
- S Drive Lock: 26 Ga. - 22 Ga.
- Right Angle Lock: 26 Ga. - 18 Ga.
- Drive Cleat Lock: 26 Ga. - 22 Ga.
- Double Seam Lock: 26 Ga. - 18 Ga.
- Power Flange 1/4: 26 Ga. - 18 Ga.
- Depth of Pocket: 1/2"
- Feeding Speed: 23 FPM
- Main Motor: 4HP, 220V, 3PH
- Weight Approx: 998 LBS
- Machine Dimensions LxWxH: 60" x 26" x 46"
Options
- Right Angle Roll # RAR-18E, ¼”,3/8” & ½”
Manufacturer | |
SKU |
PL-18E
|
Shipping Method |
LTL Freight
|
Weight |
1,000 lb
|
Dimensions |
60 × 26 × 46 in
|
Country of Origin |
Taiwan
|
Warranty |
1 Year
|
