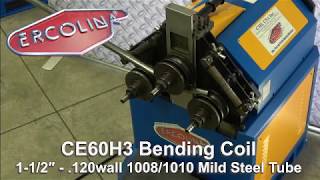

Ercolina 480V Three Phase Hydraulic Positioning Angle Roll Section Bender with 3" Pipe Capacity and Universal Tooling CE60H3

FREE SHIPPING
$26,500.00
$25,895.00
You save $605.00!

Manufacturer Part: EMT ID:
CE60H3 (480V)
16829

  • Pipe Capacity (Max.): 3″ Sch. 10
  • Angle Capacity (Max.): 2-1/2″ x 2-1/2″ x 3/8”
  • Tube Capacity (Max.): 3-1/2” – 0.120 wall
  • Universal Tooling (Included): 7” O.D.
Details below

Description

Ercolina’s CE60H3 angle roll model offers hydraulic center roll positioning.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, their machines will increase profit, as well as improve product quality and finish.

Features

  • 50mm roll shaft diameter
  • Maximum pipe capacity 3″ Sch. 10
  • Maximum angle capacity 2-1/2″ x 2-1/2″ x 3/8″
  • Bending speeds 20% faster than competitive machines
  • Universal tooling set included with each machine – 7″ OD
  • Uses same tooling as CE50
  • Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
  • Heavy duty structure and rigid components for high section modulus ratings
  • Reinforced engineered mainframe design proven to outperform competitive models
  • Patented by Ercolina simultaneous downfeed and roll movement to minimize deformation
  • Touchpad controls with digital center roll positioning
  • Tie bar supports for each shaft
  • Hydraulic machine with memory storage has eight (8) individual programs and unlimited passes
  • Remote pendent with low voltage controls and foot pedal switch
  • Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
  • In-line direct drive roll shaft system 3-roll driven
  • All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.

Specifications

  • Capacities
    • Pipe (Max.): 3″ Sch. 10
    • Angle (Max.): 2-1/2″ x 2-1/2″ x 3/8”
    • Tube (Max.): 3-1/2” – 0.120 wall
  • Roll Shaft Diameter: 50 mm
  • Center Roll Positioning: Hydraulic - 16.5 Tons
  • Shaft Speed: 9 RPM
  • Universal Tooling (Included): 7” O.D.
  • Programming: NC – Touchpad
  • Number of Programs: 8
  • Distance between Shafts: 15”
  • Operating Voltage: 480V 3ph
  • Weight: 1,480 lbs.
  • Dimensions (L x W x H): 48” x 29” x 52”

Tooling Included

  • Pipe
    • Profile Dimensions: ¾”
      • Min CLR: 8”
      • Wall: 0.113
    • Profile Dimensions: 2”
      • Min CLR: 14”
      • Wall: 0.154
    • Profile Dimensions: 3”
      • Min CLR: 30”
      • Wall: 0.120
  • Tube
    • Profile Dimensions: 1”
      • Min CLR: 6”
      • Wall: 0.120
    • Profile Dimensions: 2½”
      • Min CLR: 21”
      • Wall: 0.203
    • Profile Dimensions: 3½”
      • Min CLR: 30”
      • Wall: 0.187
  • Square Tube
    • Profile Dimensions: ¾” x ¾”
      • Min CLR: 6”
      • Wall: 0.083
    • Profile Dimensions: 2” x 2”
      • Min CLR: 18”
      • Wall: 0.120
    • Profile Dimensions: 2½” x 2½”
      • Min CLR: 30”
      • Wall: 0.216
  • Rectangular Tube (Hard Way)
    • Profile Dimensions: ½” x 1”
      • Min CLR: 6”
      • Wall: 0.083
    • Profile Dimensions: 1½” x 2½”
      • Min CLR: 18”
      • Wall” 0.120
    • Profile Dimensions: 1½” x 4”
      • Min CLR: 36”
      • Wall: 0.187
  • Rectangular Tube (Easy Way)
    • Profile Dimensions: 1¼” x ½”
      • Min CLR: 6”
      • Wall: 0.083
    • Profile Dimensions: 2½” x 1½”
      • Min CLR: 24”
      • Wall: 0.120
    • Profile Dimensions: 4” x 1½”
      • Min CLR: 60”
      • Wall: 0.187
  • Round Solid
    • Profile Dimensions: 1”
      • Min CLR: 8” (special tooling required)
    • Profile Dimensions: 1¾”
      • Min CLR: 16”
  • Square Solid
    • Profile Dimensions: ¾″
      • Min CLR: 4” (special tooling required)
    • Profile Dimensions: 1¼”
      • Min CLR: 10”
    • Profile Dimensions: 1¾”
      • Min CLR: 20”
  • Rectangular Solid (Hard Way)
    • Profile Dimensions: ⅜″ x ¾″
      • Min CLR: 6” (special tooling required)
    • Profile Dimensions: ½” x 2”
      • Min CLR: 8”
    • Profile Dimensions: ¾” x 3”
      • Min CLR: 40”
  • Rectangular Solid (Easy Way)
    • Profile Dimensions: 2” x ½”
      • Min CLR: 8”
    • Profile Dimensions: 4” x ¾”
      • Min CLR: 16”
  • Angle “Leg Out”
    • Profile Dimensions: 1” x 1”
      • Min CLR: 12”
      • Wall: 0.156
    • Profile Dimensions: 2” x 2”
      • Min CLR: 20”
      • Wall: 0.236
    • Profile Dimensions: 2½” x 2½”
      • Min CLR: 26”
      • Wall: 0.236
  • Angle “Leg In”
    • Profile Dimensions: 1” x 1”
      • Min CLR: 14”
      • Wall: 0.156
    • Profile Dimensions: 2” x 2”
      • Min CLR: 28”
      • Wall: 0.236
    • Profile Dimensions: 2½” x 2½”
      • Min CLR: 36”
      • Wall: 0.236
  • C “Leg Out”
    • Profile Dimensions: 1½” x ¾”
      • Min CLR: 10”
      • Wall: 0.156
    • Profile Dimensions: 3⅛″ x 1″
      • Min CLR: 18”
      • Wall: 0.236
  • C “Leg In”
    • Profile Dimensions: 1½″ x ¾″
      • Min CLR: 10”
      • Wall: 0.203
    • Profile Dimensions: 4” x 1½”
      • Min CLR: 18”
      • Wall: 0.236

Options

  • Anti-twist correction system for angle iron “Leg In” applications
  • Spray Bending Lubricant
  • Pipe & Tube Tooling
  • Large Spiral Bending Accessory
  • Radius & Degree Measuring Kit
  • Fabricator’s Measuring Set
  • Scroll Curling Device
Manufacturer
SKU
CE60H3 (480V)
Shipping Method
LTL Freight
Weight
1,580 lb
Dimensions
53 × 34 × 57 in
Country of Origin
Italy
Warranty
1 Year
(Parts)
