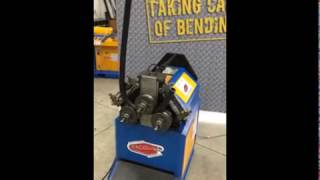

Ercolina 220V Three Phase Hydraulic Positioning Angle Roll Bender with 2½” Pipe Bending Capacity and Universal Tooling CE50H3
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
CE50H3 (220V)
|
4737
|
- Pipe Capacity (max): 2½” Sch. 40
- Angle Capacity (max): 2½” x 2½” x ¼”
- Roll Shaft Diameter: 50mm
- Hydraulic Positioning with 3 Roll Drive
Description
Ercolina’s CE50H3 angle roll model offers hydraulic center roll positioning.
Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, Ercolina machines will increase profit, as well as improve product quality and finish.
Features
- Bending speeds 20% faster than competitive machines
- Universal tooling set included with each machine
- Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
- Roll shafts supported with conical steel bearings on each side of A Frame
- Heavy duty structure and rigid components for high section modulus ratings
- Reinforced engineered mainframe design proven to outperform competitive models
- In-line direct drive roll shaft system 3-roll driven
- Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
- Touchpad controls with digital center roll positioning
- Control tower with low voltage controls and foot pedal
- Hydraulic machine with memory storage has eight (8) individual programs and unlimited passes
- Patented by Ercolina, simultaneous downfeed and roll movement minimizes deformation
Specifications
- Pipe Capacity (max): 2½” Sch. 40
- Angle Capacity (max): 2½” x 2½” x ¼”
- Tube Capacity (max): 3” (0.095 wall)
- Roll Shaft Diameter: 50mm
- Center Roll Positioning: Hydraulic / 10 Tons
- Shaft Speed: 9 RPM
- Universal Tooling (Included): 7” OD
- Programming: NC – Touchpad
- Number of Programs: 8
- Distance between Shafts: 11⅞″
- Operating Voltage: 220V Three Phase
- Dimensions (LxWxH): 45” x 29” x 52”
- Weight: 1100 lbs
Tooling Included
- Pipe
- Profile Dimensions: ¾”
- Min CLR: 8”
- Wall: 0.113
- Profile Dimensions: 2”
- Min CLR: 14”
- Wall: 0.154
- Profile Dimensions: 2½”
- Min CLR: 18”
- Wall: 0.203
- Profile Dimensions: ¾”
- Tube
- Profile Dimensions: 1”
- Min CLR: 6”
- Wall: 0.120
- Profile Dimensions: 2½”
- Min CLR: 18”
- Wall: 0.120
- Profile Dimensions: 3”
- Min CLR: 24”
- Wall: 0.120
- Profile Dimensions: 1”
- Square Tube
- Profile Dimensions: ¾” x ¾”
- Min CLR: 6”
- Wall: 0.083
- Profile Dimensions: 2” x 2”
- Min CLR: 20”
- Wall: 0.120
- Profile Dimensions: 2½” x 2½”
- Min CLR: 30”
- Wall: 0.120
- Profile Dimensions: ¾” x ¾”
- Rectangular Tube (Hard Way)
- Profile Dimensions: ½” x 1”
- Min CLR: 8”
- Wall: 0.083
- Profile Dimensions: 1½” x 2½”
- Min CLR: 18”
- Wall: 0.120
- Profile Dimensions: 1½” x 3”
- Min CLR: 34”
- Wall: 0.120
- Profile Dimensions: ½” x 1”
- Rectangular Tube (Easy Way)
- Profile Dimensions: 1¼” x ½”
- Min CLR: 10”
- Wall: 0.083
- Profile Dimensions: 2½” x 1½”
- Min CLR: 24”
- Wall: 0.120
- Profile Dimensions: 3” x 1½”
- Min CLR: 32”
- Wall: 0.120
- Profile Dimensions: 1¼” x ½”
- Round Solid
- Profile Dimensions: ¾”
- Min CLR: 4” (special tooling required)
- Profile Dimensions: 1½”
- Min CLR: 14”
- Profile Dimensions: ¾”
- Square Solid
- Profile Dimensions: ¾”
- Min CLR: 4” (special tooling required)
- Profile Dimensions: 1¼”
- Min CLR: 10”
- Profile Dimensions: 1½”
- Min CLR: 6”
- Profile Dimensions: ¾”
- Rectangular Solid (Hard Way)
- Profile Dimensions: ⅜″ x ¾″
- Min CLR: 6” (special tooling required)
- Profile Dimensions: ½” x 2”
- Min CLR: 10”
- Profile Dimensions: ½” x 2½”
- Min CLR: 18”
- Profile Dimensions: ⅜″ x ¾″
- Rectangular Solid (Easy Way)
- Profile Dimensions: 2” x ½”
- Min CLR: 8”
- Profile Dimensions: 4” x ½”
- Min CLR: 12”
- Profile Dimensions: 2” x ½”
- Angle “Leg Out”
- Profile Dimensions: 1” x 1”
- Min CLR: 8”
- Wall: 0.120
- Profile Dimensions: 2” x 2”
- Min CLR: 16”
- Wall: 0.187
- Profile Dimensions: 2½” x 2 ½”
- Min CLR: 20”
- Wall: 0.187
- Profile Dimensions: 1” x 1”
- Angle “Leg In”
- Profile Dimensions: 1” x 1”
- Min CLR: 12”
- Wall: 0.120
- Profile Dimensions: 2” x 2”
- Min CLR: 24”
- Wall: 0.236
- Profile Dimensions: 2½” x 2 ½”
- Min CLR: 32”
- Wall: 0.236
- Profile Dimensions: 1” x 1”
- C “Leg Out”
- Profile Dimensions: 1¼” x ½”
- Min CLR: 10”
- Wall: 0.120
- Profile Dimensions: 3” x 1½”
- Min CLR: 16”
- Wall: 0.187
- Profile Dimensions: 1¼” x ½”
- C “Leg In”
- Profile Dimensions: 1½” x ¾”
- Min CLR: 10”
- Wall: 0.187
- Profile Dimensions: 3” x 1½”
- Min CLR: 16
- Wall: 0.187
- Profile Dimensions: 1½” x ¾”
Options
- Anti-twist correction system required for angle iron “Leg In” applications
- Small Radius Tooling (C5RR)
- Fabricator’s measuring set (KARC)
Manufacturer | |
SKU |
CE50H3 (220V)
|
Shipping Method |
LTL Freight
|
Weight |
1,100 lb
|
Dimensions |
45 × 29 × 52 in
|
Country of Origin |
Italy
|
