Ercolina 3.5HP 220V Three Phase 25 Ton Era Horizontal Hydraulic Press EP25H2-V2
*Image may display optional items not included with purchase.
You might also be interested in...
Manufacturer Part: | EMT ID: |
EP25H2-V2 (220V)
|
16823
|
- Hydraulic Force: 25 tons
- Tube Diameter Max. Expansion / Reduction: 3-1/2” x 0.120 (Tooling Dependent)
- Folding Capacity – Steel Flat Bar: 5” x 1/2”
- Working Speed: 1/2” – 1” sec.
Description
Ercolina’s EP25H2-V2 (25 ton hydraulic force) metalworking machine is a programmable tube and pipe swaging machine and metalworking press.
Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, their machines will increase profit, as well as improve product quality and finish.
Features

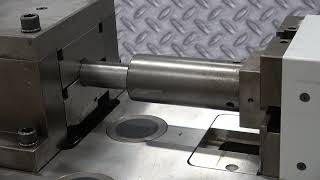

- Expands and reduces tube and pipe ends
- Performs metalworking press operations
- Tooling available for tube flaring & flanging
- Square and rectangular tooling available
- Programmable touchpad control with backlit LCD display
- Heavy duty structure and rigid components
- Adjustable working speed and hydraulic force
- Quick change modular tooling
- Remote pendent with low voltage controls
- Programmable cylinder positioning
- Hydraulic material clamping system
Standard Equipment
- Expansion/Reduction Holder
- Tube Expansion Tie Bar
- Prism Holder
- Straightening Supports
- Adjustable Stop
Specifications
- Tube Diameter Max. Expansion / Reduction: 3-1/2” x 0.120 (Tooling Dependent)
- Folding Capacity – Steel Flat Bar: 5” x 1/2”
- Working Speed: 1/2” – 1” sec.
- Programming: Touchpad
- Hydraulic Force: 25 tons
- Horizontal Press: Yes
- Maximum Stroke of Cylinder: 6-5/8”
- Maximum Swage Depth*: 6”
- Voltage Requirement: 220V 3ph
- Motor: 3.5 HP 50-60Hz
- Motor Speed: 3650 RPM
- Dimensions (L x W x H): 41” x 29.5” x 48”
- Shipping Weight: 1,675 lbs.
* Swage depth greater than 4½″ requires special tooling – must be specified at time of order.
Manufacturer | |
SKU |
EP25H2-V2 (220V)
|
Shipping Method |
LTL Freight
|
Weight |
1,775 lb
|
Dimensions |
46 × 35 × 53 in
|
Country of Origin |
Italy
|
Warranty |
1 Year
|
