Manufacturer Part: | EMT ID: |
BA9-1006855
|
243
|
- Inverter Driven
- Variable Speed
- Vertical And Horizontal Bending
- Foot Pedal Controlled

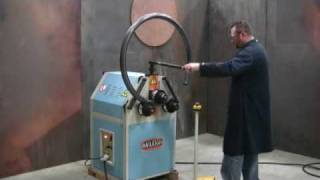

The R-M55 has been the flagship in the Baileigh Industrial roll bender line since its introduction. It has a 2" Schedule 40 pipe capacity, which is impressive for a manual top shaft two driven roll machine. To achieve this type of capacity, the R-M55 uses a variable speed inverter that is overload protected, this allows the operator to fine tune the rolling speed for each material.
The R-M55 is versatile and can be used in any fabrication shop or even out in the field on job sites, it only requires 220 volts of single phase power to operate. Another option is that it can be operated in both the vertical mode for small rolling projects, as well as in the horizontal mode for large rolling projects as there are feet on the bottom and back of the machine.
The R-M55 ring roller comes standard with foot pedal controls, segment rolls, and lateral roll guides to keep the material from twisting during the bend. The top roll position is manually controlled with the use of a large ratchet for more leverage and the position is indicated on a scale for repeatable bends every time. Optional rolls can be purchased for different profiles like tubing, pipe, angle iron and much more.
Specification
Pipe Capacity | 2" (sch.40) / Min. Dia. 40" |
Round Table Capacity | 2.75" (.083") / Min. Dia. 60" |
Square Tube Capacity |
2" (.083") / Min. Dia.: 48" |
Solid Round Capacity | 1.375" / Min. Dia. 20" |
Flat Bar Easy Way | 4" (.5") / Min. Dia. 20" |
Flar Bar Hard Way | 2.25" (.75") / Min. Dia. 20" |
Shaft Diameter | 1.968" |
Shaft Center Distance | 13.12" |
Roll Adjustment | Manual |
Lower Roll Dia. | 5.827" |
Pinch | Single |
Angle iron Capacity | 2" (.250") / Min. Dia 28" |
Power | 220V Single Phase |
Shipping Weight | 925lbs |
Shipping Dimensions | 60"x44"x68" |
*All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.*
Manufacturer | |
SKU |
BA9-1006855
|
UPC |
19907415770
|
Shipping Method |
LTL Freight
|
Weight |
650 lb
|
Dimensions |
60 × 44 × 68 in
|
Country of Origin |
Portugal
|
