Manufacturer Part: | EMT ID: |
BA9-1020029
|
678
|
- 110/220V 1 PH (Prewired 110V)
- 1.75 Horse Power
- Maximum Rip Cut (Right) 36"
- 4000 RPM

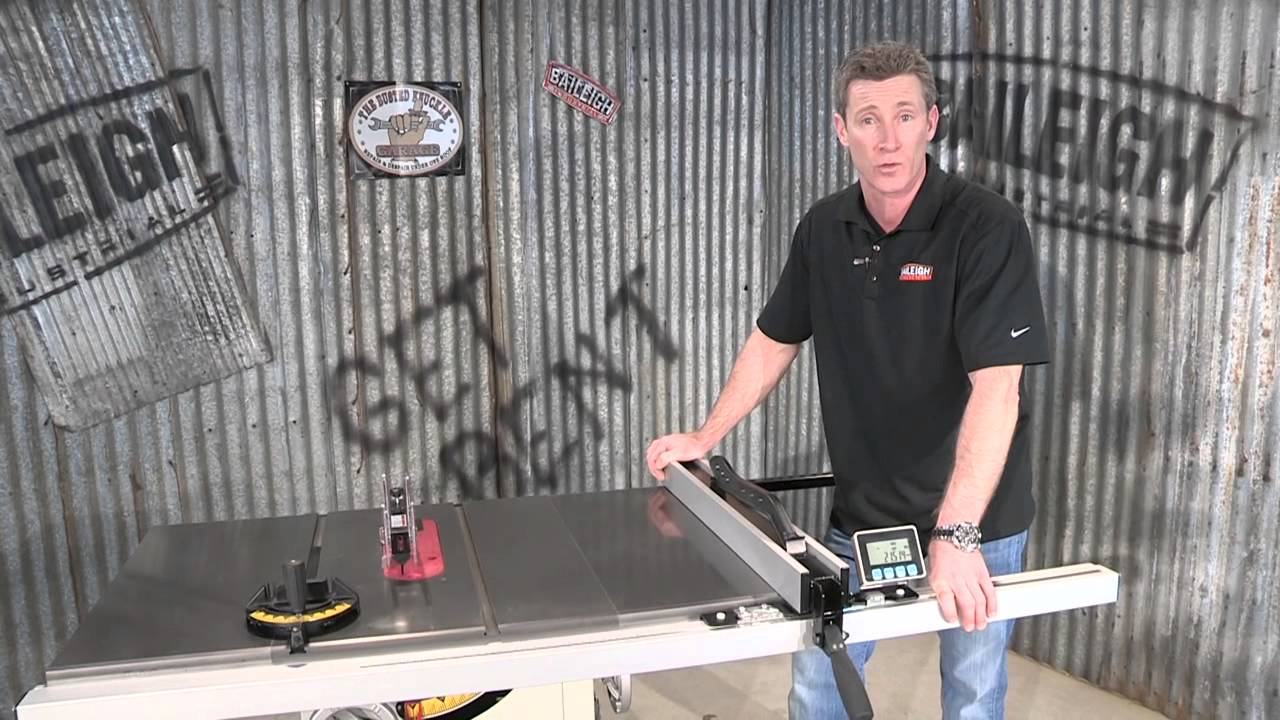

Trying to figure out if you need a cabinet saw or just a contractor style saw? Well Baileigh Industrial might just have the answer for you, the TS-1044H 10" hybrid table saw is the best of both worlds. The voltage and mobility of a contractor saw, with the structure and accuracy of a good cabinet saw. The TS-1044H has a 1.75 hp motor that can be run on either 110 or 220 volt single phase power and turns at 4000 rpm. Since the voltage is selectable the TS-1044H hybrid saw will work in just about any shop home or professional. The TS-1044H has an enormous 44" x 27" all machined cast iron table. Another unique feature of the TS-1044H is the heavy duty rip fence that incorporates a digital readout for rip capacity. Just “zero" the DRO at the blade and away you go. No second guessing the length of cut. Other standard features to the TS-1044H are; miter gauge, zero clearance table inserts, deluxe rip fence and 4" dust collection port.
Dust Collection Port | 4" |
Table Size(Length) | 20" |
Table Size (Width) | 27" |
Table Saw Working Table | 44"x27" |
Table Saw Blade Diameter | 10" |
Table Saw RPM | 4000 |
Table Saw Arbor | 5/8" |
Table Saw Cutting Height @ 90° | 3-1/8" |
Table Saw Cutting Height @ 45° | 2-1/8" |
Maximum Dado Diameter | 8" |
Maximum Dado Width | 13/16" |
Maximum Rip Cut (Right) | 36" |
Power | 110/220V 1 PH (prewire 110V) |
Length | 48" |
Width | 29" |
Height | 37" |
Horse Power | 1.75 |
Weight (lbs) | 260 |
Manufacturer | |
SKU |
BA9-1020029
|
UPC |
19907408611
|
Shipping Method |
LTL Freight
|
Weight |
425 lb
|
Dimensions |
48 × 29 × 37 in
|
Country of Origin |
Taiwan
|
